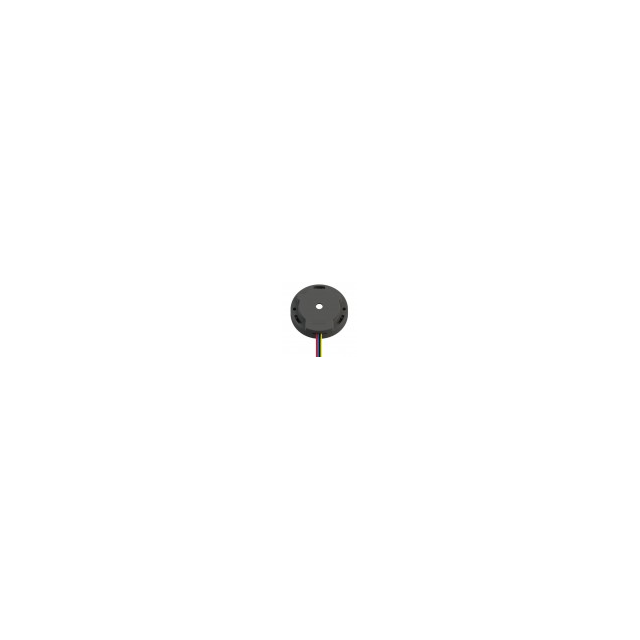

Phoenix America H9-0500-0315-05-A-Y-A-F-A-X
- Part Number:
H9-0500-0315-05-A-Y-A-F-A-X
- Manufacturer:
- Category:
- RoHs:
RoHS Compliant - Datasheet:
H9-0500-0315-05-A-Y-A-F-A-X_Datesheet - Description:
NON-UNIVERSAL HUB ENCODER KIT
- In stock 35
DESCRIPTION
· H9 Series Incremental Magnetic Encoder by Phoenix America, LLC.
· Utilizes magnetic technology for robust performance.
· Designed for easy alignment and installation with a two-piece system.
FEATURES
· 100% non-contacting design ensures long life and durability in harsh environments.
· Bi-directional two-channel incremental quadrature output with optional differential RS422 compatibility.
· Mounting holes for a 2-bolt pattern, 1.811” BHC x 0.125” O.D.
· Customizable lead wires, cables, and connectors available.
· Pulse options range from 32 to 2500 per channel per revolution.
APPLICATIONS
· Suitable for standard shaft sizes from 2 mm to 1/2”, with custom bore sizes available.
· Example application includes motor integration with optional shaft pass-through hole for axial shaft extension.
· Enclosed cover option available for additional protection.
