Description of Between Series Adapters

Between Series Adapters are electronic connector accessories used for interfacing and converting between different series or standards of connectors. They can be board-to-board connectors, wire-to-board connectors, or other types of connectors. Between Series Adapters allow designers to flexibly transition between different design standards while maintaining electrical performance.

Between Series Adapters

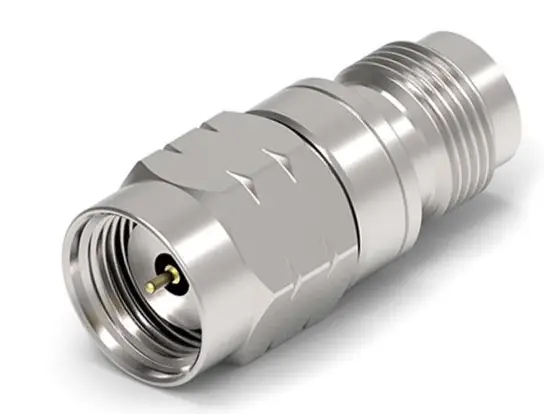

Between series adapters are specialized components used to connect two different types of connectors, typically from different connector series, in electronic and RF (radio frequency) applications. Here’s a detailed explanation:

Key Features of Between Series Adapters:

1. Connector Compatibility:These adapters have different connector types on each end, allowing devices with incompatible connectors to be connected. For example, one side may have an SMA connector, while the other may have a BNC or N-type connector.
2. Variety of Types:They are available for a wide range of connector types, such as coaxial, RF, audio, or data connectors, ensuring compatibility across many systems.
3. Precision Construction:Between series adapters are made with high-quality materials (like stainless steel, brass, or plated metals) to ensure durability, corrosion resistance, and reliable performance, especially in RF and high-frequency applications.
4. Signal Integrity:They are designed to minimize signal loss, interference, or impedance mismatches when converting between connector types, ensuring smooth signal transmission.
5. Gender Variations:Adapters can also come in male-to-female, male-to-male, or female-to-female configurations, providing flexibility based on connection requirements.

Functions of Between Series Adapters:

• Connector Conversion: The primary function is to enable devices or cables with different connector series to connect seamlessly, solving compatibility issues without replacing cables or equipment.
• Signal Transmission: They ensure that signals, such as RF, audio, or data, are transmitted properly between different types of connectors, maintaining signal integrity and performance.
• System Flexibility: By allowing the connection of different connector types, these adapters increase the versatility of electronic systems, making it easier to integrate diverse components without requiring complete system overhauls.

Applications:

Between series adapters are commonly used in:

• Telecommunications: To connect different types of RF connectors in network and antenna systems.
• Testing and Measurement: In labs and testing environments where equipment may have varying connector types, adapters make it easy to connect instruments and devices.
• Broadcasting and Audio Systems: Adapters are used to connect different types of audio or video equipment.
• Industrial and Military Applications: They are often found in rugged environments where connecting different connector types is critical for system integration.

Summary:

Between series adapters are essential components for bridging the gap between different connector types. They offer a practical and efficient solution for connecting incompatible systems without sacrificing signal quality, making them invaluable in various industries, from telecommunications to testing environments.
