Description of FFC, FPC (Flat Flexible) Connector Assemblies

"FFC, FPC (Flat Flexible) Connector Assemblies" refer to connector assemblies for flat flexible cables (or soft boards), including both FFC (Flexible Flat Cable) and FPC (Flexible Printed Circuit) connectors. They are designed to offer high flexibility and compact space adaptability, commonly used in electronic devices that require frequent bending or wiring in confined spaces. FFC/FPC connector assemblies are widely used in portable electronics, automotive electronics, medical devices, and other fields due to their thin design, ease of assembly, and high reliability.

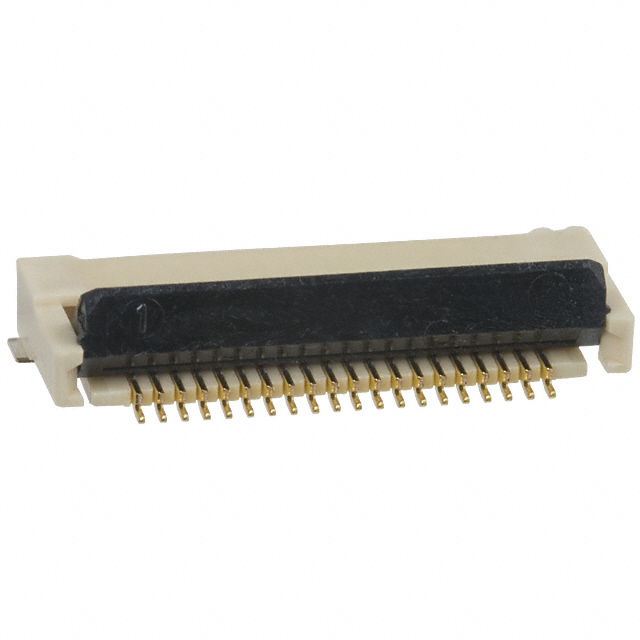

FFC, FPC (Flat Flexible) Connector Assemblies

FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connector assemblies are specialized connectors designed for use with flexible cables and circuits. These assemblies are commonly used in applications where space is limited and where flexibility is essential, such as in consumer electronics, automotive systems, and medical devices.

Key Features:

1. Design:FFC connectors are designed for flat cables that consist of multiple conductors arranged in a flat configuration. They typically feature a simple locking mechanism to secure the cable in place.FPC connectors are used with flexible printed circuits, which are often single or double-sided circuits that can bend and twist. These connectors usually include a unique mechanism to ensure a reliable connection while accommodating movement.
2. Space Efficiency: Both types of connectors are compact, making them ideal for devices where space-saving is crucial.
3. Flexibility: The flexible nature of FFC and FPC allows for dynamic movement without compromising the integrity of the connections, making them suitable for applications with motion or vibration.
4. Ease of Use: Many FFC and FPC connector assemblies are designed for straightforward insertion and removal, facilitating easy assembly and maintenance.

Applications:

• Consumer Electronics: Commonly found in laptops, smartphones, and tablets, where space constraints and flexibility are essential.
• Automotive: Used in dashboard displays, infotainment systems, and other electronic components that require flexible connections.
• Medical Devices: Employed in equipment that requires compact and flexible wiring solutions for portability and ease of use.

Summary:

FFC and FPC connector assemblies are crucial for modern electronics, providing reliable and flexible connections in compact designs. Their unique features enable them to meet the demands of various applications, ensuring efficient power and signal transmission in limited spaces.
