Model Information for 5001

Basic Information

• Model Number: 5001
• Series: THM (Thru Hole Mount Test Points)
• Type: Compact Color Keyed Test Point
• Compliance: RoHS Compliant, ISO 9001 Certified

Product Description

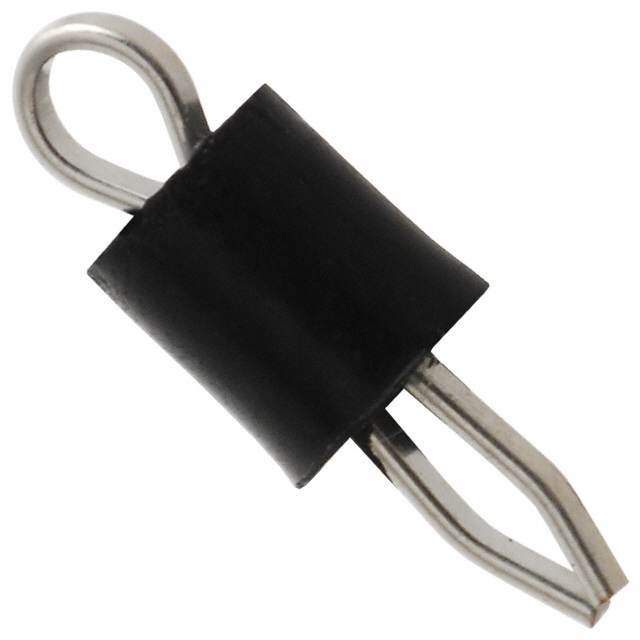

The 5001 is a compact, color-keyed test point designed for thru-hole mounting on printed circuit boards. It features a snap-fit design for secure retention during wave soldering and is ideal for high-density packaging on .062 (1.57 mm) and .093 (2.36 mm) thick PC boards. The test point is made from high-temperature nylon and is suitable for reflow soldering processes.

Specifications

• Terminal:Material: Phosphor BronzeDimensions: .010 (.25 mm) × .020 (.51 mm)Plating: Silver Plate
• Base:Material: Nylon 46UL Rating: 94V-0
• Mounting Hole:Diameter: .040 (1.0 mm)
• Dimensions:Height: .350 [8.9 mm]Diameter: .125 [3.2 mm]Inner Diameter: .070 [1.80 mm]

Features

• Color Keyed: For visibility and quick identification
• Economical Choice: For PC test point terminations
• Snap-Fit Mounting: Provides positive retention for wave soldering
• Wire Form Loop: For safe, non-slip testing
• Space Saving: Ultra-low and low profile designs
• High Profile Design: For difficult-to-reach applications
• Secure Grip: For J hooks, EZ hooks, grabbers, alligator clips, tips, or probes
• High Temperature Nylon Base: Ideal for reflow soldering
• Ideal for: Reliable production testing and field service troubleshooting

Applications

• High-Density Packaging: Suitable for .062 (1.57 mm) and .093 (2.36 mm) thick PC boards
• Replacement for Wire-Wrap Posts and Turrets: Practical alternative
• Production Testing and Field Service Troubleshooting: Reliable and secure

Ordering Information

• Catalog Number: 5001
• Color: Black

Documentation

• Document Status: RoHS Compliant, ISO 9001 Certified
• product is designed to meet the needs of high-density packaging and reliable testing in various electronic applications. The compact and color-keyed design ensures quick identification and secure mounting.
