DESCRIPTION

· The AAT3681A is a single-cell lithium-ion/polymer battery charger IC.

· It operates from a DC power source or USB port with an input voltage up to 7.5V.

· It regulates battery charge voltage and current for 4.2V (4.375V option) cells.

· Charging current can be set up to 500mA via an external resistor.

· It monitors battery charge state and shuts down in case of over-voltage, short-circuit, or over-temperature.

· It features a status monitor output pin for LED indication.

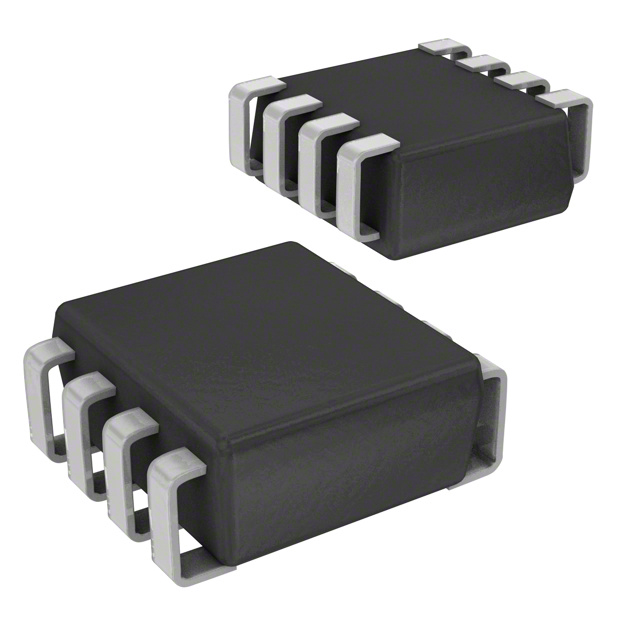

· Available in an 8-pin SC70JW package, operating from -40°C to +85°C.

FEATURES

· USB or AC adapter system power charger with programmable current from 15mA to 500mA.

· Input voltage range of 4.0V to 7.5V.

· High integration with internal charging device and reverse blocking diode.

· Constant regulated output voltage options: 4.1V or 4.2V.

· Automatic current sensing and recharge sequencing.

· Full battery charge auto turn off, sleep mode, and charge termination.

· Shutdown current less than 1µA.

· Automatic trickle charge for battery pre-conditioning (except AAT3681A-1/AAT3681A-4).

· Over-voltage and emergency thermal protection.

· Power on reset and soft start.

· LED status pin.

· Compact 8-pin SC70JW package.

APPLICATIONS

· Bluetooth® headsets.

· DECT headsets.

· Digital still cameras.

· MP3, portable music, and portable media players.

· Personal Data Assistants (PDAs).

· Wrist watches.

· Other lithium-ion/polymer battery-powered devices.
