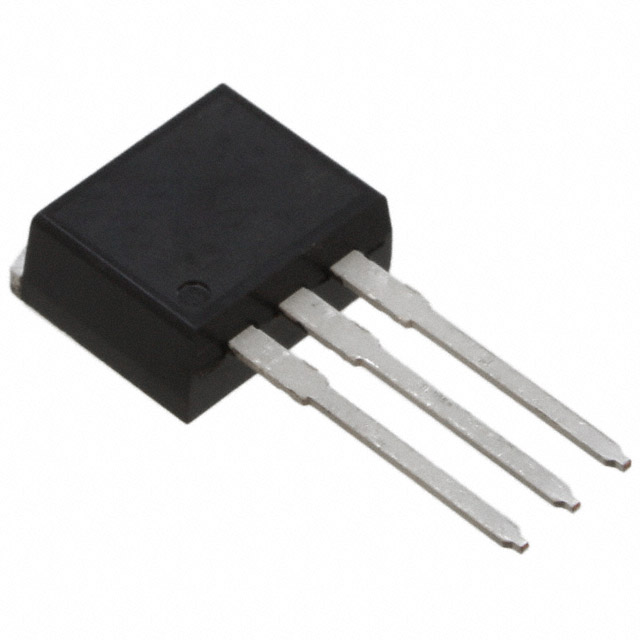

onsemi FDI2532

View All Single FETs, MOSFETs by onsemi

Part Number:
FDI2532
Manufacturer:
onsemi
Category:
Single FETs, MOSFETs
RoHs:
Non-RoHS Compliant
Datasheet:
FDI2532_Datesheet
Description:
MOSFET N-CH 150V 8A/79A I2PAK
In stock 0

" Not available to buy online? Want the lower wholesale price? Please send RFQ, we will respond immediately

Leave Us A Message!

[email protected]

We`re not around but we still want to hear from you! Leave us a note:

SEND

*You can contact us directly on WhatsApp!

Specifications

Type

Paramete

Type

Paramete

Operating Temperature

-55°C ~ 175°C (TJ)

Gate Charge (Qg) (Max) @ Vgs

107 nC @ 10 V

Package / Case

TO-262-3 Long Leads, I2PAK, TO-262AA

Qualification

Current - Continuous Drain (Id) @ 25°C

8A (Ta), 79A (Tc)

Drain to Source Voltage (Vdss)

150 V

FET Type

N-Channel

Input Capacitance (Ciss) (Max) @ Vds

5870 pF @ 25 V

Technology

MOSFET (Metal Oxide)

Power Dissipation (Max)

310W (Tc)

Rds On (Max) @ Id, Vgs

16mOhm @ 33A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Vgs (Max)

±20V

FET Feature

Mounting Type

Through Hole

Supplier Device Package

TO-262 (I2PAK)

Drive Voltage (Max Rds On, Min Rds On)

6V, 10V

Grade

Overview

DESCRIPTION

· N-Channel PowerTrench® MOSFET with 150V, 79A, 16mΩ specifications.

FEATURES

· Low rDS(ON) of 14mΩ at VGS = 10V, ID = 33A.

· Total gate charge Qg(tot) = 82nC at VGS = 10V.

· Features low Miller charge and low QRR body diode.

· Capable of UIS (Single Pulse and Repetitive Pulse).

· Qualified to AEC Q101 standards.

APPLICATIONS

· Suitable for DC/DC converters and Off-Line UPS systems.

· Used in Distributed Power Architectures and VRMs.

· Acts as a primary switch for 24V and 48V systems.

· Functions as a high voltage synchronous rectifier.

· Applicable in Direct Injection / Diesel Injection Systems.

· Controls 42V automotive loads and electronic valve train systems.
