DESCRIPTION

· The MAX13487E/MAX13488E are +5V, half-duplex, ±15kV ESD-protected RS-485-compatible transceivers with one driver and one receiver.
· They feature hot-swap capability to prevent false transitions during power-up or live insertion.
· Includes Maxim’s proprietary AutoDirection control, ideal for isolated RS-485 ports.
· MAX13487E has reduced slew-rate drivers for up to 500kbps, while MAX13488E supports up to 16Mbps.
· 1/4-unit load receiver input impedance allows up to 128 transceivers on the bus.

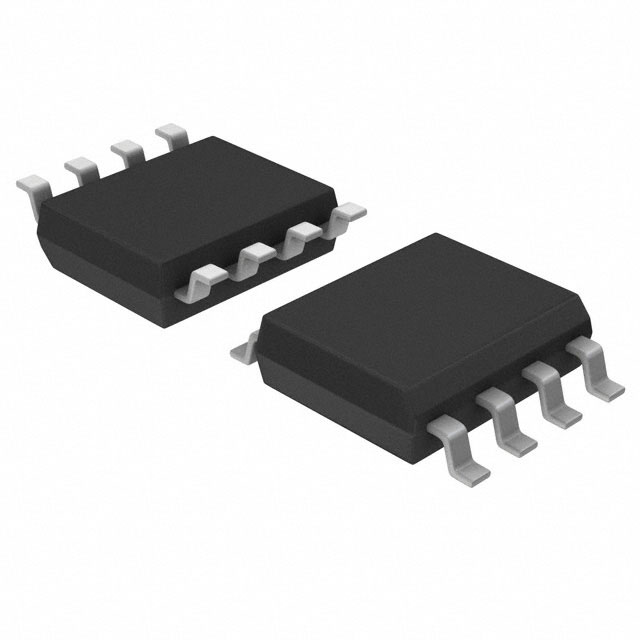

· Operates over -40°C to +85°C temperature range in an 8-pin SO package.

FEATURES

· Robust ±15kV ESD protection per JEDEC JS-001-2014.
· Hot-swap capability eliminates false transitions during power-up or live insertion.
· AutoDirection feature reduces PCB space and BOM cost by eliminating one isolator.
· Data rate options: 500kbps (MAX13487E) with enhanced slew-rate limiting, 16Mbps (MAX13488E) with max receiver propagation delay of 80ns.
· Low shutdown current of 10μA (max) for power savings.
· Standard 8-pin SO package for easy upgrade of non-ESD devices.
· 1/4-unit load allows up to 128 transceivers on the bus.

APPLICATIONS

· Isolated RS-485 Interfaces.
· Utility Meters.
· Industrial Controls.
· Industrial Motor Drives.
· Automated HVAC Systems.
