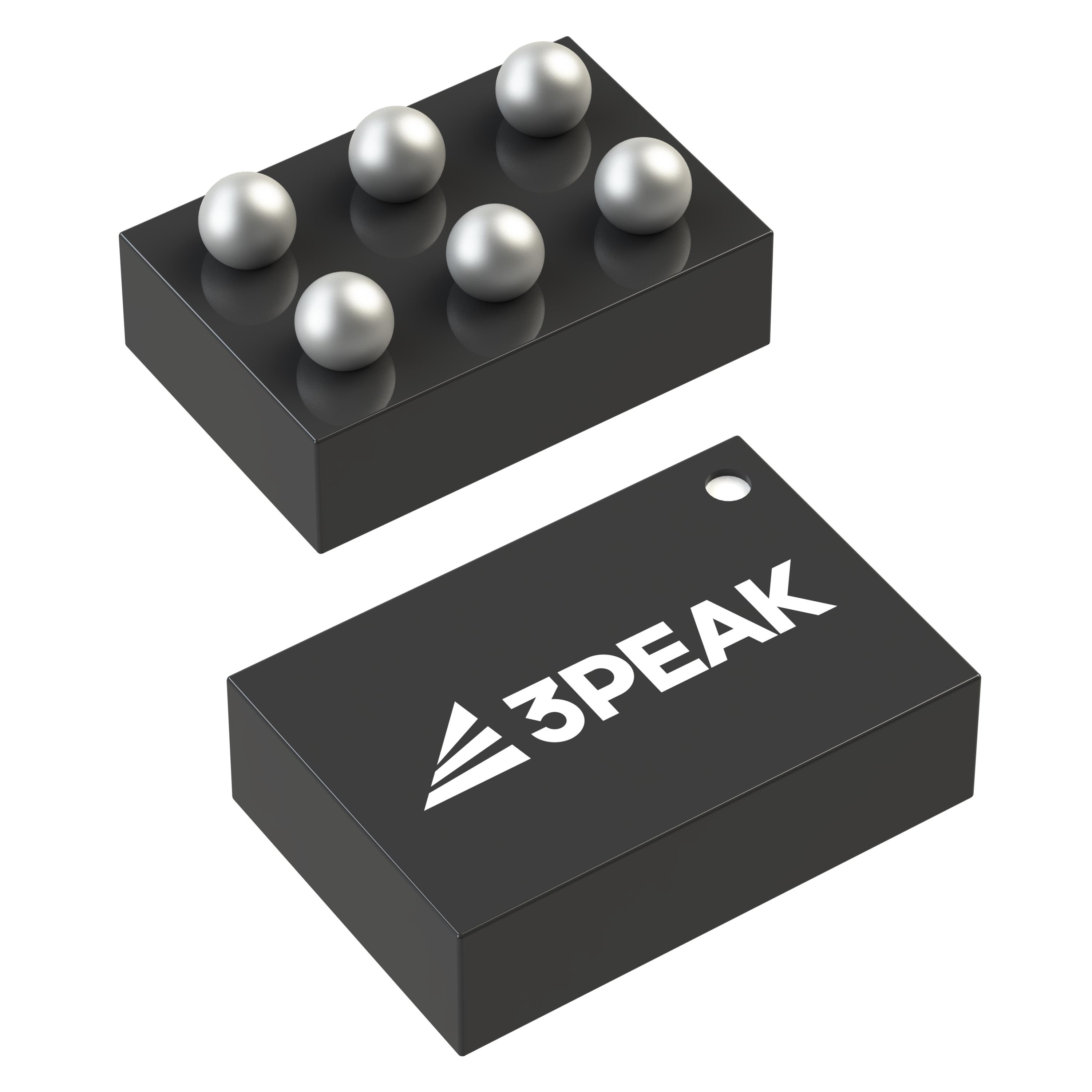

Name: TPQ051007-WS4R
Brand: 3PEAK
SKU: JM-TPQ051007-WS4R
Availability: InStock

3PEAK TPQ051007-WS4R

View All Voltage Regulators - DC DC Switching Regulators by 3PEAK

Part Number:
TPQ051007-WS4R
Manufacturer:
3PEAK
Category:
Voltage Regulators - DC DC Switching Regulators
RoHs:
RoHS Compliant
Datasheet:
TPQ051007-WS4R_Datesheet
Description:
STEP-UP SYNCHRONOUS REGULATOR WL
In stock 0

" Not available to buy online? Want the lower wholesale price? Please send RFQ, we will respond immediately

Leave Us A Message!

[email protected]

We`re not around but we still want to hear from you! Leave us a note:

SEND

*You can contact us directly on WhatsApp!

Specifications

Type

Paramete

Type

Paramete

Frequency - Switching

Number of Outputs

Supplier Device Package

6-WLCSP (1.23x0.83)

Package / Case

6-UFBGA, WLCSP

Qualification

Voltage - Input (Min)

0.9V

Voltage - Output (Min/Fixed)

Function

Step-Up

Grade

Mounting Type

Surface Mount

Operating Temperature

-40°C ~ 125°C (TA)

Output Type

Fixed

Synchronous Rectifier

Yes

Voltage - Input (Max)

5.5V

Current - Output

600mA

Output Configuration

Positive

Topology

Boost

Voltage - Output (Max)

Overview

DESCRIPTION

· The TPQ05100x series are synchronous boost converters with ultra-low quiescent current (<260 nA).
· Supports input voltages from 0.9 V to 5.5 V, suitable for various battery types.
· Offers fixed (2.5 V to 5 V) and adjustable (2.5 V to 5.5 V) output voltage options.
· Features true-shutdown to eliminate leakage current, enhancing system efficiency.
· Includes down mode for regulated output and pass-through mode where output follows input.
· Available in DFN2X2-6 and WLCSP-6 packages.

FEATURES

· Ultra-low quiescent current: 260 nA at VOUT, 40 nA at VIN.
· Operates with input voltages from 0.9 V to 5.5 V.
· Adjustable output voltage range from 2.5 V to 5.5 V.
· Fixed output voltage versions available.
· Switch peak current limit typically at 0.8 A.
· Up to 96% efficiency from 10 mA to 300 mA load.
· True disconnection feature during shutdown.

APPLICATIONS

· Ideal for battery-powered devices and wearable technology.
· Suitable for fiber optical modules and IoT devices.
· Effective in battery-powered water and gas meters.
