Overview to CR1616 3V Battery

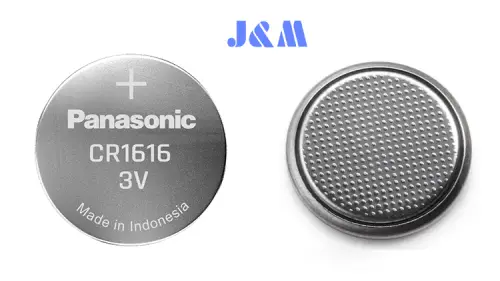

CR1616 Battery

So, the CR1616 is this little coin cell battery you often find in small electronics. It runs on 3 volts and is a lithium battery. You’ll see it in things like watches, calculators, and even some medical devices, like digital thermometers. The "CR" means it’s a lithium manganese dioxide battery, which means you can’t recharge it. And those numbers "1616"? They just tell you its size—16 mm wide and 1.6 mm thick.

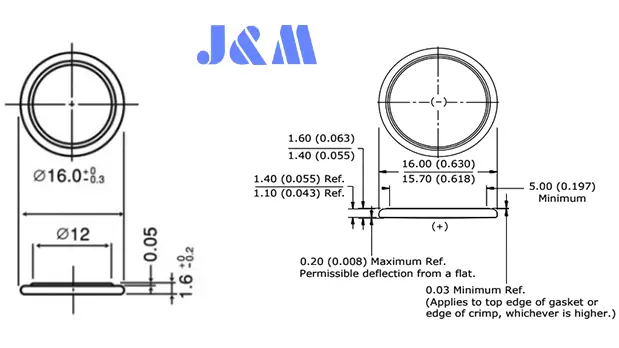

CR1616 Battery Dimension

The CR1616 battery measures 16 mm across and is 1.6 mm thick. Here’s a quick look at its size details:

CR1616 Dimension

CR1616 Parameters

Check out the table below for all the specifics on the CR1616 3-volt battery.

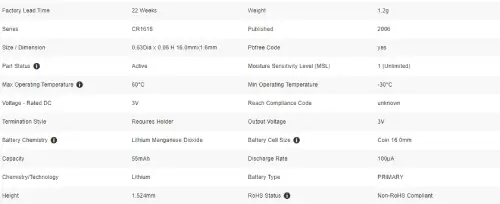

CR1616 Parameter Table

Applications of CR1616 Battery Equivalent

You’ll find the CR1616 in all sorts of gadgets—watches, calculators, remote controls, medical devices, LED lights, and even kids' toys. Just a heads up, if you’re using it in toys, make sure kids don’t accidentally swallow the battery!

CR1616 Battery Equivalent

The CR1616 is a small, coin-shaped lithium battery. If you need a replacement, you can look for equivalents like BR1616, LM1616, DL1616, ECR1616, DL 1616B, CR1616-1W, KCR1616, 5021LC, 280-209, L11, and L28. Here’s a little more info on those equivalents for when you can’t find the original!

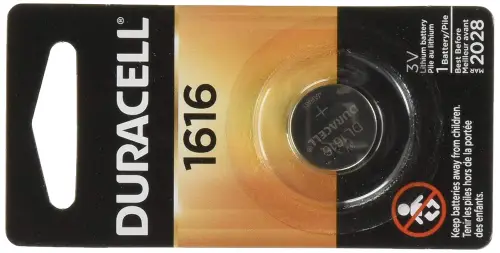

Duracell DL1616

Manufacturer: Duracell

Voltage: 3V

Chemistry: Lithium

Applications: DL1616 and CR1616 batteries are basically the same but just have different names. You’ll see DL1616 in things like calculators and car remote controls, and it’s usually interchangeable with the CR1616.

ECR1616

Manufacturer: Energizer

Voltage: 3V

Chemistry: Lithium

Applications: The ECR1616 and CR1616 might look a bit different depending on the brand, but they work the same size-wise and power-wise. You’ll find it in devices needing a 3V lithium battery, and it’s great for providing long-lasting power.

BR1616

Manufacturer: Panasonic

Voltage: 3V

Chemistry: Lithium

Applications: The BR1616 uses lithium carbon fluoride and is labeled with a "BR." It has a nominal voltage of 2.8 volts, which is a bit lower than the CR1616. They’re usually the same size, but since the BR1616 has a lower voltage, it’s meant for devices that need that specific level for the best performance.

280-209

Manufacturer: Generic or varies

Voltage: 3V

Chemistry: Lithium

Applications: This model number matches batteries with specs similar to the CR1616.

DL 1616B

Manufacturer: Duracell

Voltage: 3V

Chemistry: Lithium

Applications: This is a variation of the DL1616, maybe with some slight differences in capacity or designed for higher pulse demands.

CR1616-1W

Manufacturer: Various

Voltage: 3V

Chemistry: Lithium

Applications: This version has a welded tab for mounting on PCBs, perfect for compact electronic setups.

LM1616

Manufacturer: Maxell

Voltage: 3V

Chemistry: Lithium

Applications: Another equivalent battery, likely from a different maker, used for the same types of devices as the CR1616.

KCR1616

Manufacturer: Kodak

Voltage: 3V

Chemistry: Lithium

Applications: This is a specific brand version, different from CR1616 by the manufacturer, and works great for devices needing 3V in a compact size.

5021LC

Manufacturer: Generic or varies

Voltage: 3V

Chemistry: Lithium

Applications: This one matches other 3V lithium batteries and can be used in a variety of gadgets.

L11 and L28

Manufacturer: Generic or varies

Voltage: 3V

Chemistry: Lithium

Applications: These codes are used by some manufacturers to show batteries that have similar specs to the CR1616.

CR1616 Manufacturer

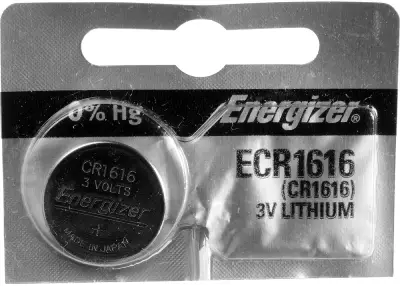

Energizer CR1616

Energizer 3V Lithium ECR1616 Battery

Energizer makes the ECR1616, which is basically the same as the CR1616. It’s known for lasting a long time and working well in different temperatures.

Duracell CR1616

Duracell produces the DL1616, which is a direct equivalent to the CR1616, perfect for similar uses.

Sony CR1616

Sony offers a solid lithium coin cell battery that matches the size and performance of the CR1616.

What is a replacement for a CR1616 battery?

You can use several batteries as replacements for the CR1616, like BR1616, DL1616, LM1616, ECR1616, DL 1616B, CR1616-1W, KCR1616, 5021LC, 280-209, L11, and L28, among others.

Is CR1616 the same as CR2032?

Well, they can be cross-compatible if a CR2032 fits in the spot for a CR1616, but that’s pretty rare.

Frequently Asked Questions

Is a CR1616 the same as a 2025?

Swapping a CR2025 for a CR1616 isn’t a good idea. They’re both coin cell batteries, but they’re different sizes. The CR2025 is thicker, so it probably won’t fit snugly in a device designed for the slimmer CR1616. Always stick to the manufacturer’s recommended battery size!

Can I replace a 1616 battery with a 1632?

Even though CR1620, CR1632, and CR1616 all have a 16.0 mm diameter and 3V voltage, their thickness and capacity are different, which means they’re not compatible with each other.

Can I use a 1620 battery instead of 1616?

Most battery compartments that fit a CR1620 can also take a CR1616, but it’s not a good idea to swap a CR1620 for a CR1616. The CR1616 has a lower capacity and can’t handle the same drain/pulse currents, which might make your device act up.

Is 2016 the same as CR1616?

Not at all! The CR1616 is 16 mm in diameter and 1.6 mm thick, while the CR2016 is 20 mm in diameter and also 1.6 mm thick. So, the CR2016 is just too wide to use in place of a CR1616.

What’s the lifespan of a CR1616 battery?

These little guys can hold power for up to 10 years—pretty much as fresh as they were when they rolled off the line! To avoid any power panic, it’s smart to stock up for emergencies without worrying about them losing juice while sitting around. Just keep them in a cool, dry spot, away from direct sunlight, to make sure they stay in tip-top shape!

Where are CR1616 batteries used?

You’ll find CR1616 batteries in all sorts of things: watches, computer motherboards, calculators, PDAs, electronic organizers, garage door openers, toys, games, door chimes, pet collars, LED lights, sporting goods, pedometers, calorie counters, stopwatches, and even medical devices.

What’s the difference between Panasonic CR1616 and CR1620?

The CR1616 has a capacity of about 50-55 mAh, while the CR1620 packs a bit more punch with a capacity of 65-80 mAh. That extra capacity means the CR1620 can deliver more energy throughout its life, making it a better fit for devices that need a little more juice or require a longer battery life.

How long does a CR1616 last?

These batteries are super popular in watches, calculators, and other small gadgets. The GP Ultra CR1616 can last up to 10 years on the shelf and provides around 420 hours of continuous power. They’re reliable and last a long time—perfect for a bunch of different devices!

Is a DL1616 battery the same as a CR1616?

Yep! The DL1616 is a small to medium-capacity battery that works in watches, medical devices, key fobs, and other low to medium-drain gadgets. It’s totally interchangeable with the CR1616. The internal chemistry of the DL1616 means you get more reliable power and a longer lifespan compared to regular batteries.
