Ceramic Capacitor

Passive electronic components like ceramic capacitors store and release electrical energy within circuits. In simple gadgets to complex systems, it plays a crucial role due to its reliability and versatility. They have unique electrical properties and high stability because ceramic material is used as the dielectric. Ceramic capacitors are essential in modern electronics, as their construction, composition, and many applications will be discussed in this guide.

What is a Ceramic Capacitor?

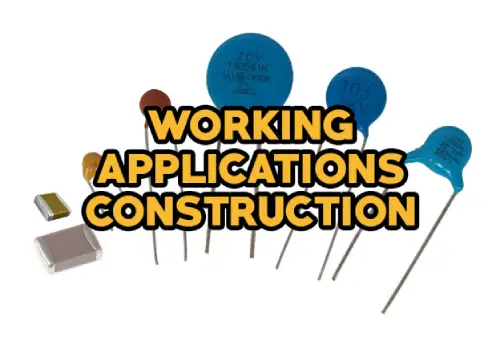

What is a Ceramic Capacitor

In ceramic capacitors, ceramic material is used as the dielectric between conductive plates, an insulating material. Small, inexpensive, and capable of storing and releasing electrical energy quickly, it is one of the most common types of capacitors. Different types of ceramic capacitors exist, such as multilayer ceramic capacitors (MLCCs), which have multiple layers of ceramic and metal to increase their capacitance, and disk ceramic capacitors. As a result of these devices, voltage fluctuations in electronic circuits are smoothed, signals are filtered, and energy is stored.

Over a wide range of temperatures and frequencies, ceramic capacitors are highly reliable and stable. The non-polarized nature of the wires makes them highly versatile, as they can be connected to a circuit in any direction. In high-voltage environments, they perform well due to their dielectric strength. These capacitors play a crucial role in many complex electronic systems, providing efficient energy management and signal filtering, as well as being commonly found in power supply systems, telecommunications, and automotive electronics. You can also check out CBB61 Capacitors.

Construction

There are three key components to the construction of a ceramic capacitor: the ceramic dielectric, the electrodes, and the leads or terminals. There are many applications for this simple and highly effective design. I'll break it down in detail here:

Ceramic Dielectric

A ceramic capacitor's dielectric material is a ceramic compound, which is its core. In addition to barium titanate, this ceramic material may contain other materials with high permittivity that help the capacitor store more charge. Capacitance and electrical properties of a capacitor are determined by the insulation between the two conductive plates. Multilayer ceramic capacitors (MLCCs) are ceramic capacitors composed of multiple layers, depending on the application.

Conductive Plates (Electrodes)

Silver, palladium, or copper are typically used as conductive metals on either side of the ceramic dielectric. A capacitor stores and releases electrical charge using these metal plates as electrodes. Stacking layers of ceramic and metal in multilayer ceramic capacitors increases total capacitance within a compact volume. There are external terminals connected to each layer, allowing energy to be transferred efficiently.

External Leads or Terminals

Usually, capacitors are connected to the rest of the circuit by their external leads or terminals that are attached to conductive plates. These capacitors can be mounted directly onto the surface of a circuit board by means of metal pads, known as the terminals. Terminals are soldered into place on larger, through-hole capacitors. They contribute to a reliable electrical connection between the capacitor and the circuit while also allowing it to store and release energy.

Applications

Signal Filtering

Especially in electronic circuits requiring noise or interference suppression, ceramic capacitors are extensively used in signal filtering applications. Capacitors block lower frequencies while allowing high-frequency noise to pass through them in both analog and digital circuits. The low resistance of ceramic capacitors makes them ideal for use in power supplies, audio systems, and communications systems. As a result of their small size and high performance, they ensure smooth operation of sensitive electronic components by maintaining signal clarity and reducing interference.

Decoupling and Bypass Capacitors

Additionally, ceramic capacitors can be used as bypass or decoupling capacitors. This capacitor stabilizes voltage levels and prevents unwanted fluctuations in the power supply by putting it between the power supply and ground. Consequently, ceramic capacitors can reduce spikes and dips in voltage that may harm sensitive components like microcontrollers. Computers, smartphones, and other high-speed digital circuits benefit from their low equivalent series resistance (ESR) and fast response times.

Energy Storage

Energy storage applications also rely heavily on ceramic capacitors. They are often used in circuits to store small amounts of charge that can be accessed quickly, even though they don't store as much energy as electrolytic capacitors. A quick release of stored energy is important in applications like memory backup systems, where data integrity must be maintained during brief power outages. In addition, they ensure precise operation of timing circuits, pulse generators, and clock circuits in electronic devices through their ability to store and release energy rapidly.

Tuning and Oscillator Circuits

An oscillator's tuning and oscillation frequency is maintained by ceramic capacitors. Radio-frequency circuits, for example, rely on them for precise signal tuning. In radios, televisions, and communication devices, ceramic capacitors are ideal tuning circuits because of their stability over a wide range of frequencies. A resonant frequency is set in RF systems by these components along with inductors.

Automotive Electronics

Despite high temperatures and harsh environmental conditions, ceramic capacitors are preferred in automotive electronics. Vehicles employ them in various systems, including engine control units, power distribution systems, and infotainment systems. Despite extreme conditions, modern vehicles are able to maintain reliable electronic performance thanks to their filters, voltage stabilizers, and decouplers. Ceramic capacitors are also space-efficient and durable, making them ideal for automotive applications that have limited space.

Medical Devices

Several medical devices use ceramic capacitors as well, where precision and reliability are crucial. Ceramic capacitors are used in devices such as pacemakers, defibrillators, and diagnostic equipment to stabilize voltage and filter signals. These life-critical applications require ceramic capacitors because of their high reliability and low failure rate. In medical technology, where consistent performance is essential, there is a need for non-polarized electrodes that are able to withstand fluctuations in temperature.

Working Principle

An electrical charge is stored by a ceramic capacitor when a voltage is applied across its terminals due to its dielectric material's ability to store electricity. Dielectrics separate two conductive plates in ceramic capacitors. According to fundamental capacitor theory, a capacitor accumulates positive charge when an electric charge is applied, while a capacitor accumulates negative charge when an electric charge is applied. Due to the ceramic dielectric, there is no direct electrical flow between the two plates. As a result, there is an electric field created between the two plates.

Charging Process

An electric charge builds up on the conductive plates of a ceramic capacitor when it is connected to a voltage source. Because ceramic dielectrics are insulators, current cannot flow through them, but electrostatic fields can develop between them. Surface area of the plates and distance between them determine how much charge can be stored in a capacitor. Due to the dielectric constant of the ceramic material and the size of the capacitor, the capacitance of a capacitor increases as the voltage across it rises.

Discharging Process

Ceramic capacitors dissipate electricity through a circuit when their voltage supply is removed. During brief power interruptions, the capacitor can supply stored energy or smooth voltage fluctuations. A ceramic capacitor's rapid charging and discharging capability makes them a good choice for signal filtering, decoupling, and timing circuit applications that require quick storage and release of energy.

They can be used in high-frequency applications and environments with variable conditions because ceramic capacitors provide stable capacitance over a wide range of frequencies and temperatures.

Wrapping Up

Ceramic capacitors are versatile, reliable, and cost-effective components that are indispensable in modern electronics. A wide range of applications, including consumer gadgets and automotive systems to medical devices and industrial equipment, depend on their ability to perform efficiently in high-frequency environments, provide voltage stabilization, and filter signals. Ceramic capacitors are preferred by engineers and designers looking to optimize the performance of electronic circuits due to their compact design, stable performance across temperatures, and rapid charging and discharging capabilities.
