What Is The DB9 Connector?

The DB9 connector is a widely used electrical connector and is part of the D-Subminiature family. The designation “DB9” indicates a specific connector type that features the smallest footprint among D-Subminiature connectors, accommodating 9 pins in the male variant and 9 holes in the female variant.

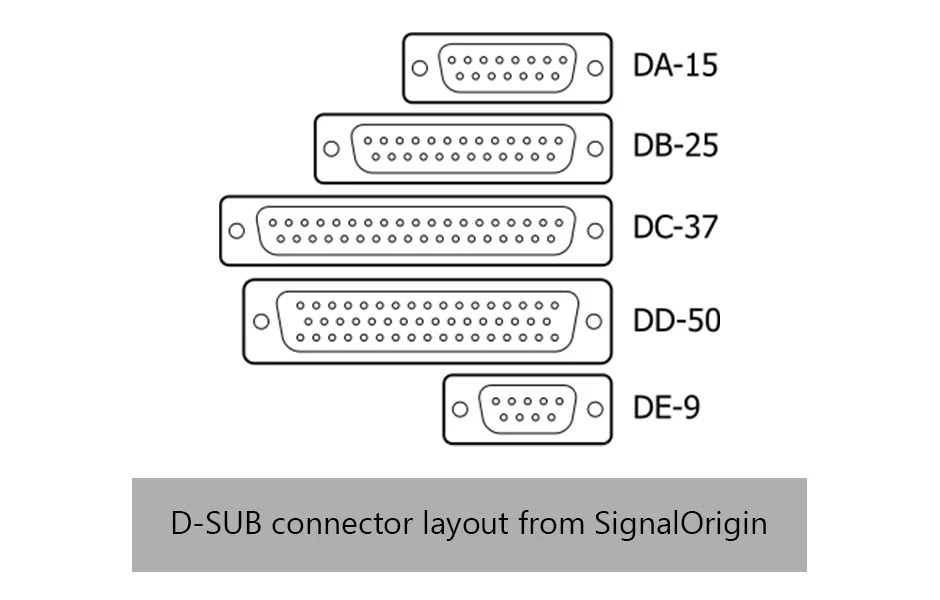

It's important to note that the DE-9 D-sub 9-pin connector is often incorrectly called the “DB-9” connector. The “E” in DE-9 signifies its shell size, distinguishing it from the “B” size shell of the DB-25 connector. The DB9 connector is smaller, featuring an “E” size shell.

Initially, personal computers utilized DB-25 connectors for their serial and parallel ports. As the PC serial port transitioned to 9-pin connectors, these were frequently labeled as DB-9 instead of DE-9 connectors, reflecting a misunderstanding of the shell size designation. Consequently, it's now common for DE-9 connectors to be sold under the name DB-9. Today, DB-9 almost always refers to a 9-pin connector with an E size shell.

Name	Pin layout
DE9 (DB9)	5-4

Applications of DB9 Connector

The DB9 connector, also referred to as the D-subminiature connector, is a widely used interface known for its compact size and versatility across various applications. Here are some of the key uses of the DB9 connector:

1. Serial Communication: One of the primary applications of the DB9 connector is in serial communication. It is commonly employed to connect computer peripherals, such as modems, serial mice, and serial ports on computers. The DB9 connector offers a reliable and standard interface for data transmission using serial communication protocols like RS-232.

2. Industrial Automation: In industrial automation systems, the DB9 connector is frequently utilized to link components such as programmable logic controllers (PLCs), sensors, and actuators. Its sturdy construction and secure connection make it well-suited for demanding industrial environments where reliability is crucial.

3. Audio and Video Equipment: The DB9 connector is also found in audio and video equipment for transmitting analog signals. It is commonly used with devices like projectors, video cameras, and audio mixers, facilitating easy and dependable connections between various audio and video components.

4. Medical Devices: In the healthcare sector, the DB9 connector plays a vital role in connecting different medical devices and equipment. It is often seen in devices such as patient monitors, electrocardiographs (ECGs), and ultrasound machines, ensuring secure and efficient data transfer for accurate diagnosis and treatment.

5. Test and Measurement Equipment: The DB9 connector is extensively used in test and measurement instruments, including oscilloscopes, multimeters, and data acquisition systems. It enables straightforward and reliable connections to various sensors, probes, and other measurement devices for data collection and analysis.

The versatility and wide range of applications of the DB9 connector make it a favored choice in many industries. Its standardized pin configuration and compact design ensure compatibility and ease of use, making it an essential component in numerous devices and systems.

How To Connect A DB9 Connector

A DB9 connector, also known as a DE-9 connector, is commonly used for serial communication. With nine pins, it typically connects devices like modems, printers, and serial mice to computers or other electronic devices.

To connect a DB9 connector, you will need both a male DB9 connector and a female DB9 connector. The male connector features pins, while the female connector has corresponding holes.

Here’s a step-by-step guide to connecting a DB9 connector:

1. Identify the Connectors: Locate the male DB9 connector, which has protruding pins, and the female DB9 connector, which has holes for those pins.

2. Align the Connectors: Position the male and female connectors so that the pins on the male connector align with the holes on the female connector.

3. Insert the Male Connector: Carefully push the male connector into the female connector, ensuring that the pins are fully inserted into the holes.

4. Secure the Connection: If applicable, tighten any screws or fasteners on the connectors to keep them securely in place.

5. Test the Connection: Once connected, the DB9 connector can be used for serial communication between the devices.

Make sure to align the pins of the male DB9 connector with the holes of the female DB9 connector before inserting them. Misalignment can lead to improper connections, resulting in communication issues.

Always check the pin diagram or documentation from the manufacturers of the devices you are connecting to ensure correct wiring, as pin configurations may vary based on the specific devices used.

How To Test The Quality Of The Serial Port Cable?

1. To check if both ends of a cable are properly connected, you can utilize a multimeter. Begin by testing the 2nd, 3rd, and 5th pins. For the female connector, insert the multimeter probes into the pin holes. Since the probes are relatively thick, it’s advisable to solder thin metal pins or pins with resistance to the multimeter probes to facilitate measuring the female connector. Use the multimeter to check the continuity of the 2nd, 3rd, and 5th pins on the serial cable. Ensure a direct connection for pins 2, 3, and 5. For cross-wiring, connect pin 2 to pin 3, pin 3 to pin 2, and pin 5 to pin 5 for testing. In other words, measure the continuity of pin 2 at one end against pin 3 at the other end in the crossed serial port setup.

2. To transmit and receive data using a serial port assistant, connect the RXD (receive data) pin to the TXD (transmit data) pin, and vice versa. You can also use the serial port assistant to short-circuit pins 3 and 9 of the DB9 connector. This setup will enable you to send data through the serial port assistant. If the serial port is functioning correctly, you should be able to achieve both transmission and reception on your own.

Conclusion

The DB9 connector remains a vital component in modern communication technology. Despite the emergence of newer connector types, its reliability and widespread use ensure that it continues to play a significant role in various applications. Understanding the structure and functionality of the DB9 connector not only helps us address connection issues more effectively in our daily tasks but also provides valuable insights for future technology choices. As technology continues to evolve, having a solid grasp of these fundamentals will empower us to navigate new advancements with confidence and ease.
