This article is all about comparing contactors and relays—basically, pointing out the main differences, their uses, and what you need to think about when picking the right one for your needs.

Introduction

Contactors and relays are key parts in electrical systems. They act as switches to control the flow of power. Even though they serve similar functions, people often get confused about the difference between a contactor and a relay. Usually, both are used to switch loads, and they’re included in electrical circuits depending on what the load needs. If you pick the wrong switch for a particular job, it could lead to a big investment loss and possibly damage the whole circuit. By understanding the basic principles and technical details of contactors vs relays, you’ll be in a better position to make smart choices when designing or maintaining electrical systems.

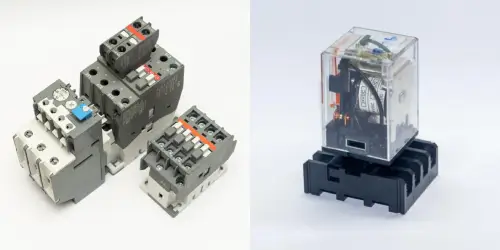

Relays & Contactors

What is a Contactor?

A contactor is an electromechanical switch used to control the flow of electrical current, especially in high-power applications. It’s made up of three main parts: a coil, contacts, and a protective enclosure. When the coil gets power, it creates a magnetic field that pulls the contacts together, closing the circuit and allowing current to flow through the connected load.

Contactors are typically used when high currents (usually over 15 amps) need to be switched on or off. They can handle currents above 5000 amps and power over 100 kW. Contactors are designed to manage the big surge of current that happens when starting up large motors or inductive loads. The contacts are usually made of silver or copper to reduce resistance and ensure the current flows smoothly. The enclosure is usually plastic or metal and helps protect against environmental issues and electrical hazards.

One key feature of contactors is their ability to manage high currents while staying fairly compact. This is made possible with arc suppression techniques, like arc chutes or blowout magnets, which help to stop the electrical arc that forms when the contacts open or close. These features make contactors reliable and safe for use in demanding electrical setups.

What is a Relay?

A relay is another electromechanical or solid-state device, but it's typically used to control the flow of current in lower-power applications. Like a contactor, it has a coil, contacts, and an enclosure. When the coil gets energized, it creates a magnetic field that either pulls the contacts together or pushes them apart, depending on the relay's design. This opens or closes the circuit, allowing current to flow through the connected load.

Relays are generally used when the current is lower than 15 amps, often in situations where smaller loads need to be controlled or when a low-power control signal is used to switch a higher-power load. The contacts in a relay can be made of materials like silver or gold, depending on the application. The protective enclosure is usually made of plastic and shields against environmental factors and electrical risks.

A big advantage of relays is their ability to separate the control circuit from the load circuit. This means a low-power signal can switch a higher-power load without the risk of damaging the control circuit or causing electrical interference. Relays can also have multiple contacts, so they can control several circuits at once. Plus, they come in different switching configurations, like single-pole double-throw (SPDT) or double-pole double-throw (DPDT), giving more flexibility.

Key Differences Between Contactors and Relays

Load Capacity

Load capacity refers to the maximum force a stage can handle in a specific direction while staying within its design limits. One of the main differences between contactors and relays is how much load they can handle. Contactors are built to deal with high-current loads, while relays are better suited for low to medium currents. This difference comes down to their design. Contactors have larger and stronger auxiliary contacts to handle the higher currents. Some contactors are even designed to switch three phases of power at once.

In real-world use, contactors are often found in setups with big motors, heavy machines, or high-power equipment where the current could reach hundreds or thousands of amperes. On the other hand, relays are used in control systems, automation, or low-power devices where the current needs are much smaller. Relays are generally limited to single-phase systems.

Choosing between a contactor and a relay depends on how much current your load needs. When starting motors or dealing with inductive loads, it's important to consider both the continuous current rating and the surge current (also called inrush current). Picking the right device for the load ensures things run smoothly and reduces the risk of failure.

Switching Mechanism

Switching controls the continuity between two points in an electrical circuit. The main difference in how contactors and relays switch electrical currents is in their design. Both rely on an electromechanical mechanism, where a coil gets energized, creating a magnetic field that pulls on the spring-loaded contacts to either open or close the circuit. However, the design of the switch differs between the two, which affects how they perform and whether they're suited for a particular task.

Contactor switching mechanisms are designed to handle big currents and reduce the effects of electrical arcing. They use things like arc chutes or blowout magnets to snuff out the arc when the contacts open or close. The contacts in contactors are usually larger and made of materials with good electrical conductivity, like silver or copper, to keep the current flowing efficiently.

Relays, on the other hand, have a more compact switching design, which is better for lower current applications. The contacts can be made of materials like silver or gold, depending on what the application needs. Relays aren’t as good as contactors at dealing with the wear and tear caused by electrical arcing in high-current situations. To reduce inrush current when a relay switches on a high-power load, capacitor banks can be used.

The choice between a contactor and a relay for a job depends on things like current levels, how often you need to switch, and whether you need arc suppression. Picking the right device will help protect the equipment and avoid failures.

2.3. Open/Closed Contact Standards

Relays are made to work with both normally open (NO) and normally closed (NC) contacts, depending on what’s needed for the job. But contactors are made to work with only normally open contacts. So, when a contactor’s coil isn’t energized, there’s no connection, but that’s not always the case with relays.

Easy to remember:

• Normally closed (NC) = Current flows
• Normally open (NO) = Current doesn’t flow

In a normally open state, no current is flowing initially. But once it’s energized, the contacts close and current can flow. For normally closed contacts, current flows by default. When the device is de-energized, the contacts open, and the current stops.

Contactors are usually used for high-voltage circuits, while relays are typically used for low-voltage ones.

2.4. Size and Construction

The size and build of contactors and relays differ a lot, each designed to suit its intended job and the amount of load it needs to handle.

Contactor devices tend to be bigger and tougher than relays because they deal with high currents. Their contacts are made from materials that conduct electricity well, helping reduce resistance and keep the current flowing efficiently. Contactors are made to handle both AC and DC loads, with their coils drawing a lot of power. They also include arc suppression systems to stop any damage from electrical arcing.

Relays, on the other hand, are smaller and lighter, designed for low to medium current applications. The contacts can be made from different materials depending on the needs of the job. They can open or close circuits either electronically or electromechanically. Since relays manage smaller loads, they don’t need the same level of arc suppression as contactors.

When deciding between a contactor or a relay, you’ve got to think about the size and construction. This includes available space, mounting options, and the environment around the device. Knowing the differences helps you pick the right one for your needs, so you can keep things running smoothly without damaging equipment.

2.5. Electrical Noise

Electrical noise (also called electromagnetic interference, or EMI) can mess with how well electronic devices work. Both contactors and relays can cause electrical noise when they operate, but the amount depends on the design and build of each device.

Contactor devices, because they’re larger and handle higher currents, tend to make more electrical noise. When the contacts open and close, they can create electrical arcs, which give off electromagnetic radiation. This can interfere with nearby electronics. To deal with this, contactors often have arc suppression systems that help quench the arc and reduce the noise.

Relays make less noise because they’re smaller and handle less current. But, they can still produce some electrical noise, especially when switching inductive loads. Solid-state relays are even quieter since they use semiconductor parts, making them a good choice for applications where EMI is a concern.

When you’re picking between a contactor or a relay, consider how much electrical noise could affect the equipment. If EMI is a big issue (like in sensitive electronics or places with strict electromagnetic compatibility rules), you might want a device that generates less noise.

2.6. Lifespan and Durability

How long contactors and relays last and how durable they are matters a lot when choosing the right device for a job. Both devices wear out because of their electromechanical nature, but how fast they wear and how long they last can differ depending on their design, build, and how they’re used.

Contactor devices are built to handle high currents, so they usually last longer and are more durable than relays. The contacts in contactors are made from materials that conduct electricity well, which helps reduce wear. Plus, their arc suppression systems help prevent wear and tear on the contacts, extending their lifespan.

Relays generally don’t last as long as contactors. They wear out faster because they’re smaller and handle less current. This is especially true when switching inductive loads or running at high frequencies. However, solid-state relays are more durable and last longer than regular electromechanical relays, though they’re not always suited for every job because of their own limitations.

The lifespan and durability of both devices depend on things like how often they’re switched, the current and voltage ratings, and the kind of load they’re switching. Environmental factors like temperature, humidity, dust, and corrosive substances also play a role. Knowing the differences in lifespan and durability helps you pick the right device to keep things running reliably without failures.

Recommended reading: General Purpose Port Protection Against Electrical Stress

Applications of Contactors and Relays

Industrial Applications

Contactor and relay devices play a big role in managing and controlling electrical loads in industrial settings. What they’re used for depends on how much current they need to handle, how often they switch, and the environment they’re in.

Contactors are commonly used in industrial settings with high-power equipment, like big motors, heavy machinery, and HVAC (heating, ventilation, and air conditioning) systems. These systems need devices that can handle a lot of current, which is exactly what contactors are made for. For example, you’ll find contactors in motor control centers that start and stop large motors and provide overload protection. They’re also used in power distribution systems to control the flow of electricity throughout an industrial facility. In the automotive world, contactors handle high-power loads in things like starter motors, electric vehicle motors, air conditioning compressors, and electric power steering motors.

Relays, on the other hand, are better for low to medium-current applications. In industrial settings, they’re often used in control systems, automation, and safety circuits where it’s important to isolate the control circuit from the load circuit. For example, relays are key in programmable logic controllers (PLCs) that control machinery or in safety systems like emergency stop circuits to make sure everything runs safely. You’ll also find relays in monitoring and alarm systems that trigger alarms or take corrective actions when things go wrong, like when temperature or pressure goes out of range.

By understanding the needs of your specific industrial setup and the strengths of contactors and relays, you can choose the right device for the job to make sure everything runs smoothly.

Commercial Applications

In commercial environments, both contactors and relays help control and manage electrical loads in a variety of ways.

Contactors are often used in commercial settings with high-power equipment, like HVAC systems, lighting control, and large appliances. For example, in commercial buildings, contactors manage air conditioning units to make sure they use energy efficiently and keep the indoor temperature comfortable. They’re also used in lighting systems to control large groups of lights, either by switching them on and off manually or automatically on a schedule. This helps save energy and prolong the life of the lighting equipment.

Relays are better for low to medium-current applications in commercial settings. They’re often found in control systems, automation, and safety circuits, where the ability to isolate the control circuit from the load circuit is really important. For instance, relays can be used in building automation systems to control things like lighting, heating, and security systems. In safety applications, relays are used to monitor and control things like emergency lighting, fire alarms, and access control systems, keeping the building’s occupants safe.

By understanding the specific needs of commercial applications and the capabilities of contactors and relays, you can pick the right device. This way, you can make sure your electrical systems run smoothly and efficiently.

Residential Applications

In homes, contactors and relays are used for controlling and managing electrical loads in all kinds of ways.

Contactors are used in residential setups that need to handle high-power equipment, like central air conditioning systems, electric water heaters, and solar power systems. For instance, contactors can be used in solar power installations to switch between grid power and solar power depending on how much energy the sun is providing and what the home’s electrical needs are.

Relays, on the other hand, are better for low to medium-current applications in homes. They’re often used in home automation systems to control things like lighting, heating, and security systems. In safety setups, relays can monitor and control devices like smoke detectors, carbon monoxide alarms, and security systems, keeping everyone in the house safe.

By understanding the needs of residential setups and the abilities of contactors and relays, you can choose the right device for the job to keep things running smoothly and efficiently.

Selecting the Right Device for Your Application

Load Requirements

When picking between a contactor and a relay, one of the most important things to think about is the load requirement. This includes both the continuous current rating and the inrush current, which is the surge of current that happens when starting things like motors or inductive loads.

To figure out the load requirements, you first need to know the current and voltage levels for the electrical load you're working with. You can usually find this info on the equipment's nameplate or in the manufacturer’s documentation. You’ll want to pick a device with a continuous current rating that meets or exceeds the load’s max current needs. Also, don’t forget about the inrush current—it can be way higher than the continuous rating, especially with things like motors.

Once you’ve got the load requirements figured out, you can compare the specs of contactors and relays to find the best fit. Contactors are generally better for high-current applications, while relays work better for low to medium-current situations. By picking a device that matches the load’s needs, you’ll ensure things run reliably without risking device failure or damaging your equipment.

Environmental Factors

The environment where the device will be used can also play a big role in whether you should use a contactor or relay. Things like temperature, humidity, dust, and exposure to corrosive substances can affect how well a device works and how long it lasts.

Contactors, with their heavy-duty design and larger size, are better suited for harsh environments—like those with high heat, moisture, or dust. The enclosures (usually plastic or metal) protect the device from environmental factors and electrical hazards. Plus, contactors often include arc suppression features, like arc chutes or blowout magnets, which help put out the electrical arc that forms when the contacts open or close, reducing wear and extending the lifespan.

Relays tend to be more compact and may not hold up as well in tough conditions. Their enclosures (usually plastic) protect against hazards, but they may not be as sturdy as the ones in contactors. Solid-state relays, which use semiconductor components instead of mechanical contacts, can be more resistant to environmental factors, but they might not be right for every application because of their specific features and limits.

When choosing between a contactor and a relay, you need to think about the environment where it’ll be used. Knowing the differences in how each device is built and what materials are used will help you pick the best option to keep things running reliably.

Cost Considerations

Cost is another big factor when choosing between contactors and relays. The price can vary depending on things like load capacity, materials, and any extra features (like arc suppression).

Contactors, being bigger and able to handle more current, are usually more expensive than relays. The materials used in contactors, like silver or copper contacts, add to the cost. Plus, the arc suppression features (like arc chutes) can increase the price even more.

Relays, on the other hand, are typically cheaper than contactors, making them a more affordable choice for low to medium-current needs. But the cost of relays can still vary depending on the materials used (like silver or gold contacts) and whether it's a regular electromechanical relay or a solid-state relay. Solid-state relays can be pricier than electromechanical ones, but they’re often more durable and create less electrical noise.

When you’re thinking about cost, it’s important to consider not just the upfront price but also long-term costs, like maintenance, replacement, and energy consumption. By understanding how the costs of contactors and relays compare and keeping your application’s needs in mind, you can make a smart choice that balances performance, reliability, and cost-effectiveness.

Installation and Maintenance

Installing Contactors and Relays

Installing contactors and relays correctly is super important to make sure they work reliably and reduce the chance of failure or damage to the equipment. While the exact steps might change based on the manufacturer's guidelines and the type of device, here are some general tips you can follow for both:

1. Pick the right spot: Choose a good location for the device, keeping in mind space, mounting options, and the environment. Make sure the area is clean, dry, and well-ventilated, and keep it away from heat, moisture, or any sources of vibration.
2. Mount the device securely: Use the proper mounting hardware (like screws or DIN rail clips) to attach the device to a panel or surface. Make sure it’s mounted in the right orientation, as specified by the manufacturer.
3. Wire it up properly: Follow the wiring diagram to connect the device to the control circuit and load. Use the right wire size and type (as per the manufacturer’s instructions) and make sure all connections are secure and insulated.
4. Double-check everything: Before turning on the power, double-check all your connections and make sure the device is installed and wired correctly. Once it's energized, test the device by manually activating the control circuit and watching how the load responds. Make sure the device works as expected with no overheating, arcing, or other issues.

By following these guidelines and any specific instructions from the manufacturer, you can make sure the installation goes smoothly and the device operates reliably.

Troubleshooting and Maintenance

Regular maintenance and troubleshooting are key to making sure contactors and relays keep working well and last longer. While the exact steps might depend on the manufacturer and device type, here are some general guidelines you can follow:

1. Inspect the device regularly: Do visual checks for any signs of wear, damage, or contamination. Look for overheating signs like discoloration or deformed enclosures or contacts. Check for loose or corroded connections that could affect performance.
2. Clean the device as needed: Use a soft brush or compressed air to remove dust and dirt. Be careful not to damage sensitive parts like the main contacts. If there's stubborn dirt or grease, use a mild cleaning solution and soft cloth, but make sure it’s completely dry before powering it up again.
3. Check the contacts for wear: Look at the contacts for wear signs like pitting, erosion, or too much buildup. If the power contacts are worn out, you might need to replace them to keep things working properly. Check the manufacturer’s guidelines for advice on contact replacement and maintenance intervals.
4. Test the device's operation: Periodically test the contactor or relay by manually activating the control circuit and watching how the load responds. Make sure everything’s working as it should, without chattering, arcing, or extra noise.
5. Monitor the device's performance: Keep track of how the device is doing over time. Watch for any changes like slower response times, less contact force, or more electrical noise. These changes might mean the device needs maintenance or replacement.

By sticking to these general tips and following the manufacturer's instructions, you’ll help keep the device running smoothly and reduce the risk of failure.

Conclusion
To wrap it up, contactors and relays are both essential parts of electrical systems, acting as switches to control power flow. While they’re similar in their basic function, they have differences in things like load capacity, switching mechanisms, size, build, electrical noise, and lifespan. By understanding these differences and thinking about factors like load requirements, the environment, and cost, you can pick the right device for your application. This ensures your electrical systems run smoothly and efficiently.

Frequently Ask Questions

What are contactors and relays?

Contactors are usually made for 3-phase systems, while relays are more commonly used in single-phase systems. A contactor connects 2 poles together, but there’s no common circuit between them. A relay, on the other hand, has a common contact that links to a neutral point.

What’s the purpose of a contact relay?

When you apply electrical current to the contacts, it changes their state. Relays are mostly used to switch smaller currents in control circuits. They don’t usually control power-hungry devices, except for small motors or solenoids that use low amps.

What’s the main function of a relay?

Relays are electrically operated switches. They open and close circuits when they get electrical signals from other sources.

Can I replace a contactor with a relay?

Relays and contactors do the same job in a circuit—they provide isolation between the control circuit and the output circuit. Relays have some perks like being smaller, easier to mount on PCBs, and cheaper, so in many cases, engineers can swap contactors with relays.

Why are relays needed?

The main job of a relay is to protect the electrical system from excessive voltage or current, which ensures the safe operation of the connected equipment. You’ll find relays in all sorts of applications, from commercial and industrial setups to home and consumer products.
