Introduction to Electronic Filters

Electronic filters are used in many electronic devices. They block unwanted frequencies to improve signal quality. You'll find them in communication systems, audio equipment, and power management. This article will introduce electronic filters and how to choose the right one.

How Electronic Filters Work

Electronic filters let certain frequencies through while blocking others. This removes or attenuates unwanted frequencies from an electrical signal. The filter's bandwidth is the range of frequencies that pass through.

There are different types of electronic filters:

Low-pass filter: Allows low frequencies to pass through while blocking higher frequencies.

High-pass filter: Allows high frequencies to pass through while blocking lower frequencies.

Band-pass filter: Allows a certain range of frequencies to pass through while blocking all other frequencies.

Electronic filters can be passive or active. Passive filters use components like resistors, capacitors, and inductors to filter the signal. Active filters use components like transistors to both amplify and filter the signal.

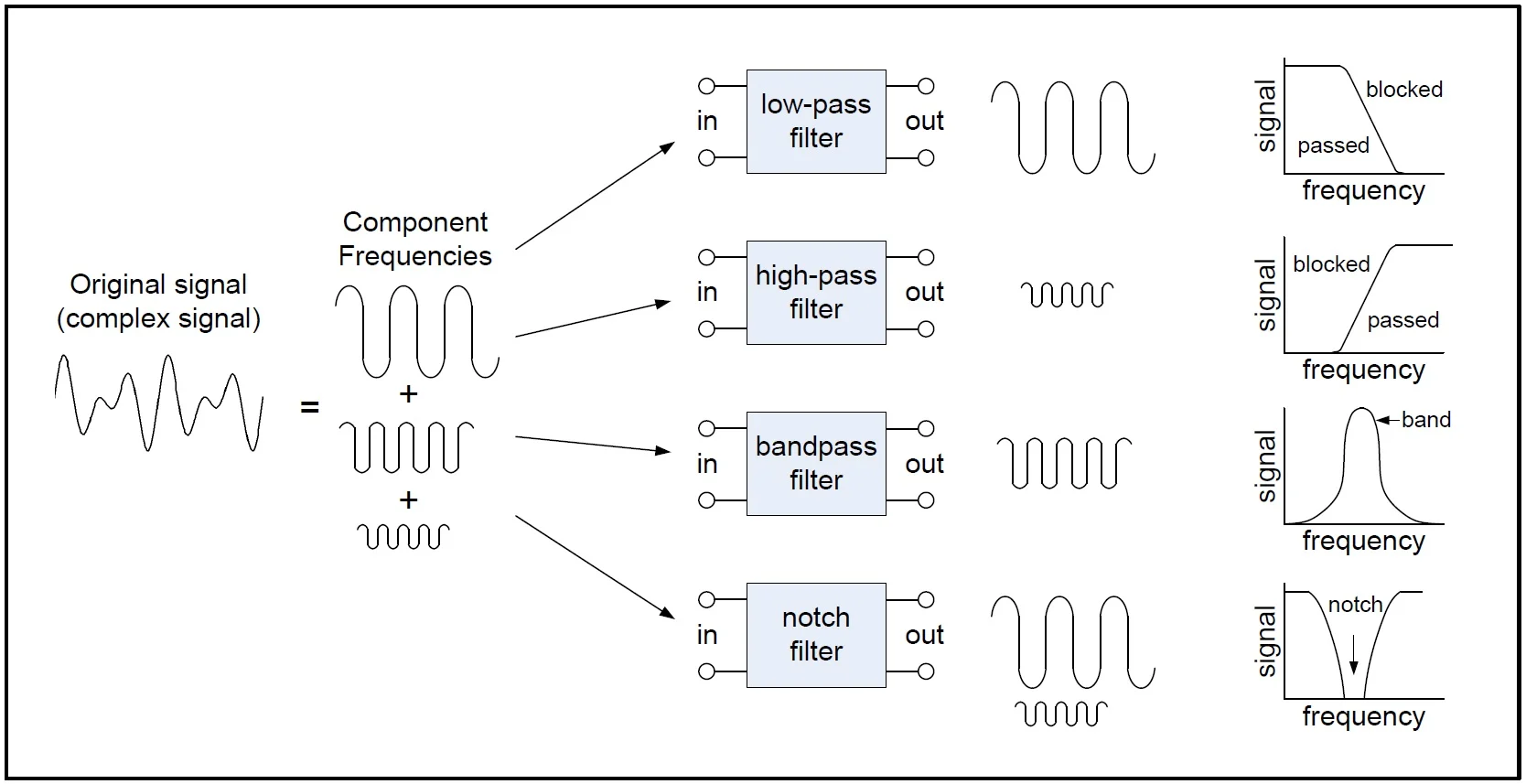

A basic depiction of the four major filter types.

What electronic filters do

• Signal purification

Filters remove unwanted noise and interference from signals. They are used in audio equipment and communication systems.

• Selecting Frequencies

Filters let you choose which signals to let through and which to block. In communications, filters separate different signal bands to ensure clear transmission.

• Matching impedance

Filters can also be used to match impedances to improve signal transmission.

Passive and Active Filters

Filters can be placed in one of two categories: passive or active.

Passive filters use only passive components, while active filters use both passive and active components.

Passive filters work best between 100 Hz and 300 MHz. They can't work as well at low frequencies because large inductors or capacitors are needed. At high frequencies, there are limits due to parasitic capacitance and inductive effects. But with careful design, passive circuits can work at frequencies up to the gigahertz range.

Active filters can handle very low frequencies, even close to 0 Hz, while still providing voltage gain. Active filters allow for the design of higher order filters without the use of inductors, which is important in manufacturing. However, active filters are not suitable for UHF applications due to amplifier bandwidth limitations, so passive filters are often used in RF circuits.

How electronic filters are used.

• Audio equipment

In audio equipment, filters are used to remove unwanted noise to ensure clear sound. High-quality audio systems often use multiple filters to improve audio quality.

• Communication Systems

Filters are important in wireless and wired communications. They separate different signal frequencies, preventing interference and ensuring accurate data transmission. In radio communications, filters reduce interference from neighboring channels.

• Power Management

Filters are used in power supply circuits to remove noise and stabilize the current. In switching power supplies and inverters, filters improve the power supply's output and prevent equipment from being destabilized.

Key points in buying electronic filters

There are several things to think about when choosing an electronic filter.

• Filter type：

Determine the type of filter you need (low-pass, high-pass, band-pass, or band-stop) based on your signal requirements.

• Frequency range：

The passband and stopband frequency range of the filter is the most important parameter. Choose the right frequency response range for your application.

• Filtering accuracy and attenuation：

Filtering accuracy and attenuation are how well a filter suppresses a signal over different frequencies. The higher the accuracy, the better the filtering effect.

• Insertion Loss:

A filter with low insertion loss uses less power, improving efficiency.

• Quality and Reliability:

Choose certified filters with high reliability for long-term stability.

Recommended brands

• Murata

Murata makes electronic components, including filters for audio, communications, and power management.

• TDK

TDK makes high-precision, high-reliability filters for wireless communication devices and power supply circuits.

• AVX

AVX's filters are ideal for high-frequency filtering needs.

• KEMET

KEMET offers a wide range of filters, especially for high- and industrial-power supplies.

• Wurth Elektronik

Wurth Elektronik offers high-quality power and signal filters for industrial automation and power equipment.

Conclusion

Electronic filters are used in many different areas, including signal processing, communications, audio, and power management. There are different types of filters that can be used for different purposes. When choosing a filter, it is important to understand how it works, what it is used for, and what features it has. This will help you get the best performance and results for your application.

Frequently Asked Questions (FAQ)

What parameters should I consider when selecting electronic filters?

When selecting an electronic filter, the following parameters should be considered:

• Passband frequency: The range of frequencies that the filter will pass.
• Stopband frequency: The frequency range that the filter blocks.
• Insertion Loss: The power lost by the signal after it passes through the filter.
• Stopband Attenuation: The ability of the filter to suppress the signal in the stopband.
• Size and Power Rating: Suitable for the application environment and power requirements.

How long does an electronic filter last? How do I maintain it?

An electronic filter is a durable item that won't break easily under normal use.However, if it is squealed on, it will be worn out; it must be watch carefully to make sure it keep in good condition and function normally. If it squeezed and do not function, it's time to change it.

How do you judge the performance of a filter?

You can check the efficiency of the filter by taking a look at insertion loss, stopband attenuation and passband width. A lower insertion loss means less signal degradation. Higher stopband attenuation means better filtering. Passband width defines the frequency range around a selected centre frequency where a given filter is mainly active.
