Overview of Current Sensor ABF025

There are different kinds of current sensors, each with its own benefits, that measure electric current flowing through a conductor.

Current Sensor ABF025

Hall Effect sensors cover a wide range of currents, offer galvanic isolation, use little power, and provide non-contact, non-intrusive readings using the Hall effect. You can get them in two types: closed-loop (which are super accurate) and open-loop (which are more affordable).

Rogowski coils are lightweight and flexible, making them great for sensing high AC and pulsed currents. They’ve got a large bandwidth and high precision, but you’ll need to integrate the current measurements.

Shunt resistor sensors give you simple, low-cost, and accurate readings of DC/AC currents by checking the voltage drop across a low-value resistor. However, they’re best for lower current ranges.

Current transformers measure AC currents by using the transformer principle. They’re tough and offer galvanic isolation, but their bandwidth is narrower, and they aren’t as accurate.

When picking a sensor, you’ll need to think about a few factors like the current range, precision, bandwidth, and isolation needs.

What is Current Sensor ABF025 ?

The ABF025 is a current sensor from Melexis Technologies NV. It can handle up to 25A and uses Hall effect technology in a single channel, plus it works in both directions. This sensor is packaged in a 16-SOIC case, which is about 0.295 inches (7.50mm) wide. What’s cool is that it detects current through its lead frame, which means it loses less heat than other options. It’s small, has low impedance, high bandwidth, and solid isolation. On top of that, it’s pretty fast with a response time of just 2μs, and it can handle signals from DC up to 300 kHz.

ABF025 Current sensor Pinout

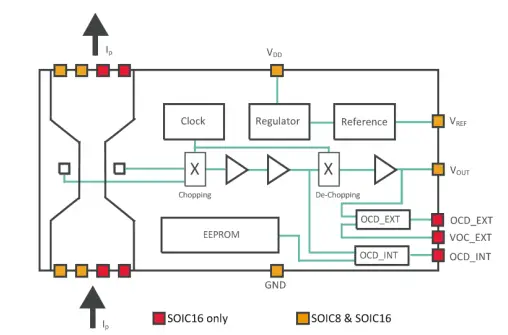

ABF025 Current sensor Functional Diagram

The sensor can work in two different modes, depending on what you need it for. Both modes use the sensor’s output voltage, which changes in proportion to the current flow, but the key difference is how the signal is reconstructed.

Primary Features of ABF025 Current Sensor

The ABF025 Current Sensor, from Melexis Technologies NV, is designed for accurate and efficient current measurement. Here are its main features:

Current Measurement Range: The ABF025 can measure currents up to 25A, making it great for applications where you need to monitor moderate current levels.

Sensing Technology: It uses Hall effect technology, sensing the magnetic field created by the current flowing through a conductor, which allows for non-intrusive current measurement.

Bidirectional Measurement: The sensor can measure current in both directions, making it more flexible in cases where the current flow can go either way.

Package Type: The sensor is packaged in a 16-SOIC case, just 0.295" (7.50mm) wide, making it easy to fit into electronic devices.

Response Time: It has a super quick response time of just 2μs, which is perfect for applications that need fast feedback on current changes.

Bandwidth: The ABF025 can handle both static and dynamic current signals, thanks to its operating bandwidth that goes from DC to 300 kHz.

Low Impedance: Its low impedance helps reduce power losses during use.

Thermal Loss Reduction: Compared to traditional methods, it reduces thermal losses by sensing current through the lead frame of its package.

Galvanic Isolation: It offers electrical isolation from the main circuit, adding extra safety and reducing the risk of interference in sensitive electronic applications.

Applications: It’s used in a range of devices, including battery-powered gadgets, electric drives, DC-DC converters, and solar power systems.

ABF025 Current Sensor Specifications

With high accuracy of ±1%, the ABF025 is a versatile current sensor that can detect both AC and DC currents up to 25A. It has a wide bandwidth (up to 100 kHz), fast response times (≤ 3 µs), and uses very little power (< 10 mA). Thanks to its 2.5 kV RMS isolation and ability to work over a wide temperature range, it's great for a variety of industrial and electrical applications.

Advantages and Disadvantages of ABF025 Current Sensor

In conclusion, the ABF025 Current Sensor is a great fit for a bunch of different applications thanks to its small size, solid performance, and safety features. That said, its limits, like the current range and sensitivity to external factors, should be carefully thought about depending on the specific application.

Working Principle of ABF025 Current Sensor

The ABF025 Current Sensor from Melexis Technologies NV uses Hall effect technology to detect current without getting in the way. Here’s how it works:

Hall Effect Sensing:

When electric current flows through a conductor, it creates a magnetic field around it. The strength of this magnetic field directly relates to how much current is flowing. Inside the ABF025 sensor, there’s a tiny piece of semiconductor material called a Hall element. When this Hall element is exposed to the magnetic field, a voltage (called Hall voltage) is generated across it. The Hall voltage changes with the strength of the magnetic field, which lets the sensor figure out how much current is flowing through the conductor—without touching it directly.

Integrated Signal Conditioning:

The ABF025 has built-in electronics that process and condition the Hall voltage signal. This usually means amplifying the signal and converting it into something more useful, like an analog output voltage. The analog voltage is proportional to the current measured, making it easy to connect with other electronics like ADCs (analog-to-digital converters) or microcontrollers.

Galvanic Isolation:

One big advantage of the ABF025 is that it provides galvanic isolation between the Hall effect sensor and the conductor. Since the sensor doesn’t physically touch the conductor, the primary circuit and the sensor electronics are electrically isolated. This is especially important for high-voltage applications, where direct electrical contact could be risky.

Accuracy and Linearity:

The ABF025 is designed to be very accurate and linear across a wide current range, from a few milliamps up to 25A. It even has temperature compensation circuitry to ensure it works properly over a wide range of temperatures, making it useful in settings like industrial and automotive applications.

ABF025 Current Sensor Applications

Electric Drives: Electric motor control systems use sensors to keep an eye on and regulate current flow for smooth operation.

Battery Management Systems (BMS): BMSs are crucial for tracking battery charge and discharge currents, helping to extend battery life.

DC-DC Converters: The ABF025 measures current accurately in power conversion applications, which boosts efficiency.

Solar Power Systems: It measures the current from solar panels in inverters, helping with performance monitoring and optimization.

Power Supplies: The sensor monitors and controls current in various power supply applications to ensure a steady output.

Load Control Systems: These systems track and regulate the load, which helps improve energy efficiency.

Applications for Electric Vehicles (EVs): The ABF025 can handle different current sensing needs in EVs, like motor control and charging.

Uninterruptible Power Supplies (UPS): It keeps track of current in UPS systems, ensuring reliable backup power during interruptions.

Industrial Automation: In industrial machinery and automation systems, current is monitored for operational efficiency and safety.

Smart Home Appliances: The ABF025 can be integrated for energy management and monitoring in smart appliances.

Renewable Energy Systems: It's used to track current flow in devices like energy storage systems and wind turbines.

Portable Medical Devices: The sensor is perfect for medical devices where accurate current measurement is key for safety and performance.

The ABF025 is an awesome choice for all these different applications because it has a quick response time, compact size, and can measure both AC and DC currents. These features really help boost efficiency and reliability in a wide range of electronic systems.

Frequently Asked Questions

What is the maximum current rating for the ABF025?

The ABF025 can handle a maximum current rating of 25A, meaning it can measure currents up to 25 amps.

Can the ABF025 measure both AC and DC currents?

Yep, the ABF025 can measure both direct current (DC) and alternating current (AC) with ease.

What type of package does the ABF025 come in, and what are its dimensions?

The ABF025 comes in a compact 16-SOIC package that’s 0.295" (7.50mm) wide.

How does the ABF025 achieve electrical isolation from the primary circuit?

It achieves galvanic isolation by measuring the primary current through the lead frame of its package without making any direct electrical contact, keeping the sensor separate from the measured circuit.

What is the response time of the ABF025?

The ABF025 has a super quick response time of 2μs, allowing it to detect changes in current rapidly.

What is the bandwidth range of the ABF025 sensor?

The ABF025 works efficiently across a bandwidth range from DC to 300 kHz, giving it a broad range for various applications.

What are the advantages of using the ABF025 compared to other current sensors?

Some of the main advantages of the ABF025 are its compact size, low impedance, high bandwidth, fast response time, and the ability to provide galvanic isolation. Plus, it helps reduce heat losses compared to some other sensing systems.

How does the ABF025 help in reducing thermal losses?

The ABF025 minimizes thermal losses by measuring current through the lead frame of its package, which helps lower heat generation compared to other current measurement techniques that require more power.

Is the ABF025 suitable for battery-powered applications?

Absolutely! The ABF025 is a great choice for battery-powered applications due to its small size and low power consumption, making it easy to integrate into portable electronics and energy management systems.

What are the key design features of the ABF025 that contribute to its performance?

Key design features that boost the ABF025’s performance include Hall effect sensing technology, its small 16-SOIC package, low impedance, a wide bandwidth, and the ability to provide galvanic isolation between the main circuit and the sensor electronics.
