Servo Motor

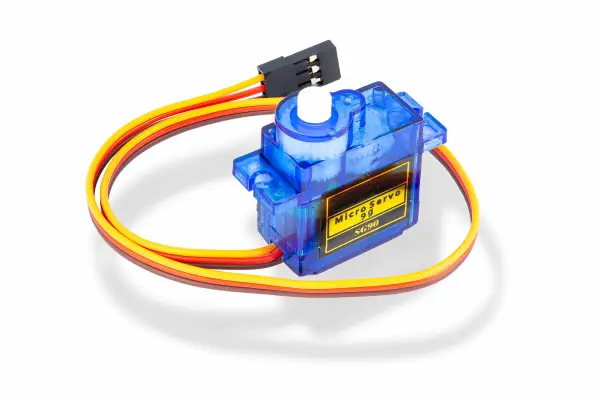

What’s a Servo Motor?

A servo motor (or servomotor) is a super-specialized type of motor made for really precise control of either spinning or moving in a straight line. It’s designed to move exactly where it needs to, thanks to a feedback system that makes sure it hits the right spot. Usually, it works with a control signal telling it where to go. Because of this, servo motors are essential in situations where you need to be spot-on with positioning and smooth movement.

How Does a Servo Motor Work?

At the core of every servo motor is its superpower: controlling the exact position of its output shaft. It pulls this off with a cool combo of several key parts:

Control Signal: This is where it all starts. The controller sends an electric signal that tells the servo where it needs to move or stop. It’s usually a pulse that varies in width, called pulse width modulation (PWM), which basically encodes the target position.

Motor and Gear Mechanism: Once the servo gets the control signal, its internal circuit kicks in and powers the motor to move to the right spot. A gearbox is often involved to add more torque and help the motor control the movement and speed more precisely.

Feedback System: This is what keeps the servo motor so accurate. A feedback system, using sensors like potentiometers or encoders, constantly checks where the motor’s output shaft is sitting.

Error Correction: Here’s where the magic happens—the controller circuit keeps comparing the feedback (where the motor is) with the setpoint (where the control signal told it to be). If there’s any difference (an error), the controller adjusts the motor’s power until everything lines up perfectly.

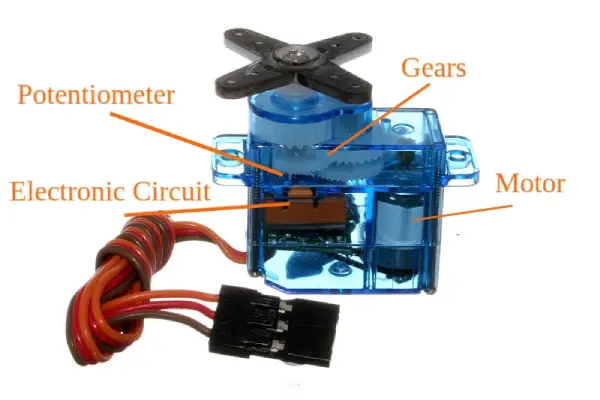

The Core Components of a Servo Motor

Core Components of a Servo Motor

Servo motors have a bunch of important parts, and each one plays a key role in making sure the motor works just right. Knowing what these parts do helps explain why servo motors perform so well in things like automation and control.

Motor (AC or DC): This is where the mechanical power comes from. Whether it’s AC or DC depends on what you need—AC motors are better for high speed and power, while DC motors give you more precise control. The type of motor helps decide if it’s for heavy-duty jobs or more delicate tasks.

Control Circuit: This is basically the brain of the servo. It takes the signals from the controller and tells the motor what to do, like where to go, how fast, and how much torque to use. It makes sure the motor follows the instructions exactly.

Potentiometer: This sensor, often found in smaller or simpler servos, gives basic feedback on where the motor shaft is, helping keep everything accurate.

Motor Shaft: This is the part that spins and transfers the motor’s power to whatever you're trying to move. It’s what actually does the work in your application.

Servo Drive: Think of this as the middleman between the control system and the motor. It takes the control signals and gives the motor the power it needs to move, adjusting things like voltage and current based on feedback.

Drive Gears: These gears are key for boosting the torque from the motor so it can make precise movements. They’re hooked up to the motor shaft and help tweak the mechanical power as needed.

Servo Amplifier: This part amps up the signals from the control circuit, making sure they’re strong enough to drive the motor effectively.

Encoder: Encoders are fancy feedback devices that give super-detailed info about the motor shaft’s position or speed to the control circuit. There are two types: incremental (which gives relative position) and absolute (which tells you the exact position at any time).

Resolver: Like encoders, but tougher, resolvers are used to give position feedback in environments where you need extra precision and durability, like in hot or shaky places.

Power Supply: Every servo motor needs its own power supply to keep it running. What kind of power supply you need depends on whether the motor is AC or DC.

Cooling System: Some servo motors have cooling systems to keep them from overheating, especially when they’re used in heavy-duty situations. This helps the motor last longer and perform better.

What Are the Different Types of Servo Motors?

Servo motors come in a few different types, depending on how they get power, how they’re built, and what they’re used for. Each type has its own special features that make it great for certain tasks, affecting how well they work and how easily they can be controlled.

AC Servo Motors

AC servo motors run on alternating current (AC) and are known for being tough and reliable, especially in high-power jobs. The current changes direction and voltage regularly.

Where They’re Used:

You’ll find AC servo motors in industrial machines, automated manufacturing, CNC machines, and robotics. They’re great for heavy loads and high-speed jobs, where they need to run smoothly and reliably.

Pros:

High Efficiency: These motors are great at turning electricity into mechanical power.

Durable: Built to handle tough environments with little maintenance.

High Torque at Low Speeds: Perfect for heavy machinery, even at slow speeds.

Cons:

Cost: They’re usually more expensive than DC motors.

Complex Control Systems: Controlling them is harder because AC has more variables.

What makes Them Special:

Speed Control: They offer great control over a wide range of speeds.

Feedback Systems: They come with advanced feedback, like encoders or resolvers, for super precise control.

Power Supply: They need a steady AC power source, which varies depending on the motor size and the job.

DC Servo Motors

DC servo motors run on direct current (DC), giving you precise control over position and speed. They usually include a motor, control circuit, and feedback like an encoder or potentiometer.

Where They’re Used:

DC servos are common in smaller, more precise tasks, like robotics, positioning systems, and small automation projects where you need fine control.

Pros:

High Precision: Perfect for accurate positioning and speed adjustments.

Fast Response: They respond quickly to changes, making them great for dynamic tasks.

Simple Control Electronics: Easier to control than AC servos.

Cons:

Limited Torque: Not as strong as AC motors for high-torque applications.

Wear and Tear: Brushes and commutators wear out over time, so they need maintenance.

What Makes Them Special:

Rotor and Commutator: Designed for precise control.

Feedback Mechanism: Usually has an encoder for accurate positioning.

Power Supply: Runs on a steady DC power source that’s easy to regulate.

Brushed Servo Motors

These motors use brushes to send current to the motor through the commutator. It’s an old-school design that’s still used because it works well.

Where They’re Used:

You’ll see brushed motors in consumer electronics, cars, and smaller industrial equipment where cost matters.

Pros:

Cost-Effective: Cheaper to make and maintain than brushless motors.

Proven Technology: Reliable, thanks to years of development.

Easy to Control: Simple control systems because of the brushed design.

Cons:

Maintenance: Brushes and commutators wear out and need to be replaced.

Electrical Noise: Brushes can create noise that might mess with nearby electronics.

What Makes Them Special:

Brush Design: Simple but needs regular maintenance.

Torque-to-Speed Ratio: A good balance for lower power applications.

Durability: While sturdy, the brushes wear out over time.

Brushless Servo Motors

Brushless motors get rid of the brushes and use an electronic commutation system instead, which makes them more reliable and low-maintenance.

Where They’re Used:

You’ll find these in high-performance jobs like CNC machines, robots, aerospace, and cars. They’re super efficient and last a long time, so they’re great in tough environments.

Pros:

High Efficiency: No friction from brushes, so they run better.

Low Maintenance: Fewer parts to wear out means they last longer.

Wide Speed Range: They can handle various speeds without losing performance.

Cons:

Higher Cost: The advanced design makes them pricier upfront.

Complex Control: The electronic control system can make setup more complicated.

What Makes Them Special:

Electronic Commutation: Sensors control the timing of current through the motor coils.

Feedback Mechanisms: Usually paired with encoders or resolvers for precise speed and position control.

Thermal Efficiency: They produce less heat, which is great for tightly packed machines.

Synchronous Motors

Synchronous motors (sometimes called synchronous AC servo motors) are built to run at a steady speed that syncs up with the frequency of the current. Basically, the motor speed is directly tied to the frequency, making these motors super accurate.

Where They're Used:

You’ll find them in systems where keeping a constant speed matters, like conveyor belts, synchronous clocks, and other machines where timing is key.

Pros:

Constant Speed: The speed doesn’t change, even if the load changes.

High Efficiency & Precision: Super efficient and can hold their position without needing feedback in steady-state conditions.

Tough Build: Made to handle harsh industrial environments, so they’re pretty reliable.

Cons:

Needs Precise Control: If the power frequency changes, it can mess up how the motor runs.

Less Versatile: They work best under specific conditions that they’re built for.

What Makes Them Special:

Fixed Speed: The motor’s speed stays steady because it’s tied to the input power frequency.

Power Factor Correction: Can improve the electrical system's power factor, which is a plus in industrial setups.

No Feedback Needed: In many cases, they don’t need extra feedback to maintain position.

Asynchronous Motors

Asynchronous motors, or induction motors, work by using a rotating magnetic field to induce current in the rotor. They’re simpler than synchronous motors since they don’t have permanent magnets.

Where They're Used:

You’ll see these in industrial machines where the speed doesn’t need to be super precise, like pumps, fans, and conveyors.

Pros:

Durable: Known for being strong and tough.

Low Maintenance: Fewer parts that wear out, so they need less upkeep.

Cost-Effective: Cheaper to make and buy because of the simple design.

Cons:

Speed Fluctuations: The speed can change depending on the load or power frequency.

Less Efficient: Not as efficient as synchronous motors, especially at lower speeds.

What Makes Them Special:

Slip: The rotor speed lags behind the motor’s magnetic field speed, a feature called slip.

Torque: They’ve got high starting torque, but efficiency drops when running slower.

Linear Servo Motors

Linear servo motors turn electrical energy directly into straight-line motion without needing things like ball screws or gears. This makes them super efficient and great for precise control.

Where They're Used:

Perfect for tasks that need accurate positioning and fast movement, like assembly robots, CNC machines, or high-speed transport systems.

Pros:

High Precision: You get super accurate positioning and control.

Speed & Acceleration: These motors can move fast and pick up speed quickly.

Less Wear: Since there are no mechanical parts to transmit motion, there’s less wear and tear.

Cons:

Cost: They tend to be pricier because of the tech and materials.

Complex: They need advanced control systems and feedback to work well.

What Makes Them Special:

Direct Drive: No mechanical linkages, so they provide direct, precise control.

Force Density: They have a high force output for their size compared to traditional motors.

Iron-Core Linear Servo Motor

These motors have an iron core in their windings, which boosts magnetic flux and efficiency.

Key Features:

High Force Density: Thanks to the iron core, they deliver more force per size.

Stiffness & Precision: Perfect for tasks that need strong stiffness and accurate control.

Cogging: The iron core can cause cogging, which might make the motion less smooth.

Challenges:

Weight & Heat: These motors are heavier and generate more heat, so they need solid cooling systems.

Ironless Linear Servo Motor

Ironless linear servo motors don’t have an iron core, which eliminates cogging and makes for smoother motion.

Key Features:

Smooth Motion: No iron core means less cogging, so the motion is much smoother.

Lightweight: These motors are lighter, making them ideal for smaller applications where weight matters.

Challenges:

Lower Force Output: Without the iron core, they don’t produce as much force, so they may not be the best fit for all jobs.

What Are the Advantages of Servo Motors?

Getting to know the benefits of servo motors is super important for engineers and technicians looking to make the most out of these systems.

High Efficiency:

Servo motors are really efficient because they only use power when they’re moving and can keep energy use low across different speeds and loads.

Exceptional Control Precision:

They give you precise control over angular or linear position, speed, and acceleration, which is why they’re a must-have for applications that need exact positioning.

High Output Power Relative to Size:

Even though they’re small and compact, servo motors can pack a powerful punch, making them great for tight spaces.

Rapid Response:

Servo motors can react quickly to signals for starting, stopping, and reversing, which makes motion control systems way more dynamic.

Low Maintenance:

Since they have fewer mechanical parts that wear out (especially the brushless types), servo motors usually need less maintenance than regular motors.

Integration with Advanced Control Systems:

They fit right in with sophisticated digital control systems, allowing for the use of complex algorithms that improve how stable and effective the system is.

High Torque at Low Speeds:

Servo motors keep a steady torque even at low speeds, which is super helpful for applications that need fine control when moving slowly.

Reduced Heat Generation:

Modern servo motors are built to create less heat, lowering the chances of overheating and helping to extend the motor's life and the life of other parts.

Do Servo Motors Have Any Drawbacks?

While servo motors definitely have their perks, there are some points that might be seen as drawbacks in certain situations.

Higher Initial Cost:

Because of their precision engineering and advanced features, servo motors often come with a higher price tag compared to other motor types.

Complex Setup and Tuning:

Getting servo systems set up and tuned can be tricky because of their advanced feedback mechanisms and control systems.

Sensitivity to Environment:

Some servo motors can be sensitive to tough environments, especially those that aren’t designed to be dust or moisture resistant.

Potential for Cogging:

While it’s less common in high-quality models, some servo motors might experience cogging, which can mess with how smoothly the motor runs.

Noise:

In some setups, especially at high speeds, servo motors can be noisy, which could be a problem in places where noise is a concern.

Need for Precise Feedback Devices:

How well they perform really depends on the quality of feedback devices, like encoders or resolvers, which can bump up the overall cost and complexity.

Real-World Example:

Let’s say you’ve got a production facility that needs high torque at low speeds. In that kind of environment, servo motors could overheat or need extra cooling systems, which adds to maintenance and operational costs.

In industrial settings filled with dust or moisture, the precise parts in servo motors might wear out faster, leading to more frequent repairs or replacements.

So, while these aren’t exactly tech disadvantages, they are factors every facility using servo motors should keep in mind to ensure smoother operations, efficiency, and safety.

What Are Servo Motor Applications?

Servo motors are used in all sorts of industries because they’re efficient and super precise in control. Here are ten common applications:

Robotics:

Continuous rotation servos are key in building robotic arms. They provide precise control of movement and position, which is super important for assembly lines and surgical robots.

Manufacturing:

They’re used in CNC machines to make detailed and precise cuts and engravings in various materials.

Aerospace:

Servo motors help control the position of aircraft components like flaps, rudders, and other control surfaces.

Automotive:

In production lines, they assemble parts with high precision, ensuring the quality and reliability of automotive components.

Entertainment:

In animatronics for movies and amusement parks, servo motors give the precision needed for those lifelike movements.

Consumer Electronics:

They’re used in cameras for autofocus and image stabilization, making sure your pictures are sharp.

Medical:

Servo motors are critical in devices like MRI machines, where precise movement is super important for getting accurate images.

Defense:

In military drones and unmanned systems, they control navigational components and weapon systems.

Communications:

They adjust satellite dishes and antennas to make sure signal reception and transmission are optimized.

Research and Development:

Used in labs for precise positioning of instruments and samples.

Industrial Applications

Servo motors are essential for improving efficiency and precision in various industrial applications. They’re widely used in automation systems where controlling motion precisely is a must.

For example, in CNC machines, servo motors drive the exact movements needed for cutting, milling, and shaping parts with amazing accuracy. Also, in robotic arms on assembly lines, they provide the dexterity and repeatability needed to do complex assembly tasks over and over without getting tired.

Consumer Electronics

In the consumer electronics world, servo motors are super important for making devices function better and enhancing the user experience. They play a crucial role in cameras for autofocus and image stabilization, which helps capture clear images even in dynamic situations.

Plus, in home entertainment systems, servo motors operate intricate mechanisms in gaming consoles and virtual reality setups, providing realistic and responsive interactions for users.

Specialized Equipment

Servo motors also have significant applications in specialized equipment across different fields, showing off their versatility and adaptability. In the aerospace industry, they provide precise control over aircraft control surfaces like ailerons and rudders, which are vital for stability and maneuverability in flight.

They’re also key in medical devices, like surgical robots, where they help carry out complex, minimally invasive procedures with a level of precision that human hands can’t match.

Another cool application is in space exploration robots, where servo motors ensure accurate manipulation and data collection in outer space environments, which is crucial for missions on planets like Mars.

How to Control a Servo Motor?

Controlling a servo motor involves different methods to make sure it operates precisely and efficiently. At the heart of how servo motors work is pulse width modulation (PWM). This technique controls the motor’s movement using digital pulses.

With PWM, you can adjust the angle of the motor shaft by changing the length of the pulse sent to the motor, which helps with exact positioning.

You can also use pulse trains—a series of on/off pulses—to control the speed and position of the servo motor. These pulses are super important for determining the rotational angle and speed based on how often they’re sent and how long they last.

Control Signals: Analog and Digital

Servo motors can be controlled using both analog and digital signals:

Analog Signal:

These signals control the servo motor through a continuous voltage range. The voltage level is directly linked to a specific position of the motor’s output shaft. While this method isn’t as common today, it’s still used in situations where you need simple, less precise control.

Digital Signal:

More frequently used, digital signals send discrete, binary codes to the motor, which the control circuitry interprets. This method allows for more precise control and feedback mechanisms, which is super important in applications needing exact positioning.

The feedback mechanism is a key part of servo control systems. It usually involves a position sensor within the motor that sends a signal back to the controller, making sure the motor’s output matches the command signal perfectly. This closed-loop control system lets you correct errors in real-time, which is essential for keeping that precision servo motors are known for.

Using a Microcontroller

By using a microcontroller, developers can carefully program the servo motor's range of motion, speed, and torque.

Incorporating a microcontroller is a popular way to control servo motors, especially in complex systems like robotics and automation. Microcontrollers can send PWM signals to the motor based on input from sensors or a pre-programmed sequence.

They can handle multiple control signals, letting several motors operate at the same time—this is super important in advanced machines and robots.

Using a Servo Driver

A servo driver is key for controlling a servo motor. It acts like a middleman between the motor and its control system, turning control signals into precise motor actions. Here’s how it works:

Control Signal Reception:

The servo driver gets control signals, which could be in PWM, digital packets, or analog signals. These signals tell the motor the desired position, speed, or torque.

Signal Decoding and Power Modulation:

The driver decodes these signals and modulates the power sent to the motor’s coils, usually using an H-bridge setup. This allows for precise control over the motor’s speed and direction.

Motor Activation:

By adjusting the voltage and current to meet the motor's needs, the servo driver makes sure the motor reaches and holds the desired state with high accuracy.

Feedback Mechanisms and Their Importance

Feedback mechanisms are super important for accurately controlling servo motors, making sure they perform their intended movements precisely. These mechanisms usually involve sensors that keep track of the motor’s output and send this info back to the control system. Here’s why they matter:

Error Correction:

Feedback allows for real-time error correction, adjusting the motor’s operation if it strays from the desired path. This is crucial in applications like robotic arms where precision is key.

Enhanced Performance:

With feedback, servo motors can adapt to changing loads and conditions without needing manual recalibration, boosting their performance and versatility.

Types of Feedback

Common feedback devices include encoders and resolvers. Encoders give precise location and speed info, while resolvers are great for reliable performance even in harsh conditions.

Servo Motor Sizing and Selection

Choosing the right servo motor is super important for getting the best performance and efficiency in all sorts of applications.

The process involves looking at several key parameters like torque, speed, and power density. By understanding these five factors below, you can make sure the motor meets the specific needs of its intended use:

Torque Requirements:

The torque a servo motor can generate is super critical, especially in applications where it has to overcome heavy loads or start moving them. For example, in robotics, servo motors need to provide enough torque to move robotic arms while carrying a payload. Torque requirements are usually given in Newton-meters (Nm) and should match the peak demands of the application closely to prevent overloading the motor.

Speed Necessities:

Speed, usually measured in revolutions per minute (RPM), decides how fast the servo motor can run while keeping its torque. High-speed applications, like those in packaging machinery, need servo motors with high RPM ratings that don’t drop off in torque at higher speeds.

Power Density:

Power density refers to how much power a servo motor can deliver compared to its size. High power density is super important in applications with limited space, like aerospace, where motors need to provide max power without taking up too much room. Motors with high power density are also better for portable equipment, where weight and efficiency matter a lot.

Positional Accuracy:

Servo motors are often picked for their ability to control angular or linear position precisely. This precision is crucial in fields like semiconductor manufacturing, where exact movements are a must. Positional accuracy ensures the servo motor can reach and keep the desired position strictly based on the input control signals.

Feedback Mechanisms:

Good feedback mechanisms, like encoders or resolvers, are essential for monitoring and adjusting the motor’s position, speed, and torque. This feedback is super important for applications needing high precision, like CNC machinery or advanced robotics, making sure the motor operates within its defined limits.

Examples of Servo Motor Choices Based on Application:

Industrial Robotics:

In a robot arm used for assembly, a servo motor might be chosen with at least 15 Nm of torque and a speed requirement of up to 2500 RPM to handle dynamic loads with high precision.

Aerospace Actuators:

For flight control surfaces, servo motors need to be super reliable and precise. A typical servo used might have a power density that lets it work under different atmospheric pressures and temperatures without losing performance.

Automated Guided Vehicles (AGVs):

Servos in AGVs need motors that balance speed and torque so they can navigate and move materials efficiently across different factory floor terrains. A motor with a solid feedback system ensures precise navigation and control.

Installation and Maintenance of Servo Motors

Proper installation and regular maintenance are super important for making sure servo motors last longer and work efficiently. These steps help prevent common problems like overheating, wear and tear, and operational issues, ensuring your servo motor runs at its best for a long time.

Installation Steps for Servo Motors

Verify Specifications:

Before installing, check the servo motor specs against your system requirements to ensure compatibility in terms of power, torque, and control options.

Mechanical Mounting:

Securely mount the servo motor to a stable and aligned surface. This helps prevent vibrations and misalignment, which could lead to mechanical wear.

Electrical Connections:

Connect the motor to the power supply and control unit using the manufacturer’s wiring diagram. Make sure all connections are tight and insulated to avoid electrical issues.

Feedback Systems Setup:

Install and calibrate feedback devices like encoders or resolvers. Accurate feedback is super important for precise control of the servo motor.

System Integration:

Integrate the servo motor into the overall control system, making sure all components communicate effectively with each other.

Maintenance Tips for Servo Motors

Regular Inspection:

Periodically check the servo motor for signs of wear or damage. Look for loose connections, worn cables, or any signs of overheating.

Lubrication:

Depending on the type of servo motor, make sure moving parts are properly lubricated to reduce friction and wear.

Software Updates:

Keep the control software up to date to ensure compatibility and optimize the motor’s performance.

Temperature Checks:

Monitor the operating temperature of the servo motor. Too much heat can mean overloading or inefficiency in the motor.

Performance Monitoring:

Regularly check how accurate and responsive the servo motor is. Any deviations from expected performance might indicate underlying issues.

What are Common Servo Motor Problems and How to Troubleshoot Them?

Routine checks and maintenance can really extend the life of a servo motor and boost its performance. Here are some common problems you might run into, along with their potential causes and solutions:

Overheating

Causes: Overheating can happen due to too much load, bad ventilation, or environmental factors.

Solutions: Make sure the motor isn’t overloaded, improve cooling around the motor, and check for any environmental factors causing high temperatures.

Abnormal Noises

Causes: Worn bearings, misalignment, or loose mechanical parts can create unusual noises.

Solutions: Replace worn bearings, realign the motor and any attached components, and tighten any loose parts.

Smells Bad or Produces Smoke

Causes: Electrical failures like short circuits or overloads can lead to burning smells or smoke.

Solutions: Turn off the system immediately, check electrical connections for damage, and replace any faulty wiring or components.

Reduced Torque

Causes: Reduced torque could be due to an inadequate power supply, worn components, or feedback misalignment.

Solutions: Check the power supply for proper voltage, replace worn mechanical parts, and recalibrate feedback devices.

How Much Does a Servo Motor Cost?

The cost of servo motors can vary a lot based on several factors like their size, specifications, and the specific applications they're designed for. Usually, prices can range from as low as $10 for basic models to over $2000 for high-end, specialized servo motors used in advanced industrial applications.

Here are the five main factors that influence the price of a servo motor:

Torque and Speed:

Motors made to handle higher torque and speed usually cost more because of the stronger materials and advanced design needed.

Precision and Control:

Higher precision and more sophisticated control features, like those needed for robotics or CNC machines, increase the cost.

Brand and Quality:

Well-known brands often charge more because of their proven reliability and performance, while lesser-known brands might offer competitive prices but with varying quality.

Additional Features:

Features like built-in controllers, feedback sensors, and customizations for specific environments (like being waterproof or explosion-proof) also add to the price.

Volume of Purchase:

Buying in bulk usually reduces the cost per unit, which is a common practice in industrial settings.

How Long Does a Servo Motor Last?

Servo motors are generally durable, and with proper maintenance, they can last between 10,000 to 20,000 hours of operation. That’s about 5 to 10 years, depending on how intensely they’re used and the conditions they’re in. In a controlled environment with regular maintenance, these motors can even last over 10 years.

However, the lifespan of a servo can be significantly affected by a few factors:

Application:

Servo motors used in high-precision and high-stress environments, like robotic arms or aerospace applications, may wear out faster and need more frequent maintenance.

Maintenance:

Regular maintenance, like lubrication and adjustments, can help prevent common problems and extend the motor’s life.

Operating Conditions:

Factors like temperature, humidity, and exposure to corrosive substances can also impact how long a servo motor lasts.

What are the Power Requirements for Servo Motors?

One important part of servo motor design and use is understanding their power requirements, which can vary depending on the size of the motor and its specific application. Usually, most servo motors run on a +5V power supply, but this can change.

Power Specifications

Voltage Range: Most servo motors are made to work within a voltage range of 4.5V to 6V. However, bigger servo motors might need higher voltages to perform as expected.

Current Draw: This can vary a lot based on the motor’s load and how efficient it is. When the motor is at maximum load, it draws more current, which is something to consider when designing the power supply system to avoid overheating and possible damage.

Electrical Power Sources

Batteries: Many servo motors are powered by batteries, which makes them great for portable applications like robotics and remote-controlled devices.

Power Adapters: For stationary applications, servo motors can be powered by AC adapters or directly connected to AC power sources, especially in industrial settings.

Considerations for Power Supply

Consistency and Reliability: It’s super important to have a stable and reliable power source to keep servo motors efficient and long-lasting.

Protection Against Fluctuations: Knowing about positive or negative voltage, along with regulators and capacitors, can help manage fluctuations in the power supply, which is key for precision devices.

Advanced Topics in Servo Motors

Diving into the details of advanced servo motor technologies gives a better idea of how these components are crucial for precision-driven applications.

High Performance and Compact Design

Servo motors are essential in modern machinery, where high performance and compact design are must-haves. Torque density is a big factor here, showing the torque a motor can create in relation to its size.

Having a higher torque density means more power without making the motor bigger, which is super important in space-limited applications like aerospace and robotics.

Torque Density: Torque density is a key aspect that affects the design and functionality of servo motors. It’s the amount of torque a motor can produce for each unit of volume. Higher torque density means a more efficient motor that can give more power without increasing in size. This is especially important in places where space is tight but high power output is needed, like in robotics and aerospace.

Cogging: Cogging, or torque ripple, is that jerky motion servo motors might show because of the interaction between the motor’s magnets and the iron slots of the stator. This can lower the precision of the motor’s operation, which isn’t good in situations where smooth motion is required, like in optical and lens focusing systems. Advanced servo motors often use design tricks like skewing the stator slots or specialized magnet materials to reduce cogging, improving the motor’s smoothness.

Feedback Devices: The importance of feedback devices in servo systems can't be stressed enough. These parts, including encoders and resolvers, give crucial position and speed feedback to the motor controller, ensuring the motor runs within its set parameters. The type of feedback device chosen affects the motor’s accuracy, resolution, response time, and overall efficiency. For example, optical encoders provide high resolution and are perfect for applications needing precise position control, while resolvers can handle tougher environments, making them great for heavy industrial applications.

Servo Motors vs. Other Motor Technologies

When we compare servo motors with other motor types, like stepper and induction motors, we can see their unique advantages and how well they fit different applications.

• Efficiency: Servo motors are usually more efficient than stepper motors, especially at higher speeds. Stepper motors work well for tasks needing simple and sturdy control at lower speeds, but servo motors shine in applications that require the same speed and precise position control, offering better efficiency and performance.
• Control: Thanks to their advanced feedback systems, servo motors provide excellent control over angular position, speed, and acceleration compared to stepper and induction motors. This makes them the go-to choice for tasks needing dynamic speed and position control, like robotic arms and automated assembly lines.
• Applications: Induction motors are mostly chosen for applications that need high durability and low costs for high power, but they aren't very precise, making them good for things like pumps and fans. On the other hand, servo motors are perfect for tasks where precision and control are super important. Their use in fields like robotics, aerospace, and high-speed automation really shows how versatile and capable they are in tough operating conditions.

Servo vs. Stepper Motors

Servo and stepper motors often get looked at for the same jobs because they can provide precise positioning. But they work differently and perform quite differently too:

• Control and Precision: Servo motors give precise control of angular position, speed, and acceleration. They use a feedback system to correct any differences between where the motor should be and where it actually is. This makes them perfect for jobs where precision is key. In contrast, stepper motors follow a simple open-loop system, stepping through a set sequence, which can lead to position errors if any steps are missed.
• Torque and Efficiency: Servo motors usually provide more torque at higher speeds than stepper motors, which lose torque as their speed increases. This, along with their energy efficiency, makes servo motors a better choice for applications that need high-speed operations with varying loads.
• Cost and Complexity: Stepper motors are generally cheaper and simpler in design, making them budget-friendly for tasks that don’t need the high precision and control of a servo system. Servo systems might cost more, but they offer significant value with greater flexibility, efficiency, and precision.

What Is The Difference Between A Servo Motor And An Induction Motor?

Induction motors are mainly designed for continuous running applications with a constant load. They are super popular in industrial settings because they're durable, simple, and cost-effective. Here are some key differences between them and servo motors:

• Feedback and Control: Servo motors use feedback to achieve precise control over position, speed, and torque. This makes them really effective in situations where dynamic control is important. On the flip side, induction motors don’t provide precise control over position and speed, so they’re typically used in scenarios where that level of control isn’t crucial.
• Power and Performance: Induction motors are generally more robust and can handle higher power loads and tougher operating conditions without needing complicated control systems. This makes them great for things like pumps, fans, and other machines that run at a constant speed and don’t require frequent starts and stops.
• Application Specificity: Servo motors are the go-to choice for applications that need a high dynamic response, like robotics and CNC machines. In contrast, induction motors are preferred in situations that call for durability and reliability without needing precise control, like heavy industrial machinery.

What Is The Difference Between A Servo Motor And A Regular Motor?

Here’s how servo motors stack up against more standard types of motors, like DC and AC motors:

• Control Systems: Servo motors come with a sophisticated control system that includes sensors for precise position feedback, which allows for exact control over the motor’s angular or linear position. Regular motors, such as DC or AC motors, usually operate without these feedback systems, making them less precise but simpler and often more robust.
• Application Specificity: Servo motors shine in applications that need precise speed, position, or torque control, like robotics or automated manufacturing systems. On the other hand, regular motors are commonly used in applications where such precise control isn’t necessary, like fans, pumps, or conveyors.
• Complexity and Cost: Because of their complex internal mechanisms, servo motors are generally more expensive and harder to maintain than regular motors, which are simpler in design and cheaper to produce and maintain.
• Performance: The feedback mechanisms in servo motors allow for dynamic adjustments while they’re running, reducing errors and improving performance efficiency. Regular motors don’t make real-time adjustments, which can lead to inefficiencies in applications that need high precision.

The Role of Electrical Signals and Feedback

Electrical Signals: These are like the instructions the control system sends to the servo motor. They control everything the motor does—how fast it goes, where it moves, and how it behaves. Without these signals, you wouldn’t get the precise control servos are known for.

Motion Control: This is where the magic happens. The servo translates those electrical signals into actual movement. With the help of gears and smart control algorithms, the motor can move to an exact angle or distance with pinpoint accuracy.

Feedback Systems: This is super important for making sure the servo’s output matches the commands. Some common feedback methods include:

Encoders: These give precise feedback on the motor shaft’s position or speed.

Potentiometers: A simpler type of feedback, usually for less intense applications.

Setpoint and Feedback Signal: The setpoint is the target, the outcome the control signal is asking for. The feedback signal is the actual response from the servo. The system constantly compares the two and makes adjustments so the servo can hit the exact position needed.

The History of Servo Motors

The idea of servo motors goes way back to the early 1900s. Over time, they’ve gone through some pretty cool changes to become a key part of modern engineering. At first, they were made for military and industrial use, but their ability to control things so precisely quickly made them useful in all kinds of areas.

1920s: The word “servo” was first used to talk about control systems in steering for ships.

1930s: The first real servo systems were made to automatically control airplanes, using feedback systems.

1950s: New electronics and control theories made servo systems smaller and cheaper, which opened up more commercial uses for them.

1960s: Switching to solid-state electronics was a huge leap forward in how servo motors were designed and worked.

1982: A digital servo control system (Patent US4350959A) came out, making servo motors even more accurate in robots and CNC machines.

Conclusion

Servo motors provide top-notch control and precision, making them perfect for applications where these aspects really matter.

Getting a clear picture of the differences between servo motors and other motor types highlights just how important it is to choose the right motor for your specific needs.

Thanks to innovations in digital control and advanced systems, servo motors are becoming even smarter and more responsive. The use of high-tech feedback mechanisms, like advanced encoders and resolvers, is boosting the precision of position control. This enhancement allows servo motors to handle complex tasks with great efficiency and minimal errors.
