In modern electronic devices, a stable voltage output is important for proper operation. The L78L05ABUTR low dropout linear regulator is used in various power management designs because it is reliable and efficient. This article will introduce its features, application scenarios, and advantages in power management.

Introduction Of STMicroelectronics L78L05ABUTR

The L78L05ABUTR is a three-terminal positive voltage regulator with built-in current limiting and thermal shutdown, making it super durable. With enough heat dissipation, it can provide up to 100mA of output current. This regulator is designed for fixed voltage regulation in a variety of applications, including on-board or local regulation to reduce noise and address issues related to single-point regulation. Additionally, it can work with power pass elements to create high-current voltage regulators. It's a more efficient alternative to Zener diode/resistor combinations, offering lower quiescent current and reduced noise.

L78L05ABUTR Features

• Thermal Overload Protection：The voltage regulator shuts down when it gets too hot, which prevents damage and extends the life of the components.
• Short Circuit Protection：Short-circuit protection keeps the device and connected circuits safe from damage caused by short circuits.
• No External Components Required：The L78L05ABUTR can be used without any other parts, making it easier to design circuits and reducing the overall cost.
• Choice of ±4% (A) or ±8% (C)：The device has different output voltage regulation tolerances depending on the version.

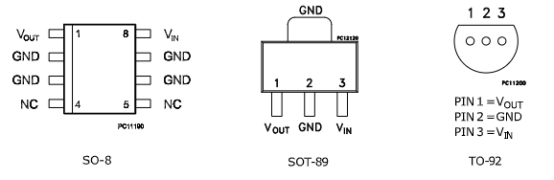

L78L05ABUTR Pinout

L78L05ABUTR CAD Model

Symbol

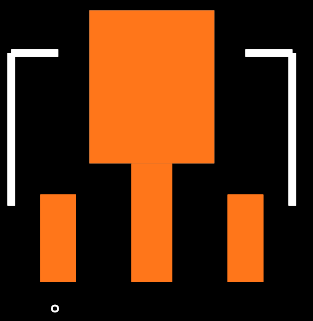

Footprint

3D Model

L78L05ABUTR Manufacturer

STMicroelectronics is a top global company known for developing new products and solutions in areas like smart mobility, power management, IoT, and connectivity. It is based in Plan-les-Ouates, near Geneva, Switzerland. The company designs, manufactures, and markets semiconductor ICs for many applications, including industrial automation, motor control, security systems, automotive, consumer electronics, communication, computing, and healthcare. STMicroelectronics has one of the industry's most comprehensive technology portfolios. It plays a key role in powering cutting-edge electronic solutions. Its global network of manufacturing facilities ensures a strong, flexible supply chain. The company is dedicated to sustainability and transparent communication with its stakeholders.

L78L05ABUTR Application

The wide range of application scenarios of L78L05ABUTR reflects its adaptability in different fields:

• Consumer Electronics: Used for cell phone chargers, audio devices and other devices that require stable power supply.
• Embedded System: The L78L05ABUTR is commonly used in microcontrollers and sensor modules to ensure stable power supply for embedded systems.
• Industrial Automation: Suitable for sensors and controllers in industrial automation equipment, providing stable and reliable power supply for these systems.
• Automotive Electronics: The L78L05ABUTR can effectively ensure the stability of power supply in low-power automotive electronic systems.

Advantages of the L78L05ABUTR in Power Management

Compared to switching power supplies, the L78L05ABUTR has lower EMI, which is critical for sensitive circuits that require high precision. In addition, thanks to its low dropout performance and thermal protection, it is able to provide a stable output even when the input voltage is low or the temperature is too high. For designers, this greatly simplifies the challenges in power supply design while improving device reliability.

Where can I find the STMicroelectronics L78L05ABUTR?

You can find the STMicroelectronics L78L05ABUTR at electronics stores like JMChip Electronics. JMChip Electronics is selling L78L05ABUTR original authentic products, the price is very competitive, is the ideal choice for your purchase!

Conclusion

STMicroelectronics' L78L05ABUTR is a reliable and efficient linear regulator that provides a stable power management solution for a wide range of application scenarios. It has a wide range of applications in many fields, from consumer electronics to industrial automation to embedded systems. If you are looking for a reliable voltage regulator, the L78L05ABUTR is a must-have choice.

With the L78L05ABUTR, you can easily design a more efficient and stable power management system to ensure long and stable operation of your equipment. The multiple protection features and superior performance of this regulator make it an ideal choice for any project that requires a stable 5V voltage output.
