Power management is important in modern electronic devices. A stable and efficient power supply is essential for industrial, consumer, and automotive systems. The TPS54231DR is a high-efficiency DC-DC buck regulator that meets these needs.

Introduction Of Texas Instruments TPS54231DR

The TPS54231DR is a non-synchronous buck converter with an integrated high-side MOSFET. It has an eco mode to save power when there's little load. It also has a low shutdown current, making it ideal for battery-powered applications. The device makes it easier to calculate external compensation and reduces the number of components needed. It supports ceramic output capacitors and can be adjusted to work with different resistor values. It also includes a protection circuit for voltage spikes. For protection against overload conditions, the TPS54231DR employs current limiting, frequency foldback, and thermal shutdown mechanisms.

TPS54231DR Features

• High efficiency with Eco-Mode™：It's very efficient, even when there's not much load. It uses a pulse-skipping Eco-Mode™ to save power and make the battery last longer.
• Slow-Start Limits: You can adjust the slow-start time to control the current when the system starts up. This makes the system more stable and reduces stress on the components.
• Programmable UVLO threshold: It has a programmable undervoltage lockout to protect against low voltage and prevent unexpected shutdowns.
• Overvoltage protection: It has built-in protection for sensitive components from voltage spikes and transients, making it more reliable and long-lasting.
• It has lots of protection features: It has cycle-by-cycle current limiting, frequency fold-back, and thermal shutdown protection, which protects against overcurrent, thermal stress, and excessive operating conditions.
• Integrated High-Side MOSFET: Supports up to 2A output current and generates minimal heat.
• Low current: It has a low shutdown current of 1µA, which extends battery life and saves power when idle.
• Eco-friendly design: It's green because it doesn't contain antimony or bromine.

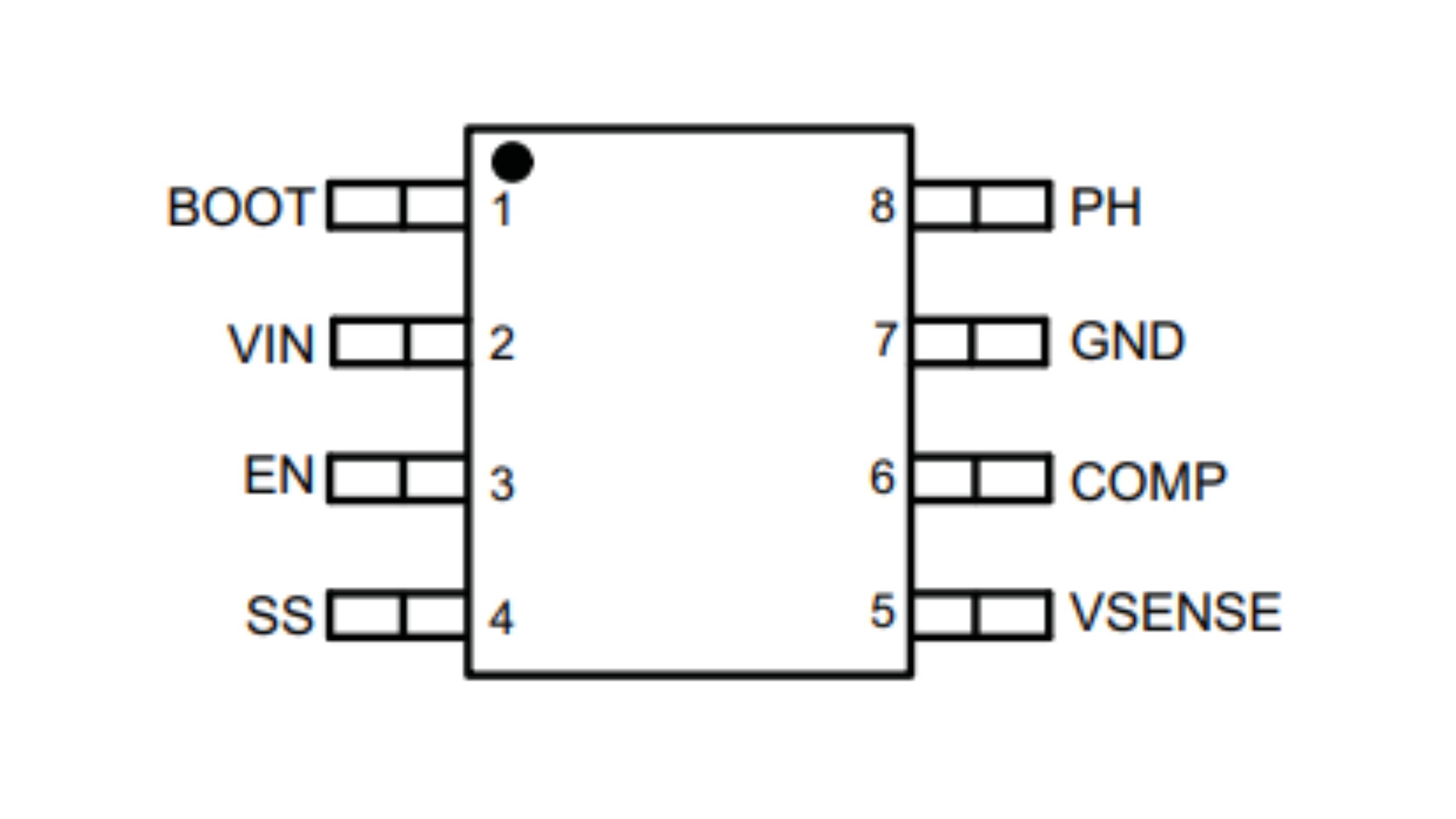

TPS54231DR Pinout

TPS54231DR CAD Model

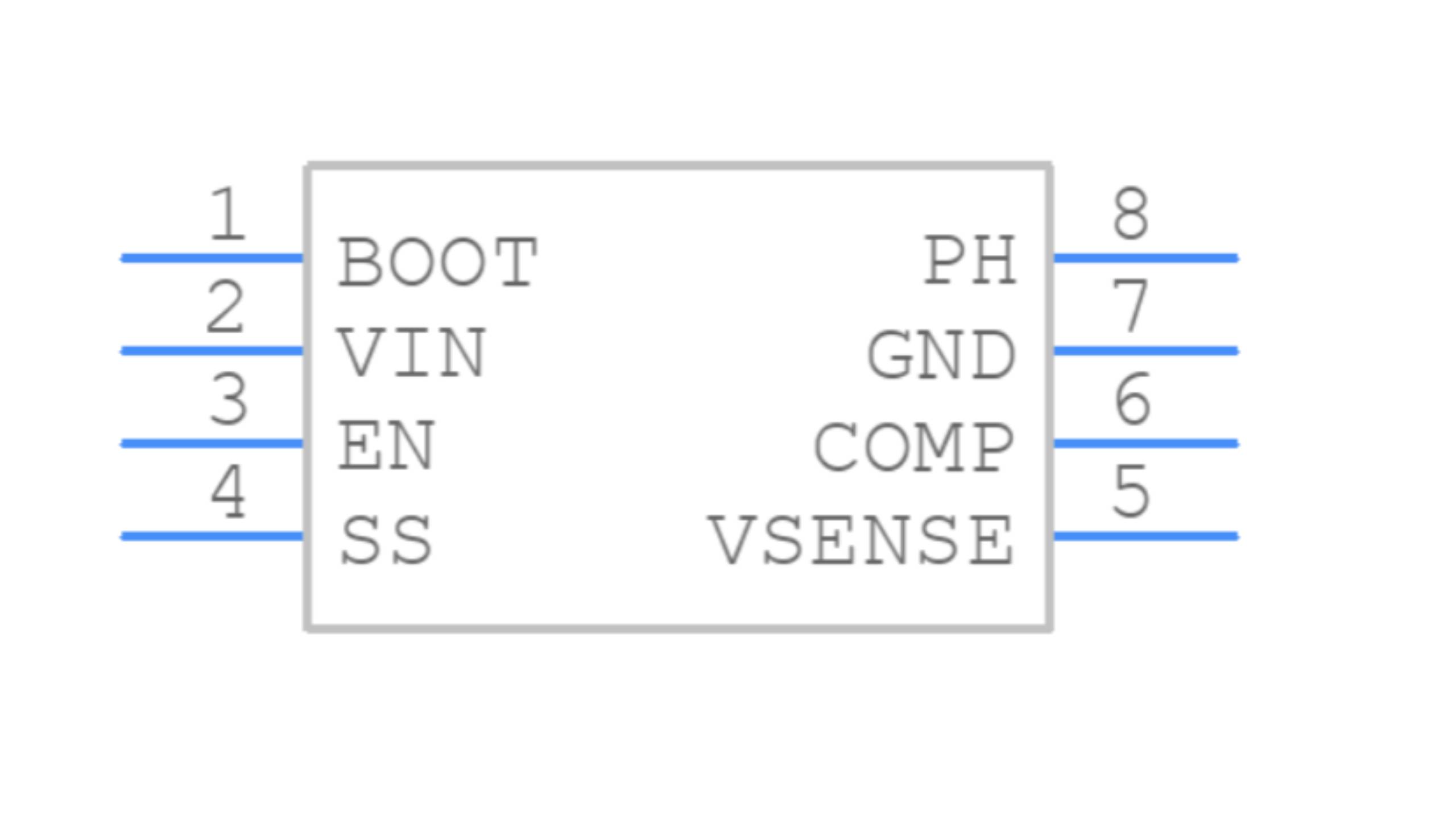

Symbol

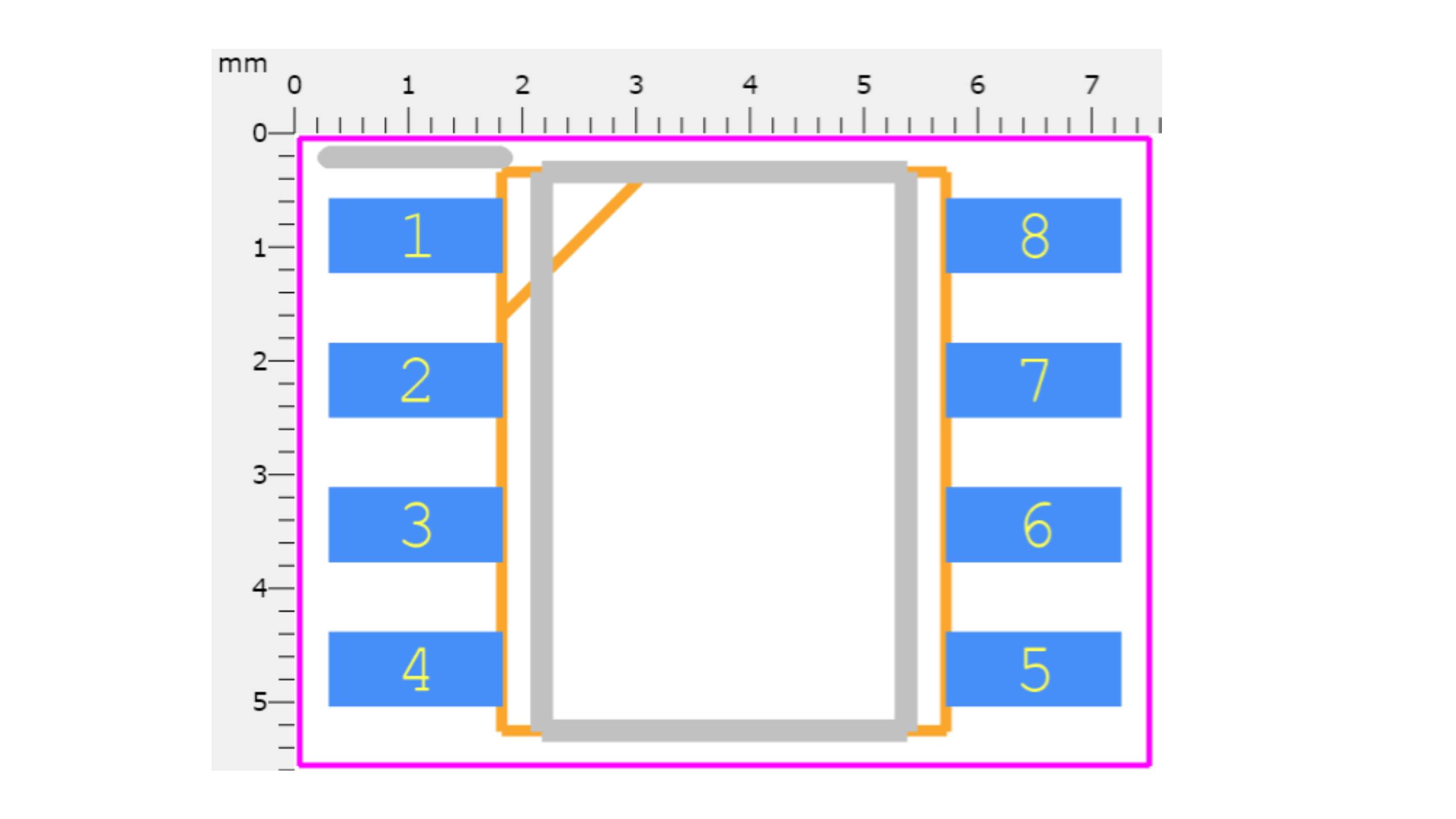

Footprint

3D Model

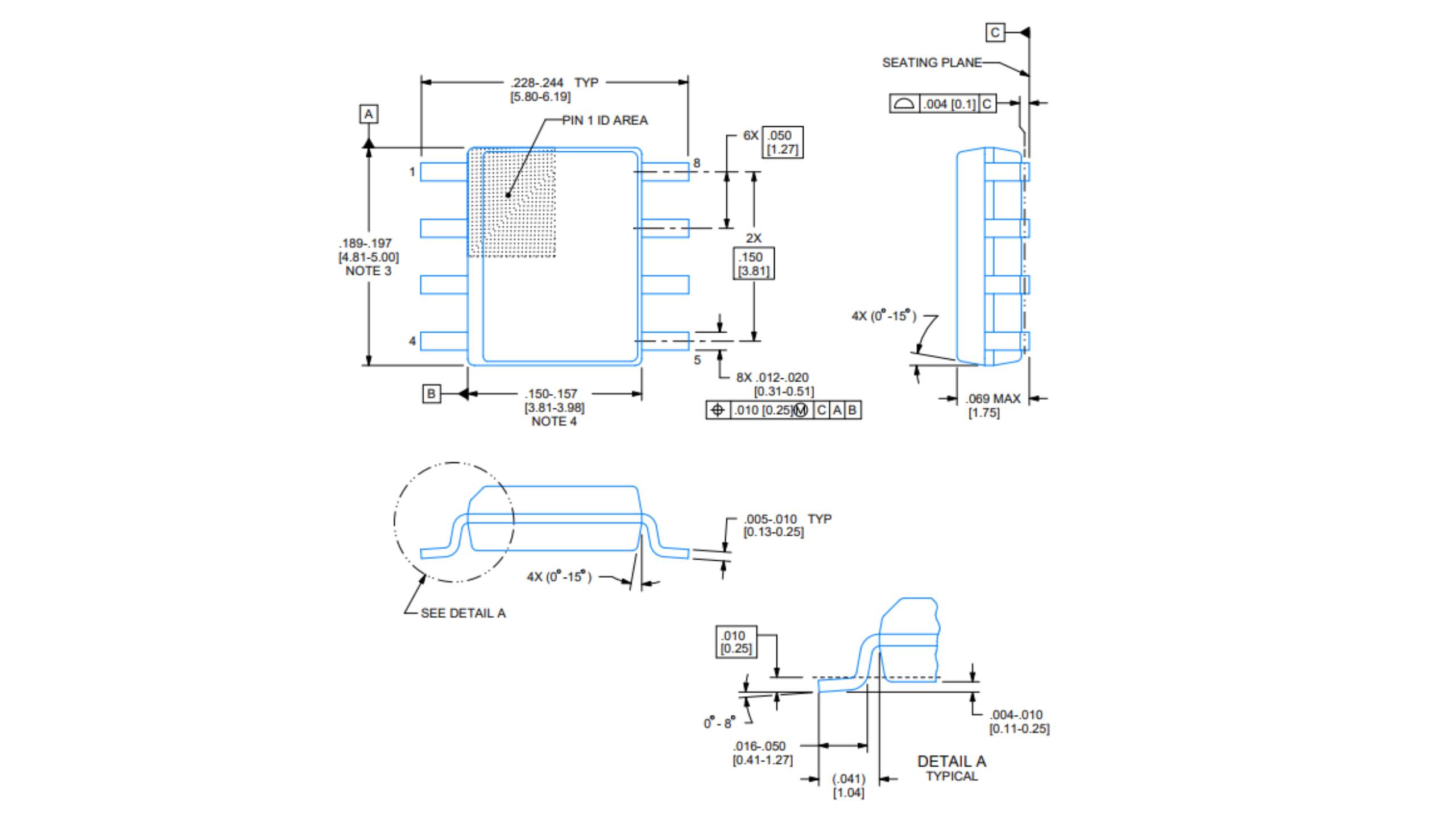

TPS54231DR Package

TPS54231DR Manufacturer

Texas Instruments Incorporated, headquartered in Dallas, Texas, is a leading global semiconductor company renowned for its wide array of analog and digital integrated circuits (ICs). TI's diverse product portfolio includes operational amplifiers, data converters, power management ICs, digital signal processors (DSPs), and microcontrollers. Their solutions cater to various applications across consumer electronics, automotive systems, communications, industrial automation, and medical devices. Known for their innovation, Texas Instruments continually advances semiconductor technology to meet the dynamic needs of modern electronic systems.

TPS54231DR Application

Industrial Systems

• DC-DC power conversion：Converts high input voltages to low output voltages for industrial equipment and control systems.
• Automation equipment: Powers PLCs, sensors, and other automation devices.

Automotive Systems:

• On-board power supplies: Provides regulated power for automotive electronics, including infotainment and ADAS.
• Battery Management: Converts battery voltage for automotive components.

Communication equipment.

• Networking devices: Provides power to routers, switches, and other networking hardware.
• Telecommunications: Powers base stations and other critical telecoms.

Consumer Electronics:

• Portable devices: Used in battery-operated devices for efficient power management.
• Home appliances：Provides power to home electronics and appliances.

Power Management Systems:

• Voltage regulation: This is used in applications where precise voltage regulation is needed, such as power supplies and distributed power systems.

TPS54231DR Product Advantages

The TPS54231DR is an efficient buck regulator that offers excellent performance and is easy to integrate. It reduces power consumption and the need for external components, cutting design and manufacturing costs. This design makes it easier for engineers to design circuits and develop products more efficiently, while reducing system size and cost. The TPS54231DR's built-in protection features make it reliable in harsh environments. These protection mechanisms ensure the system is stable and safe. The TPS54231DR provides reliable power in industrial equipment, communication systems, and consumer electronics. It is an ideal choice for electronic design engineers because it is efficient, integrated, and has excellent protection features.

Conclusion

The TPS54231DR is a high-performance buck regulator for industrial, consumer electronics, and automotive applications. It's efficient, has a wide input voltage range, and has great protection features, making it ideal for many power management solutions. The TPS54231DR is a cost-effective power management solution.

Thanks for reading. If you have any questions about TPS54231DR, want to know more details or buy it now, please visit our official website JMChip.
