Introduction

Pulse transformers are important in modern electronics. They are used in many different devices, including power supplies, communication systems, and industrial control. This article will explain how they work, what they do, and how to choose the right one for your needs.

How Pulse Transformers Work

A pulse transformer is a transformer for pulse signals. It transfers pulse signals and keeps the signal waveform intact. Pulse transformers handle high-speed signals and are used in high-frequency applications.

Pulse transformers send signals through changes in the transformer's magnetic field. Its design allows it to operate at high frequencies while isolating the input and output circuits. This isolation prevents the circuits from interfering with each other and guarantees signal stability.

Main Functions of Pulse Transformers

• Signal isolation

The pulse transformer provides electrical isolation. It can isolate DC voltage between circuits, avoiding interference and damage. This ensures the safety and stability of the system.

• Pulse shaping

Pulse transformers can also shape pulses to keep their original shape and characteristics. This is important for fast signal transmission, especially when a precise response is needed.

• Impedance Matching

Impedance matching affects signal quality during high-speed data transmission. Pulse transformers adjust the input and output impedance to minimize signal loss and ensure efficient signal transmission.

Typical applications for pulse transformers

• Switching Power Supplies

Pulse transformers are used in switching power supplies to transmit high-frequency signals and convert energy. It transfers electrical energy from the primary to secondary circuit while maintaining efficient conversion.

• Digital communication

Pulse transformers are used in digital communication systems like Ethernet and LAN to help eliminate electrical noise and keep signals clear.

• Radar and Industrial Systems

Pulse transformers are used in radar and industrial control systems to process high-speed signals. Pulse transformers must have excellent frequency response and high isolation performance.

Key Points for Purchasing Pulse Transformers

When choosing a pulse transformer, consider the following:

• Frequency response: First, choose the right frequency response range. Different applications need different frequencies, especially for high-speed data and switching power supplies.
• Isolation Voltage: Make sure the pulse transformer provides enough electrical isolation, especially in high-voltage situations.
• Power rating: Pulse transformers must meet power requirements to improve system reliability and efficiency.
• Quality and reliability: Choose certified products like UL and RoHS-compliant pulse transformers for stability and safety.
• Supplier Reputation: Buy from trusted brands like Murata, TDK, and Pulse Electronics for quality and support.

How to Size a Pulse Transformer:

1. Identify the full-load current, voltage, and estimated MVA capacity.

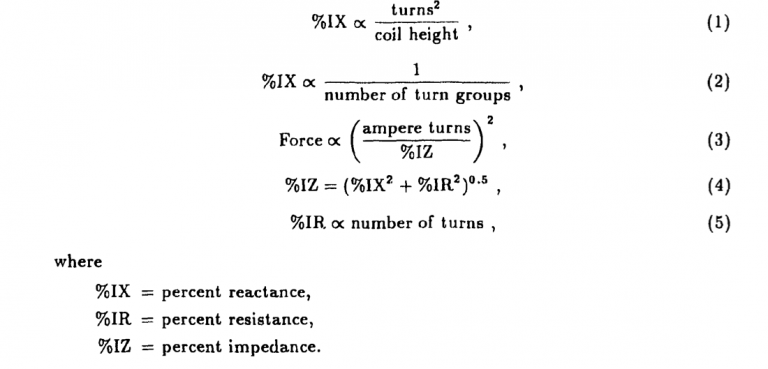

2. Use a standard %IZ value corresponding to the MVA capacity determined in step 1 (refer to the illustration below).
3. Compute the combined impedance values of both the transformer and the power grid.
4. Calculate the voltage drop for the combined impedance and add it to the full-load voltage identified in step 1 (refer to the illustration below).
5. Recalculate the transformer's MVA rating, this time using the no-load voltage from step 4 instead of the full-load voltage from step 1 (refer to the illustration below).

Recommended Brands

• Murata

Murata is a top global maker of electronic parts. It makes high-quality pulse transformers for use in communications and industry.

• TDK

TDK has lots of experience making electronic components. Its pulse transformers are used in signal processing and power conversion.

• Pulse Electronics

Pulse Electronics specializes in networking and power applications, and its pulse transformers are suitable for communication systems such as Ethernet and LAN.

• Coilcraft

Coilcraft offers reliable, low-leakage pulse transformers for communications, RF, and power conversion.

• Wurth Elektronik

This brand offers pulse transformers for power and signal isolation with high performance and excellent frequency response.

Conclusion

Pulse transformers are key components in modern electronic systems. They are used in communication, power supplies, and control. When shopping for pulse transformers, know what you need, check the specs, and choose a well-known brand for long-term reliability. Pulse transformers are useful in many projects, including high-performance communication systems and industrial power supplies.

Frequently Asked Questions (FAQ)

What is the difference between a pulse transformer and a conventional transformer?

Pulse transformers are used for transmitting high-speed signals. They are suitable for high-frequency applications. Ordinary transformers are used for converting low-frequency alternating current. They are designed to handle stable power signals.

When choosing a pulse transformer, how do I determine if the frequency response is appropriate?

The frequency response depends on the application. Communication equipment and radar systems need a higher frequency response, up to several hundred kHz to several MHz. Choose a pulse transformer that matches the system's operating frequency for distortion-free signal transmission.

Can pulse transformers be used in DC circuits?

Pulse transformers can't be used in pure DC circuits because they work with AC signals. If used in a DC system, they need a switching circuit to generate an AC pulse signal.

How can I ensure that a pulse transformer is safe to use in a high voltage application?

Make sure the pulse transformer you choose has enough voltage isolation. For high voltage, the isolation level should be several times higher than the operating voltage. Choose a product that complies with relevant standards.

How does the leakage inductance of a pulse transformer affect performance?

Leakage inductance is the loss of magnetic flux from a transformer, which can affect the signal and reduce efficiency. A lower leakage inductance means a better signal. It is important to choose a pulse transformer with low leakage inductance to maintain the integrity of the high-frequency pulse signal.

What are the typical causes of pulse transformer failure?

Pulse transformers can fail due to overheating, overloading, or being used too long. Check the pulse transformer regularly to make sure it is working properly.

Why use pulse transformers in communications equipment?

Pulse transformers in communication equipment isolate signals and prevent interference. They improve signal quality and stability in high-speed data transmission systems like Ethernet and LAN.
