Ever wondered how your car responds to steering? The steering angle sensor is a small device that measures the steering wheel's angle and sends the info to the vehicle’s ECU. It's crucial for safety and systems like ADAS, ensuring precise steering control. This article explains what steering angle sensors are, how they work, and why they matter.

What is a Steering Angle Sensor?

In simple terms, a steering angle sensor acts as a bridge between your steering wheel and your car’s computer system. When you turn the wheel, you're telling the car where to go, and the sensor picks up on this. It tracks the direction, speed, and degree of your steering and sends that information to the car’s computer. The computer then uses this data to adjust the wheels, allowing for accurate steering control.

There are two types of steering angle sensors: analog and digital. Analog sensors typically use a potentiometer, where a wiper moves along a resistive track as the wheel turns, changing the resistance and output voltage. This voltage corresponds to the wheel’s position, offering a simple way to measure steering input.

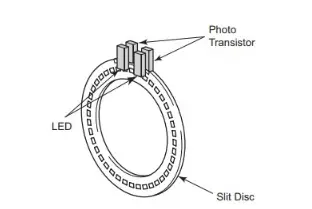

Digital sensors, on the other hand, often use LED technology for higher accuracy and reliability. These sensors rely on optical encoding, where a light source and photodiode detect the movement of a coded disc attached to the steering shaft. Digital sensors are more precise, making them perfect for modern vehicles to enhance performance and safety.

How Steering Angle And Steering Torque Sensors Work

The steering angle sensor (SAS) is responsible for determining the driver's steering intentions by aligning the steering wheel's position with the vehicle's wheels. It is typically located in the steering column and consists of multiple sensors within a single unit to ensure redundancy, precision, and effective diagnostics.

Analog sensors detect the steering angle and turn direction through voltage variations, while digital sensors utilize LED light to measure the steering input angle. The sensor generates at least two signals, usually out of phase, and sends them to the ESC module, which uses an algorithm to ensure accurate alignment between the steering wheel and the wheels.

Additionally, the SAS tracks the speed at which the steering wheel is being turned. Rapid steering is common at low speeds but unusual at highway speeds. If the steering wheel is turned quickly while driving on a highway, the ESC may interpret this as a loss of control over the vehicle's direction.

In vehicles equipped with ESC and electric power steering (EPS), there might also be a steering torque sensor. This sensor measures the amount of force applied by the driver to the steering wheel, functioning similarly to a torsion bar, which slightly twists as the driver turns the steering wheel or steering shaft.

What Are the Signs of a Faulty Steering Angle Sensor?

1. Check Engine Light: The engine control module and traction control systems rely on input from the steering angle sensor. A malfunctioning sensor may cause the check engine light to turn on.
2. Traction Control Light: Since the traction control system uses data from the steering angle sensor, incorrect sensor information can cause the traction control light to activate.
3. Misaligned Steering Wheel: A defective sensor may provide inaccurate steering wheel angle readings, leading to misalignment, which can result in the vehicle pulling to one side or uneven tire wear.
4. Faulty Stability and Traction Control Systems: A failing steering angle sensor may disrupt the proper functioning of stability and traction control systems, causing unexpected issues with vehicle stability and traction.
5. Strange Steering Wheel Feel: Drivers may notice the steering wheel feels heavy, hard to turn, loose, or less responsive due to incorrect steering angle sensor readings affecting vehicle stability.
6. Excessive Tire Wear: A malfunctioning sensor can alter the way tires interact with the road, resulting in uneven tire wear and diminished performance.
7. Inaccurate Steering Wheel Display: If the steering angle shown on the dashboard doesn’t correspond to the actual steering wheel position, it could point to a problem with the sensor.

How To Reset Steering Angle Sensor Without Scanner?

To reset the SAS without using a scanner, you can perform a self-calibration process. The specific steps may vary depending on your vehicle model, but the general procedure usually follows these steps:

1. Park your vehicle on a flat surface.

2. Turn the ignition to the ON position without starting the engine.

3. Fully turn the steering wheel to the left, then to the right.

4. Repeat the third step three times.

5. Turn the ignition OFF.

This process should reset the SAS. If the issue persists, you may need to consult a qualified mechanic for further diagnosis or repairs.

Conclusion

The steering angle sensor is a vital component in modern vehicles, playing a key role in maintaining precise steering control, stability, and safety. By continuously monitoring the steering wheel's position and speed, this sensor works hand-in-hand with other systems like traction control, ESC, and electric power steering. Recognizing the signs of a faulty sensor, such as warning lights or unusual steering behavior, is crucial for addressing issues early and maintaining safe vehicle performance. Regular maintenance and timely resets can help ensure that your steering angle sensor functions optimally, keeping you in control on the road.
