In the world of electronics and automation, sensors play a crucial role in collecting and transmitting data. Two primary types of sensors, analog and digital, serve different purposes and function in distinct ways. Understanding the key differences between these sensor types is essential for selecting the right technology for specific applications. This article explores the characteristics, advantages, and limitations of both analog and digital sensors, helping you make informed decisions for your projects.

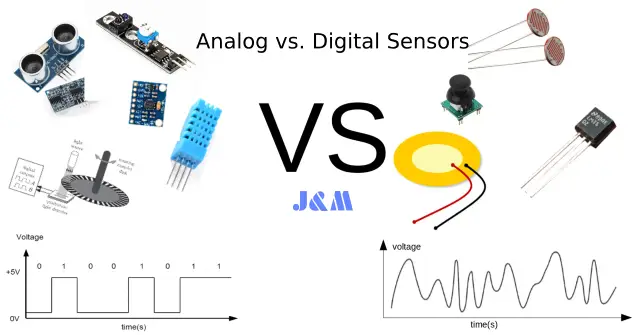

Analog vs. Digital Sensors

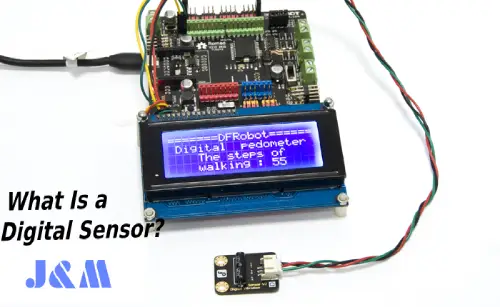

What Is a Digital Sensor?

So, digital sensors are super important in today’s tech world and for gathering data. They’re like the middlemen that take all sorts of physical stuff—like temperature, pressure, light, or humidity—and turn it into digital signals. This way, the data can be processed and used for tons of different things. To really get how analog sensors differ from digital ones, you need to know what digital sensors are all about.

What Is a Digital Sensor?

At the heart of it, a digital sensor measures some physical quantity and then converts that measurement into a digital format. Basically, it takes that analog info and breaks it down into discrete digital values, usually in binary code (you know, 0s and 1s).

Here are some key things to know about digital sensors:

•Discrete Output: Digital sensors give you distinct, quantized values. They usually show these values in binary code, making them perfect for digital systems, microcontrollers, and computers.

•Accuracy and Precision: These sensors are known for being really accurate and precise. They provide reliable measurements, which is super important in situations where data integrity matters a lot.

•Digital Signal Processing: A lot of digital sensors have built-in digital signal processing features. This means they can do things like calibration, filtering, and data compression, making them really flexible for different uses.

•Communication Interfaces: Many digital sensors come with communication interfaces like I2C, SPI, or UART. This makes it easy for them to connect with other digital devices or microcontrollers, allowing smooth data transfer and integration into bigger systems.

•Compatibility with Microcontrollers: Digital sensors work great with microcontrollers and digital systems. They can link up directly with these devices, which makes the whole integration process a breeze.

•Enhanced Features: These sensors often have extra features like data logging, real-time clocks, and the ability to work with graphical user interfaces, which makes them perfect for more complex applications.

In short, digital sensors are loved for their precision, accuracy, and versatility in all sorts of applications—whether in industry, science, or consumer electronics. They’ve changed the game in data collection by providing trustworthy, quantized data that’s easy to process and analyze in the digital world.

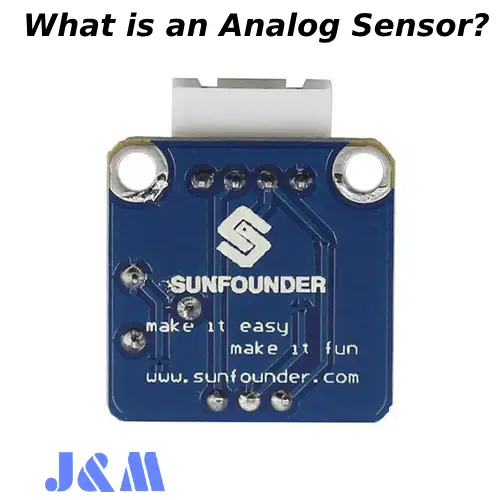

What is an Analog Sensor?

An analog sensor is a type of sensor that measures a physical quantity and gives an output signal that’s directly linked to what’s being measured. In simple terms, analog sensors produce continuous output signals that show the exact value of the measured parameter without turning it into discrete or digital forms.

What is an Analog Sensor?

Here are some key things about analog sensors:

•Continuous Output: Analog sensors give you a signal that changes smoothly as the measured parameter changes. For instance, a temperature sensor might output a voltage or current that shifts smoothly as the temperature goes up or down.

•Voltage or Current Output: These sensors usually produce signals in the form of voltage or current. The strength of the signal reflects the strength of the measured quantity. But keep in mind, things like noise and environmental conditions can affect how accurate these sensors are.

•Limited Precision: When it comes to precision and accuracy, analog sensors aren’t as good as digital ones. Their accuracy can be impacted by noise and other factors in the environment.

•Direct Connection: Analog sensors often connect straight to analog measurement devices or to analog-to-digital converters (ADCs) if you need digital data. An ADC will convert that analog signal into a digital format for further processing and analysis.

•Applications: You’ll find analog sensors in places where continuous and real-time monitoring of physical quantities is key. Common examples include thermocouples, strain gauges, and pressure transducers.

Analog sensors are super useful when you need detailed, real-time data, and their smooth output is really important. They’re widely used in fields like industrial automation, environmental monitoring, and scientific research.

Unlike digital sensors, which break data down into discrete values, analog sensors give you a direct look at the physical quantity being measured. Choosing between analog and digital sensors really comes down to what you need for your specific application, how precise you want to be, and whether you need to work with continuous data.

Direct Cost Differences

When it comes to the cost of analog versus digital sensors, it really depends on a few things—like the type of sensor, what it’s meant to do, and the features and tech involved. Generally, digital sensors can be pricier than analog ones for a few reasons:

•Precision and Accuracy: Digital sensors usually offer higher precision and accuracy, which is super important for many applications. Getting this level of performance often needs more advanced parts and technology, which can bump up the price.

•Signal Processing: Many digital sensors come with built-in signal processing features and sometimes even microcontrollers or processors to handle and send out data. These extra components can add to the cost.

•Features and Complexity: Digital sensors can provide a lot more features, like calibration, data logging, and communication interfaces (like I2C, SPI, USB), plus they work well with microcontrollers and digital systems. All these extra features can make them more expensive.

•Interfacing and Compatibility: Digital sensors often need specific interfaces and protocols, which might require more components or software to integrate them. This can raise the overall cost too.

•Manufacturing and Technology: The process to make digital sensors can be trickier, and they often need more advanced tech, leading to higher production costs.

But it’s good to keep in mind that the cost difference can really vary based on the specific sensor type and its application. Sometimes, analog sensors can still be a more budget-friendly option, especially when you don’t need super high precision or fancy features.

When you’re comparing analog and digital sensors for a particular application, it’s important to think about what you need and your budget. That way, you can figure out which type of sensor is the best bang for your buck!

Digital Sensor: RMS-TCD-S-001

The Rotronic RMS-TCD is a digital temperature probe. It takes a Pt100 sensor and digitalizes it. To turn the analog output of the Pt100 temperature sensor (which is a platinum resistance thermometer) into digital data, Rotronic uses an analog-to-digital converter (ADC). This converter changes the analog resistance value into a digital format that can be processed by a microcontroller, computer, or other digital systems.

Pt100 Sensor Connection

The Pt100 sensor connects to a measurement circuit. At 0°C (32°F), these sensors typically have a resistance of 100 ohms. As the temperature changes, the resistance varies according to a specific curve.

Analog-to-Digital Converter (ADC)

The ADC takes the analog signal from the Pt100 and converts it into a digital signal. It also sets important factors like the resolution you need, the sampling rate, and how it interfaces with other systems.

Microcontroller

The output from the ADC goes to a microcontroller that processes and stores the digital temperature data. If needed, the microcontroller can do extra calculations, like converting the resistance reading into a temperature reading using the known resistance-temperature curve of the Pt100. This includes any necessary temperature compensation.

Calibration and Linearization

Rotronic calibrates and linearizes the Pt100 readings using known reference temperatures and resistance values. This helps fix any nonlinearity in how the sensor responds.

Data Processing and Display

The software in the microcontroller handles the processing, storing, and displaying of the temperature data. Users can access this through an interface or a communication protocol (like MODBUS RTU over UART) to transfer data to a computer, data logger, or display device for monitoring and analysis.

In Rotronic’s setup, this means that the adjustment and calibration data is stored right in the RMS-TCD probe itself. So when it’s connected to another device, it doesn’t lose any accuracy.

Loss of Accuracy on Analog Devices

Analog devices, like sensors and measurement tools, can lose accuracy for a bunch of reasons. It's super important to know what these factors are to keep things precise and reliable. Here are some common culprits:

• Temperature Effects

A lot of analog components and sensors don’t like temperature changes. If the temperature shifts, it can mess with resistance, capacitance, and other electrical properties, leading to measurement errors.

• Noise

Electrical noise from things like electromagnetic interference (EMI), radiofrequency interference (RFI), or even other electronic devices can mess up analog signals. This noise can distort signals and throw off accuracy.

Drift

Components such as resistors, capacitors, and transistors can drift over time. Drift is basically a slow change in the device's characteristics that can lead to a steady loss of accuracy.

• Nonlinearity

Many analog devices don’t have a perfectly linear response to input signals. This nonlinearity can cause measurement errors, especially when you need high precision.

• Aging

Analog components can age, changing their properties and affecting accuracy and performance over time.

• Power Supply Variations

If there are fluctuations or noise in the power supply, it can impact the accuracy of analog devices. Voltage changes can affect the reference voltage and lead to measurement errors.

• External Environmental Factors

Stuff like humidity, pressure, and mechanical stress can affect how well sensors and analog components work. It’s important to keep these conditions in check for some applications.

• Component Tolerances

Manufacturing tolerances can create performance variations. Picking the right components and calibrating them can help with this.

• Signal Conditioning Errors

Mistakes in the signal conditioning circuit (like amplifiers, filters, and multiplexers) can spread through the system and hurt overall accuracy.

To handle signal conditioning errors, we do loop calibrations. Loop calibrations are crucial for analog sensors to ensure the measurement system is accurate and reliable. Here’s why they’re important:

• Accuracy Verification

Analog sensors, like Pt100 temperature or pressure sensors, can drift or wear out over time. Loop calibrations check that the sensor’s output stays accurate by comparing it to known values, which is vital for precise measurements.

• Error Detection

Calibrations can uncover errors in the sensor or measurement system. If the output is way off during calibration, it might point to problems like sensor degradation or electrical noise.

• Correction of Nonlinearities

Many sensors behave nonlinearly. Loop calibrations can create calibration curves or tables to fix these issues, making sure readings are accurate across the range.

• Drift Compensation

Loop calibrations help spot and fix drift in sensor output, which are slow changes over time. Adjusting for this keeps the sensor accurate.

• Environmental Changes

Factors like temperature and humidity can impact analog sensors. Loop calibrations help account for these changes, ensuring accurate measurements no matter the conditions.

• Quality Assurance

In critical areas like industrial control, healthcare, or aerospace, high-quality assurance is a must. Regular loop calibrations meet quality standards and keep measurements reliable.

• Safety

In some situations, safety is key. For instance, wrong temperature readings in a chemical plant can be dangerous. Loop calibrations help ensure those safety-critical measurements are spot on.

• Optimization

Calibrations can fine-tune the entire measurement system, including sensor tweaks and data processing, leading to better efficiency and accuracy.

• Data Integrity

Reliable sensor data is crucial for analysis, control, and decision-making. Loop calibrations help verify the accuracy of sensor readings, ensuring data integrity.

Overall, loop calibrations are super important for keeping analog sensor measurement systems performing well. They help find, fix, and adjust for errors, making sure the sensor output stays accurate and reliable over time.

Conclusion

In summary, even though digital probes might have a higher initial cost, they can actually be cheaper overall compared to analog probes because of all the benefits they offer.

Frequently Asked Questions

What’s the Difference Between an Analog and a Digital Sensor?

Analog sensors create analog signals based on what they’re sensing. On the flip side, digital sensors produce digital signals when they take a measurement. Some common examples of analog sensors are sound sensors, light sensors, temperature sensors, and pressure sensors.

How to Tell if a Sensor is Analog or Digital?

One big difference between analog and digital sensors is their output resolution. Analog sensors offer infinite resolution because they provide a continuous range of values. In contrast, digital sensors have a finite resolution, which depends on the number of bits used to represent the signal.

How Can You Tell the Difference Between Analog and Digital?

The main difference between the two types of signals is that analog signals are continuous electrical signals, while digital signals are non-continuous. You can really see this difference when you look at different types of waves!
