A transducer is an electrical device primarily designed to convert a physical quantity into an equivalent electrical signal. While most electrical systems use electrical signals as input, non-electrical signals can also be transformed into their electrical equivalents using various techniques. Typically, a transducer consists of two main components: a sensing element and a transduction element. A classic example of a transducer is the thermocouple, which produces a voltage that corresponds to the temperature at the junction of two different metals. Transducers can be classified into two types: active transducers and passive transducers.

What is an Active Transducer?

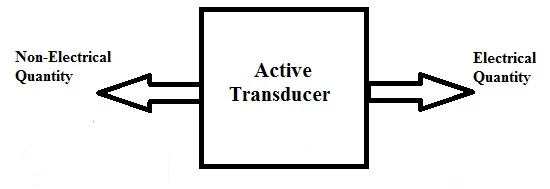

Definition: An active transducer is a device that converts non-electrical quantities into electrical signals. Common examples of non-electrical quantities include pressure, temperature, and light intensity. As a result, there are various types of active transducers, depending on the specific non-electrical quantity being measured.

This type of transducer does not need an external power source. It features a simple design and generally has a lower resolution. Notable examples include thermocouples, tachogenerators, and photovoltaic (PV) cells.

Types of Active Transducer

Piezoelectric Transducer

A piezoelectric transducer is a type of active transducer whose primary function is to produce an electrical output proportional to the applied pressure. The piezoelectric effect can be generated by three key materials: quartz, Rochelle salts, and tourmaline.

Photoelectric Transducer

The photoelectric transducer is another form of active transducer that generates an electrical output in response to light illumination. This device operates in two scenarios: when light strikes the transducer, it produces electrons. Additionally, it generates a current as the electrons are attracted to the anode.

Thermoelectric Transducer

This transducer generates an electrical output that corresponds to changes in temperature. Common examples include thermistors and thermocouples.

Thermistor Type

A thermistor, or thermal resistor, is a type of resistor whose resistance varies with temperature. It has a negative temperature coefficient, meaning that as the temperature increases, the resistance decreases. The advantage of this type of transducer is its ability to provide a stable and rapid response.

Thermocouple Transducer

A thermocouple transducer generates an output voltage that corresponds to changes in temperature at its input. When two different metal wires are joined at two points, this configuration is referred to as a thermocouple.

Active transducers are devices that convert a physical quantity (like temperature, pressure, or light) into an electrical signal, and they require an external power source to operate. Here's a brief overview of how they work:

Active Transducer Working Principle

Active transducers are devices that convert a physical quantity (like temperature, pressure, or light) into an electrical signal, and they require an external power source to operate. Here's a brief overview of how they work:

Input Physical Quantity: An active transducer senses an external physical phenomenon, such as temperature changes, light intensity, or pressure variations.

Energy Conversion: Unlike passive transducers, which only convert energy without requiring power, active transducers utilize an external energy source. This energy is used to facilitate the conversion process. For example, a thermocouple generates a voltage based on temperature differences using thermoelectric effects.

Signal Generation: The external power helps amplify the signal generated by the transducer. The output can be in the form of voltage, current, or frequency, which is proportional to the measured physical quantity.

Output Signal: The output electrical signal can be further processed, transmitted, or recorded for analysis. This signal is typically stronger and more reliable due to the active amplification.

A prime example of an active transducer is the piezoelectric crystal. This crystal has the unique property of generating an output voltage when an external force is applied. Typically, the crystal is positioned between two metallic electrodes. When force is exerted on the crystal, it induces a voltage across it. This describes how this transducer operates.

Applications of Active Transducer

Temperature Measurement: Thermocouples and RTDs (Resistance Temperature Detectors) are used in HVAC systems, industrial processes, and automotive applications to monitor and control temperature.

Pressure Measurement: Active pressure sensors are used in weather stations, automotive systems (like tire pressure monitoring), and industrial equipment to measure gas or liquid pressure.

Position and Displacement Measurement: Potentiometers and linear variable differential transformers (LVDTs) are employed in robotics, CNC machines, and automotive systems to measure the position of components.

Flow Measurement: Active transducers like flow meters (e.g., electromagnetic flow meters) are used in water supply, chemical processing, and oil and gas industries to measure fluid flow rates.

Force and Load Measurement: Strain gauges and load cells are used in weighing scales, structural health monitoring, and industrial machinery to measure forces and loads.

Acceleration and Vibration Measurement: Accelerometers are used in automotive crash testing, consumer electronics (like smartphones), and industrial machinery for vibration analysis.

Light Measurement: Photodiodes and phototransistors are used in light meters, cameras, and industrial automation for detecting and measuring light intensity.

Sound Measurement: Microphones are active transducers used in audio recording, telecommunication, and environmental monitoring to convert sound waves into electrical signals.

Chemical Sensing: Active transducers like gas sensors detect the concentration of specific gases in environmental monitoring, safety applications, and industrial processes.

How to Select a Transducer?

When selecting a transducer, consider the following factors:

Impedance: The output impedance should be low, while the input impedance needs to be high to minimize load effects.

Accuracy: The transducer must provide precise readings with minimal errors.

Durability: It should be able to withstand shocks, pressure, vibrations, and other physical stresses.

Resolution: Good resolution is essential for reliable measurements.

Environmental Compatibility: The transducer must function effectively in acidic environments.

Sensitivity: It should be sensitive to the desired signal while remaining unaffected by extraneous signals.

Size: A compact size is preferred for convenience.

Cost and Weight: Ideally, the transducer should be lightweight, cost-effective, and highly sensitive.
