The LM2576 and LM2596 are popular voltage regulators used in electronic circuits to convert varying DC input voltages into a stable DC output. These regulators are crucial in many electronic devices and systems because they provide reliable voltage control. Although both regulators perform similar functions, they have differences in their specifications, features, and operation. This article will explore and compare these differences in detail.

What is the LM2576?

The LM2576 series is made up of monolithic switching regulators that are used for step-down (buck) conversion. You can get it in fixed versions of 3.3V, 5V, or 12V, or you can go for the adjustable version, which goes from 1.23V to 37V. All the variants can handle up to 3A loads and provide excellent line and load regulation. These regulators are easy to use, don't need a lot of external components, and feature internal frequency compensation and a fixed-frequency oscillator. The LM2576 series is a highly efficient alternative to traditional three-terminal linear regulators, often reducing or eliminating the need for external heatsinks.

What is the LM2596?

The LM2596 family is a series of monolithic integrated circuits designed for step-down switching regulation. They can drive loads up to 3A with excellent line and load regulation. You can get these regulators in 3.3V, 5V, and 12V fixed output voltages, as well as adjustable versions. These regulators are simple to use, don't require many external parts, and include internal frequency compensation and a fixed frequency oscillator. The LM2596 series has a 150kHz switching frequency, which allows you to use lower frequency components and make the design easier by reducing the need for additional filtering. You can get these regulators in a standard 5-pin TO-220 package and a 5-pin TO-263 surface mount package, which gives you more flexibility in design and installation.

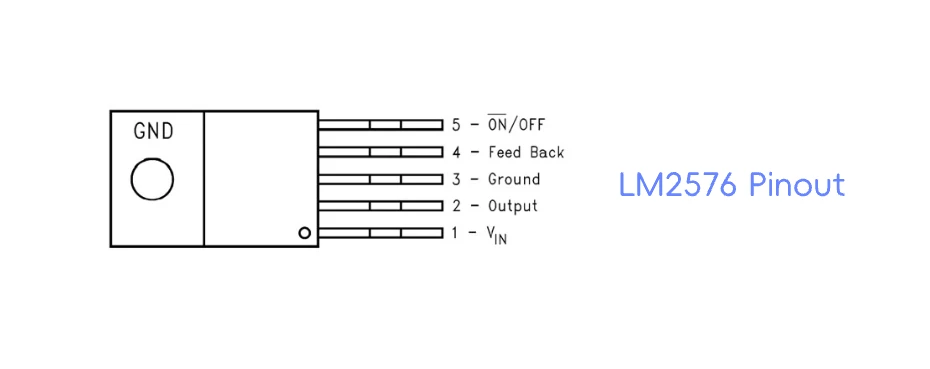

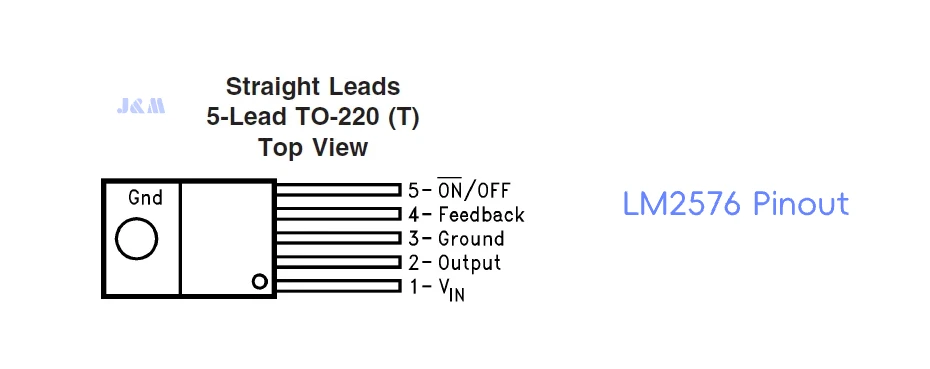

LM2576 VS LM2596 Pinout

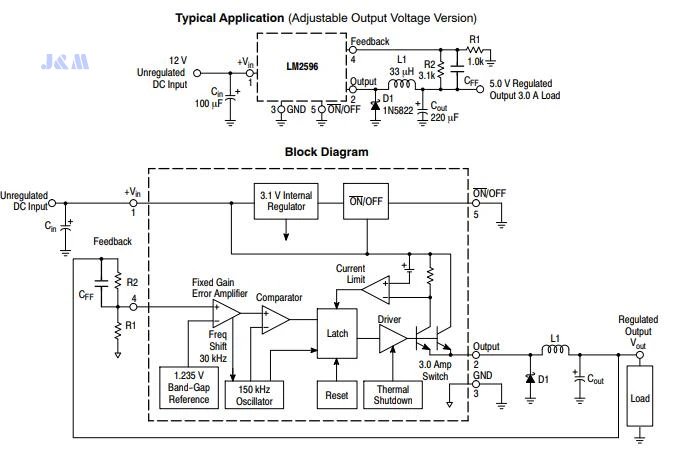

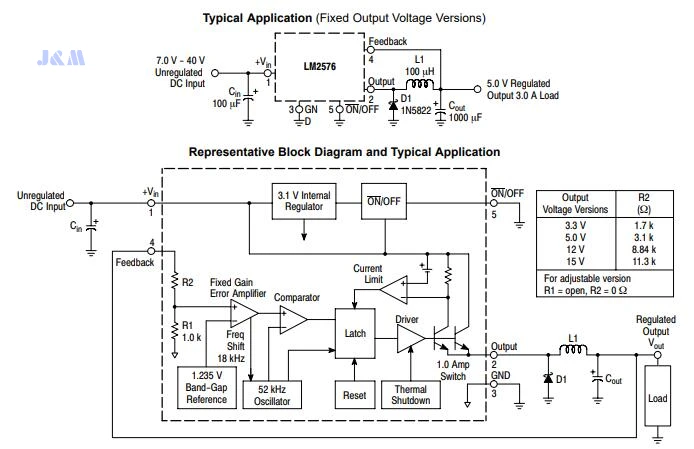

LM2576 VS LM2596 Block Diagram

LM2576 VS LM2596 Features

Features of the LM2576 Voltage Regulator

• Incorporates an internal oscillator with a fixed frequency of 52kHz.
• Available in TO-220 and TO-263 packages.
• Provides fixed output voltages of 3.3V, 5V, 12V, and 15V.
• Includes built-in current limit protection and thermal shutdown features.
• With the addition of external components, the output voltage can be adjusted from 1.23V to 37V.
• Accepts input voltages up to 40 volts.
• When the input voltage is within the specified range and the oscillator frequency tolerance is ±10%, the regulator maintains an output voltage tolerance of ±4%.
• For adjustable versions, the output voltage range is 1.23V to 37V.
• The maximum output current is 3A.
• Features an undervoltage lockout circuit that keeps the regulator off until the input voltage exceeds a set threshold.

Features of the LM2596 Voltage Regulator

• Step-down voltage regulator IC capable of 3A output current
• Offers fixed voltage options of 3.3V, 5V, and 12V, as well as a variable regulator
• Supports a wide input voltage range from 4.5V to 40V
• Minimum output voltage is 3.16V
• Delivers a continuous output load current of 3A
• Capable of handling peak output currents up to 6.9A
• Operates with a switch frequency of 150 kHz
• Available in standard 5-pin TO-220 and TO-263 packages

LM2576 vs LM2596: Alternatives and Equivalents

LM2576 Alternatives:

• LM2677
• LM2575
• LM2576HVT-5.0

LM2596 Alternatives:

• XL6009
• TPS5430
• MC34063

LM2576 Equivalents:

• LM1117
• CS51411
• LM723
• LM7912

LM2596 Equivalents:

• LM2576
• BD9876
• ACT4523

Frequently Asked Questions About LM2576 And LM2596

What's the difference between LM2576 and LM2596?

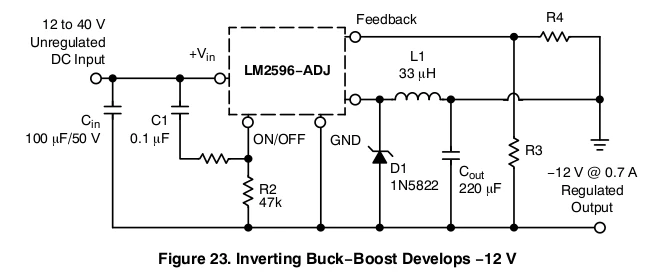

The primary difference lies in their voltage regulation capabilities. The LM2576 is a fixed-voltage regulator, while the LM2596 can be used as both a step-down (buck) and step-up (boost) regulator. Additionally, the LM2596 typically supports a higher output current compared to the LM2576.

What are the common applications of LM2576 and LM2596?

Both the LM2576 and LM2596 are used in various electronic applications, including power supplies, battery chargers, LED drivers, automotive electronics, industrial automation, telecommunications, renewable energy systems, and testing setups.

Where can I find detailed information about LM2576 and LM2596?

Detailed information, including datasheets, application notes, and technical specifications for the LM2576 and LM2596, can be found on the Texas Instruments (TI) website. Additionally, electronic component distributors and technical resource websites provide comprehensive documentation and design resources for these devices.

Conclusion:

Overall, the LM2576 and LM2596 are versatile voltage regulator ICs that are crucial in electronics. Whether used for powering devices, charging batteries, driving LEDs, or regulating voltages across various applications, these ICs are essential in advancing modern electronic systems and fostering technological innovation. Their simplicity, efficiency, and reliability make them indispensable tools for engineers, hobbyists, and electronics enthusiasts.
