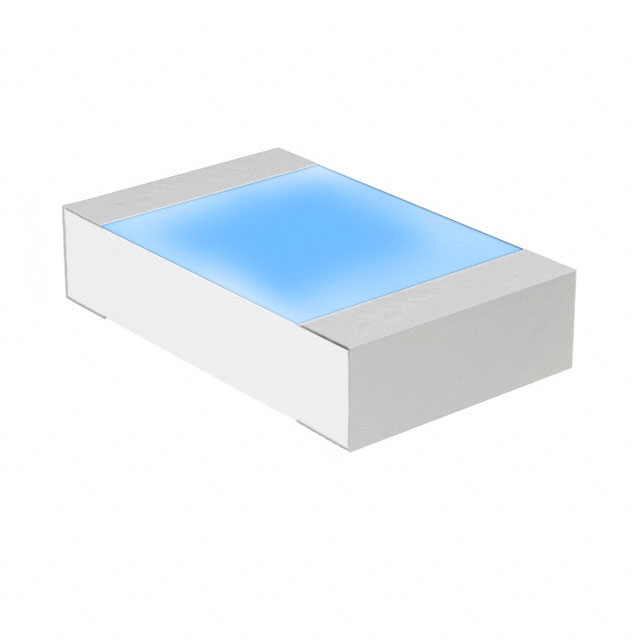

Yageo Nexensos 32207638
- Part Number:
32207638
- Manufacturer:
- Category:
- RoHs:
RoHS Compliant - Datasheet:
32207638_Datesheet - Description:
SENSOR RTD 1KOHM 0.3% 0603
- In stock 7,047
Product Specifications for YAGEO Nexensos SMD 0603 Pt1000 F 0.3 (B) 32207638
Product Overview
The YAGEO Nexensos SMD 0603 Pt1000 F 0.3 (B) 32207638 is a high-precision platinum resistance temperature detector (Pt RTD) designed for surface-mount applications. It offers high accuracy and interchangeability, making it suitable for a variety of applications including HVAC, automotive, e-mobility, medical, and industrial equipment.
Key Features
- Temperature Range: -50°C to +130°C (up to +150°C with expansion-matched circuit board materials)
- Nominal Resistance: Pt1000 Ω
- Tolerance Class: F 0.3 (B)
- Temperature Coefficient (TCR): 3850 ppm/K
- Response Time:Water (v = 0.4 m/s): t0.5 = 0.1 s, t0.9 = 0.25 sAir (v = 2 m/s): t0.5 = 2.5 s, t0.9 = 8 s
- Measuring Current: 0.1 to 0.3 mA (consider self-heating)
- Long-Term Stability: Drift of resistance value at 0°C after 1000 hours storage at upper temperature limit is within tolerance class limits. Typical drift of R(0°C) is 0.06% after 250 hours at +150°C.
- Self-Heating: 0.8 K/mW at 0°C
- Packaging: Blister reel
Applications
- HVAC Systems
- Automotive Applications
- E-Mobility
- Medical Equipment
- Industrial Equipment
Ordering Information
- Order Number: 32207638
- Packaging: Blister reel
- Nominal Resistance: Pt1000 Ω
- Tolerance Class: F 0.3 (B)
Dimensions and Tolerances
- Length (L1): 1.7 ±0.2 mm
- Width (W): 0.9 ±0.2 mm
- Height (H): 0.45 ±0.1 mm
- Lead Length (L2): 0.3 ±0.2 mm
Soldering Conditions
- Limit Profiles: High and Low
- Atmosphere: Nitrogen and air
- Circuit Board Surfaces: chem. Ag, Cu OSP, NiAu, chem. Sn
- Soldering Paste: F640 SA30C5-89 M30 (Material SnAgCu 96.5/3.0/0.5)
- Peak Temperature:High: +237°C (Center), +231°C (Mass), +238°C (Mix)Low: +245°C (Center), +238°C (Mass), +248°C (Mix)
- Time Over 217°C:High: 60 sec (Center), 49 sec (Mass), 65 sec (Mix)Low: 92 sec (Center), 68 sec (Mass), 103 sec (Mix)
- Total Throughput Time:High: 520 secLow: 280 sec
Storage and Handling
- Storage Life: At least 24 months when stored in original VCI bags and under dry and clean conditions. Storage in a nitrogen atmosphere can further reduce the risk of corrosion and extend storage life.
- Packaging: Blister reel "Face-up" 4000 pcs/reel. Alternative packaging forms available on request.
