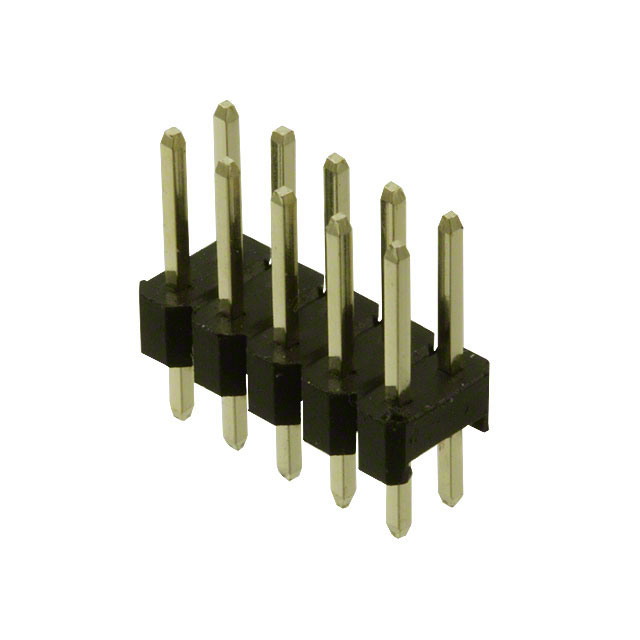

61301021121 Dual Pin Header Information

Overview

The 61301021121 is a dual pin header designed for general electronics equipment. It features a pitch of 2.54 mm and is suitable for applications requiring high safety and reliability.

Key Features

• Material: PA6T (Polyamide 6T)
• Color: Black
• Contact Material: Copper Alloy
• Contact Type: Stamped
• Contact Plating: Gold
• Quality Class: 3 (as per CECC 75 301-802)
• Pitch: 2.54 mm
• Operating Temperature: -40°C to 105°C
• Flammability Rating: UL94-V0
• Compliance: Lead Free and RoHS

Technical Characteristics

• Electrical Current Rating: 3A
• Working Voltage: 250V AC
• Insulator Resistance: >1000 MOhm
• Dielectric Withstanding Voltage: 500V AC/MN
• Contact Resistance: 20 mOhm max

Mechanical Specifications

• Dimension A: 2.54 x (Number of Pins/2 - 1) mm
• Dimension B: 2.54 x (Number of Pins/2) mm

Soldering and Packaging

• Soldering Process: JEDEC Lead Free Wave Soldering
• Packaging: Bag

Ordering Information

• Part Number: 61301021121
• Description: 2.54 mm Dual Pin Header
• Standard Certified: E323964

Important Notices

• Safety and Reliability: This component is designed for general electronics equipment. For applications in fields such as aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network, etc., where higher safety and reliability are required, or if there is a possibility of direct damage or injury to human body, written approval from Wurth Elektronik must be obtained.
• Reliability Evaluation: Even for general electronic equipment, when used in electrical circuits that require high safety, reliability functions, or performance, the user must perform a sufficient reliability evaluation-check for safety before usage.
