Name: 742792515
Brand: Würth Elektronik
SKU: JM-742792515
Availability: InStock

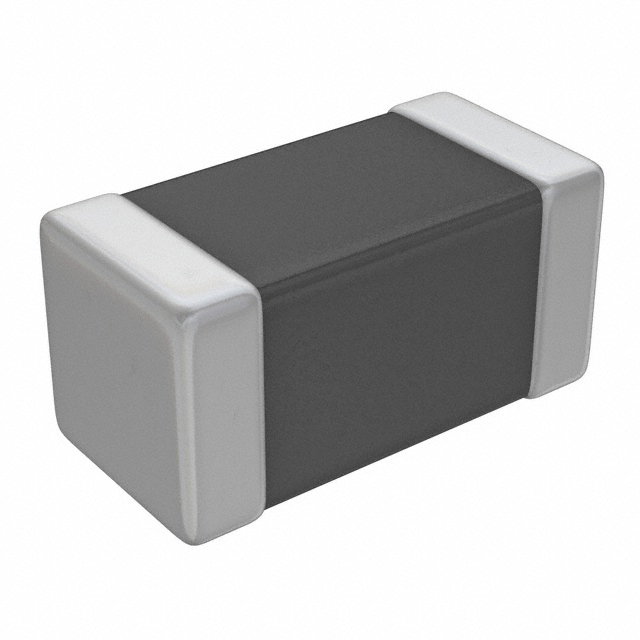

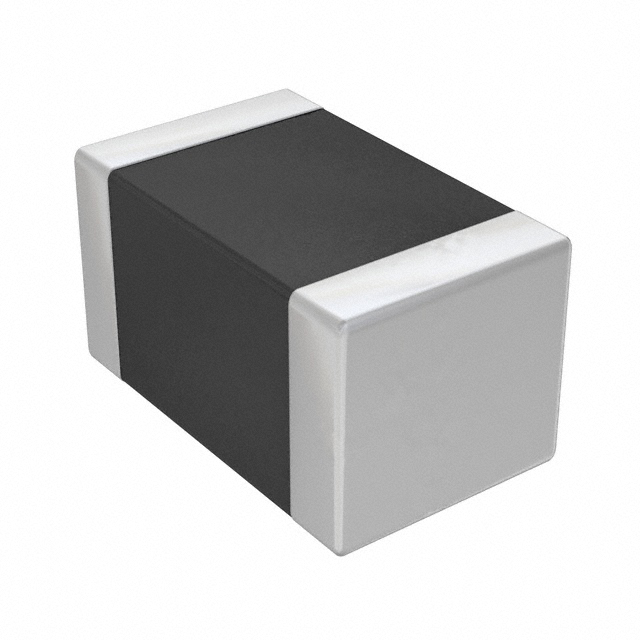

Würth Elektronik 742792515

View All Ferrite Beads and Chips by Würth Elektronik

Part Number:
742792515
Manufacturer:
Würth Elektronik
Category:
Ferrite Beads and Chips
RoHs:
RoHS Compliant
Datasheet:
742792515_Datesheet
Description:
785 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 1812 (4532 Metric) 3A 50mOhm
In stock 31,702

" Not available to buy online? Want the lower wholesale price? Please send RFQ, we will respond immediately

Leave Us A Message!

[email protected]

We`re not around but we still want to hear from you! Leave us a note:

SEND

*You can contact us directly on WhatsApp!

Specifications

Type

Paramete

Type

Paramete

Mounting Type

Surface Mount

Operating Temperature

-55°C ~ 125°C

Height (Max)

0.067" (1.70mm)

Number of Lines

Filter Type

Signal Line

DC Resistance (DCR) (Max)

50mOhm

Package / Case

1812 (4532 Metric)

Ratings

Size / Dimension

0.177" L x 0.126" W (4.50mm x 3.20mm)

Current Rating (Max)

Impedance @ Frequency

785 Ohms @ 100 MHz

Overview

DESCRIPTION

· WE-CBF SMT EMI Suppression Ferrite Bead designed for general electronic equipment usage.

· Not authorized for high safety and reliability standard equipment unless specific agreement is executed.

· Not intended for military, aerospace, aviation, nuclear control, submarine, transportation, disaster prevention, medical, or public information network applications.

FEATURES

· Dimensions: 1.5±0.2mm, 3.2±0.2mm, 4.5±0.2mm, 0.5±0.3mm with 5:1 scale.

· Recommended Land Pattern: Wide Band/High Speed W=6.3mm, High Current W=7.3mm, 3.0W, 3.5 with 5:1 scale.

· Electrical Properties: Impedance @100MHz 785Ω±25%, Maximum Impedance @60MHz 1300Ω typ., Rated Current 1 2000mA max., Rated Current 2 3000mA max., DC Resistance @20°C 0.05Ω max.

· Certifications: RoHS, REACh, Halogen Free compliant, AEC-Q200 Grade 1 qualified.

· Operating Temperature: -55°C to +125°C, Storage Conditions: <40°C, <75% RH, MSL 1.

APPLICATIONS

· Suitable for general electronic equipment requiring EMI suppression.

· Requires Würth Elektronik eiSos GmbH & Co KG notification before design-in for high safety and reliability applications.

· Mandatory reliability evaluation for components in high safety and reliability electrical circuits.
