Name: ACM4520-421-2P-T000
Brand: TDK Corporation
SKU: JM-ACM4520-421-2P-T000
Availability: InStock

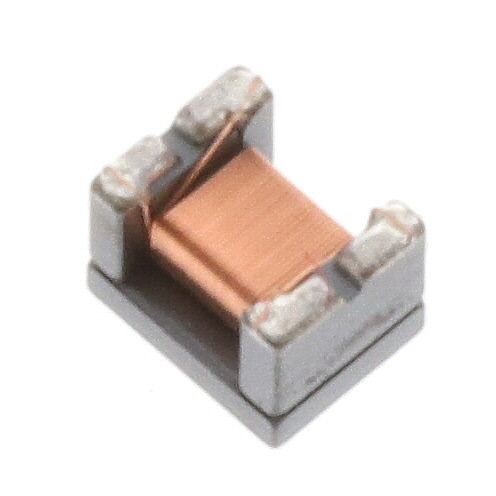

TDK Corporation ACM4520-421-2P-T000

View All Common Mode Chokes by TDK Corporation

Part Number:
ACM4520-421-2P-T000
Manufacturer:
TDK Corporation
Category:
Common Mode Chokes
RoHs:
RoHS Compliant
Datasheet:
ACM4520-421-2P-T000_Datesheet
Description:
2 Line Common Mode Choke Surface Mount 420 Ohms @ 100 MHz 2.8A DCR 55mOhm
In stock 8,935

" Not available to buy online? Want the lower wholesale price? Please send RFQ, we will respond immediately

Leave Us A Message!

[email protected]

We`re not around but we still want to hear from you! Leave us a note:

SEND

*You can contact us directly on WhatsApp!

Specifications

Type

Paramete

Type

Paramete

Voltage Rating - AC

Package / Case

Horizontal, 4 PC Pad

Ratings

Filter Type

Power Line

Operating Temperature

-40°C ~ 85°C

Size / Dimension

0.185" L x 0.177" W (4.70mm x 4.50mm)

DC Resistance (DCR) (Max)

55mOhm

Features

Height (Max)

0.079" (2.00mm)

Number of Lines

Voltage Rating - DC

50V

Impedance @ Frequency

420 Ohms @ 100 MHz

Approval Agency

Mounting Type

Surface Mount

Current Rating (Max)

2.8A

Overview

DESCRIPTION

· Common mode filters for power line applications, specifically the ACM series ACM4520 type.

FEATURES

· Chip common mode filter designed for large current applications.

· Excellent common mode impedance and noise suppression in a compact case.

· Low profile and small size, optimal for surface mounting.

· Operating temperature range: -40 to +85°C.

APPLICATIONS

· Power line noise countermeasure for electronic equipment such as DVCs, DVD cams, and DSCs.
