DESCRIPTION

· The MAX3421E is a USB peripheral/host controller with an SPI interface, compliant with USB specification rev 2.0.

· It includes a built-in transceiver with ±15kV ESD protection and programmable USB connect/disconnect.

· Features an internal Serial Interface Engine (SIE) for handling USB protocol details like error checking and bus retries.

· Operates via an SPI interface up to 26MHz, compatible with any SPI master (microprocessor, ASIC, DSP, etc.).

· Includes internal level translators for system voltages between 1.4V and 3.6V.

· Provides eight general-purpose inputs and outputs, allowing SPI interface I/O pin reclamation.

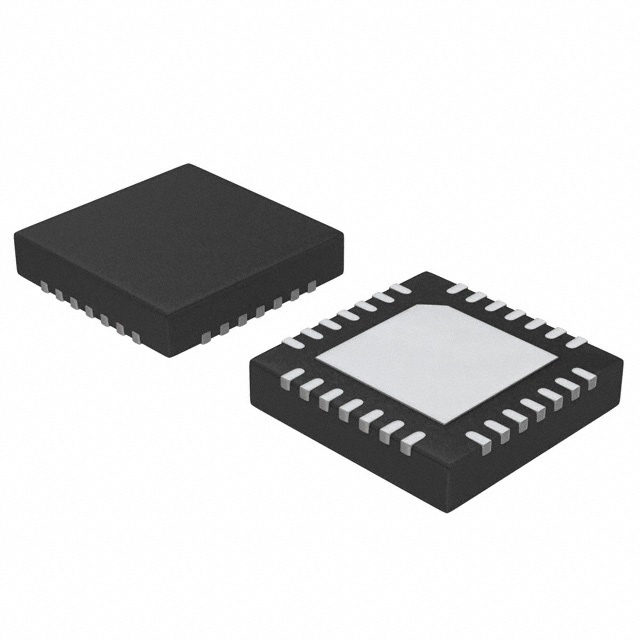

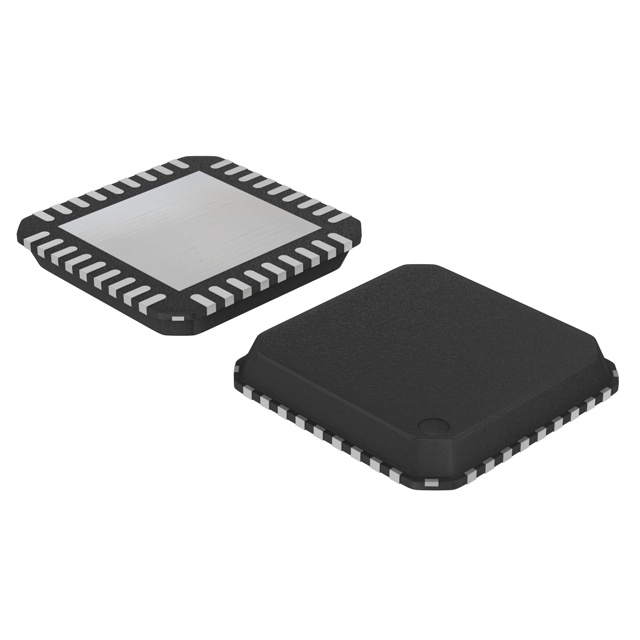

· Operates over a temperature range of -40°C to +85°C, available in 32-pin TQFP and TQFN packages.

FEATURES

· Microprocessor-independent USB solution.

· Software compatible with the MAX3420E USB Peripheral Controller.

· Integrated USB transceiver with firmware/hardware control of pullup/pulldown resistors.

· Programmable 3- or 4-wire, 26MHz SPI interface.

· Internal comparator for VBUS detection in self-powered peripheral applications.

· ESD protection on D+, D-, and VBCOMP.

· Interrupt output pin for polled or interrupt-driven SPI interface.

· Intelligent USB SIE for automatic handling of USB flow control and double buffering.

APPLICATIONS

· Embedded systems and medical devices.

· Microprocessors and DSPs for custom USB devices.

· Cameras, desktop routers, and PLCs.

· Set-top boxes, PDAs, and MP3 players.

· Instrumentation and other USB-enabled devices.
