DESCRIPTION

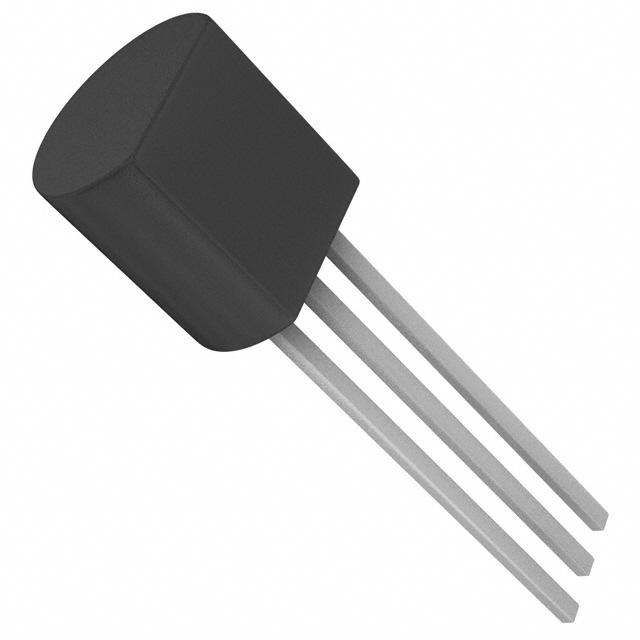

· The TL431 and TL432 are three-terminal adjustable shunt regulators with thermal stability across automotive, commercial, and military temperature ranges.

· Output voltage is adjustable from Vref (~2.5V) to 36V using two external resistors.

· They feature a typical output impedance of 0.2 Ω and sharp turn-on characteristics, making them suitable replacements for Zener diodes.

· TL432 has the same functionality and electrical specs as TL431 but different pinouts for DBV, DBZ, and PK packages.

· Available in three grades with initial tolerances of 0.5% (B), 1% (A), and 2% (Standard) at 25°C.

· Temperature drift is low, ensuring stability across the operating range: TL43xxC (0°C to 70°C), TL43xxI (-40°C to 85°C), TL43xxQ (-40°C to 125°C).

FEATURES

· Reference voltage tolerance: 0.5% (B grade), 1% (A grade), 2% (Standard grade) at 25°C.

· Adjustable output voltage: Vref to 36V.

· Operating temperature range: -40°C to 125°C.

· Typical temperature drift: 6mV (C temp), 14mV (I temp, Q temp).

· Low output noise and 0.2 Ω typical output impedance.

· Sink-current capability: 1mA to 100mA.

APPLICATIONS

· Rack server power.

· Industrial AC/DC power supplies.

· AC inverters and VF drives.

· Servo drive control modules.

· Notebook PC power adapter design.
