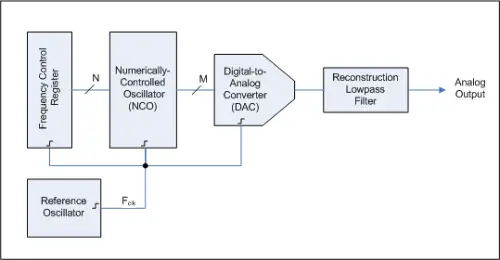

Description of Direct Digital Synthesis (DDS)

Direct Digital Synthesis (DDS) is a method used to create analog waveforms with different frequencies from a digital signal. It’s commonly used for controlling frequencies in wireless systems that need to cover a wide range.

The master frequency clocks available range from 5MHz up to 3GHz. The resolution can be 10-bit, 12-bit, or 14-bit, depending on the application.

Frequently Asked Questions

What is Direct Digital Synthesis (DDS)?

In engineering, DDS is a technique for generating radio frequency waves. It allows precise digital control over the frequency, phase, and amplitude of the waves.

What is DDS in digital signal processing?

DDS is a method for creating analog waveforms, usually sine waves. It does this by first generating a time-varying signal in digital form and then converting it to an analog signal.

What is a DDS signal generator used for?

A DDS signal generator can produce periodic waveforms at various frequencies with very high accuracy. This is thanks to its special memory access and clocking system.

What are the disadvantages of DDS?

Compared to PLL-based synthesizers, traditional DDS has a couple of downsides:

Higher Power Consumption: It uses more power.

Greater Spurious Frequency Content: It might generate unwanted frequencies.

How does DDS work?

DDS is also used as networking middleware, simplifying complex network programming. It uses a publish-subscribe pattern where nodes (publishers) share information on topics (like temperature or location) and other nodes (subscribers) receive this information.
