A digital multimeter (DMM) is a handy tool used to measure different electrical properties such as voltage, current, and resistance. It shows the readings on a digital screen, which makes it easy to see and interpret the results clearly. Unlike traditional analog meters, digital multimeters are more accurate, reliable, and better at handling impedance.

Digital Multimeter

What is impedance?

Impedance is a key concept when working with electrical circuits because it affects how the circuit behaves and can influence the accuracy of your measurements. Simply put, impedance is like the "resistance" a circuit gives to the flow of current. The higher the impedance, the less current flows through the circuit. This can actually be helpful in some cases, like when dealing with circuits that have delicate components that could be damaged by too much current.

Having a high input impedance is a plus when measuring voltage and current in high-impedance circuits since it minimizes the effect the measuring tool has on the circuit. For anyone working with electronics, understanding impedance is important because it impacts both performance and measurement accuracy.

Why digital multimeters are better than analog meters

There are quite a few reasons why digital multimeters have overtaken analog meters:

• Accurate measurements: Digital multimeters provide more precise readings, which is great for detailed electrical work. Their higher resolution means they can detect even small changes in electrical signals.
• Reliable performance: They’re generally more stable and less affected by temperature changes compared to analog meters, which can drift over time.
• High input impedance: Digital multimeters come with high input impedance, which helps ensure accurate measurements and protects sensitive components from damage.

How to use a digital multimeter

Digital multimeters combine the functions of various single-purpose tools like voltmeters, ammeters, and ohmmeters into one device. They often have extra features that make them flexible tools for technicians.

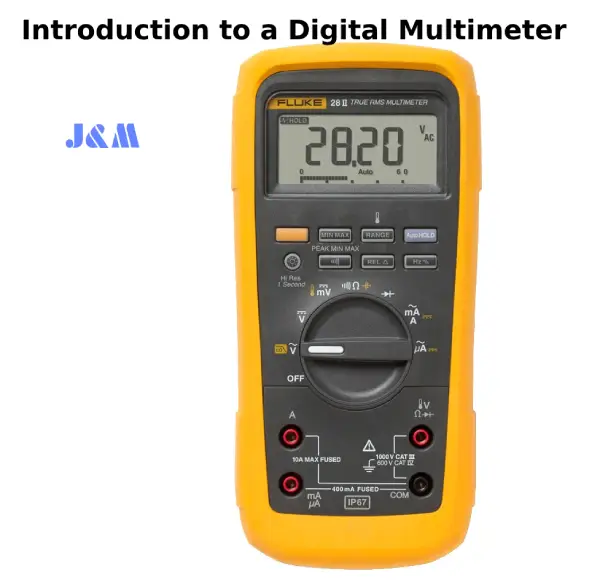

A digital multimeter is made up of four main parts:

• Screen: Where the readings are displayed.
• Buttons: Used for selecting different functions.
• Dial or switch: Lets you choose what type of measurement you’re taking.
• Jacks: Connect the test leads to the meter.

Test leads are flexible, insulated wires usually color-coded—red for positive and black for negative. These leads connect the multimeter to the circuit you're testing. The probe tips at the ends are what you use to make contact with the circuit and take your measurements.

Resolution of digital multimeters

When we talk about digital multimeters, we often mention terms like "counts" and "digits" to describe how precisely they can measure things. Understanding the resolution of a multimeter is important for figuring out if it can detect really tiny changes in what it’s measuring. For example, if a multimeter can measure 1 millivolt (1 mV) on the 4-volt setting, it means it can pick up changes as small as 1 millivolt, which is just 1/1000th of a volt, even when measuring 1 volt.

Types of digital multimeters

Digital multimeters can be grouped based on their count capacity, which can go up to 20,000 counts. They also fall into a few categories, such as:

• General-purpose models (often just called testers): These are affordable, easy to use, and great for basic electrical measurements.
• Standard models: These are a step up from general-purpose ones, offering extra features like frequency measurement and diode testing.
• Advanced models: These come with even more advanced features, including data logging and wireless connectivity.
• Compact units: These small and portable meters are perfect for techs who need something they can easily carry around.
• Wireless versions: These can connect to mobile devices via Bluetooth or Wi-Fi, letting you take measurements remotely.

Safety measures when using a digital multimeter

Using a digital multimeter can involve risks, so it’s super important to keep safety in mind when dealing with electricity. Always read the user manual before using any electrical testing equipment. The manual will guide you on the right way to operate the multimeter, list safety precautions, and outline its limits. Following these guidelines is essential to stay safe and get accurate results.

Applications of digital multimeters

Digital multimeters are used in all kinds of industries and for a wide range of tasks. They’re essential for diagnosing and maintaining electrical circuits, testing components, evaluating battery performance, and even troubleshooting electrical issues in vehicles. Here are some common uses:

Troubleshooting Electrical Problems: Technicians use them to find faults, shorts, or open circuits in electrical systems. With the ability to measure voltage, current, and resistance, they help identify exactly where the problem lies.

Electronics Testing: In electronics labs, they’re used to test and check components like resistors, capacitors, and diodes. They make sure everything’s working within its tolerance range.

Battery Testing: They help determine the health and charge status of batteries, whether rechargeable or not, by measuring voltage and resistance.

Automotive Diagnostics: Mechanics use them to check the electrical systems in vehicles. From checking battery voltage to testing sensors, they’re key in car diagnostics.

Home Electrical Work: They’re great for homeowners or DIYers who need to check outlets, switches, or wiring for safety or functionality.

Industrial Maintenance: In factories or other industrial settings, digital multimeters are critical for keeping machines running smoothly. They detect electrical issues before they lead to breakdowns.

HVAC Systems: These meters also help diagnose electrical problems in heating, ventilation, and air conditioning systems.

Renewable Energy: They’re used to measure the output from solar panels, wind turbines, and other renewable energy setups.

Digital multimeters are invaluable tools for professionals and hobbyists alike. They provide precise measurements of voltage, current, and resistance and are replacing traditional analog meters because of their better features and reliability. When using one, always prioritize safety and refer to the user manual for proper guidance. These versatile tools are essential for everything from troubleshooting electrical problems to testing electronics, maintaining industrial equipment, and working with renewable energy systems.

Frequently Asked Questions

What’s a digital multimeter used for?

A digital multimeter (DMM) is used to measure and check different electrical quantities like voltage, current, and resistance. It’s a common tool for technicians and electrical engineers, combining the functions of a voltmeter, ammeter, and ohmmeter all in one device.

What’s the best brand of multimeter?

When it comes to the best brands, Fluke is definitely the leader in the market, and we’ve always trusted them. But other solid brands like Brymen and Amprobe also make great mid-range multimeters that get the job done.

How do I choose a digital multimeter?

Before choosing a DMM, think about the noise level of the DUT (Device Under Test), source resistance, and the measurement resolution you need. There’s a wide range of accuracy, resolution, speed, and features available. If one of them fits your needs, it could be the most cost-effective choice.

What not to do with a digital multimeter?

These tips apply to both digital and analog meters:

• Don’t drop your meter.
• Don’t overload it.
• Don’t mess with the precision instruments inside.
• Always make sure the range switch is set to the right position before connecting it to a circuit.

What’s the difference between a multimeter and a digital multimeter?

An analog multimeter uses a needle on a scale to show the measurement. A digital multimeter, on the other hand, uses a numeric display to show the exact value.

What’s the first thing you should do before using a multimeter?

Before using your multimeter, always check it over visually. Look for any signs of damage on the meter, probes, and accessories. Make sure all plugs are secure and check for exposed metal or cracks in the casing.
