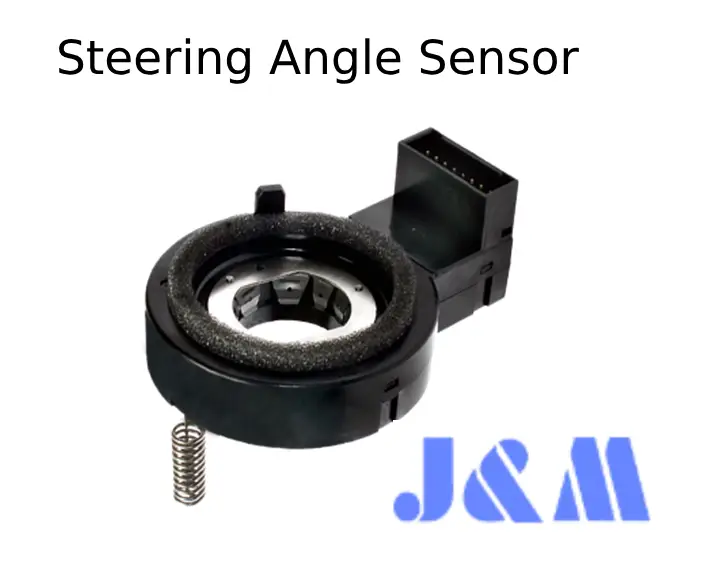

What is a Steering Angle Sensor?

Think of a steering angle sensor as the "middleman" between your steering wheel and your car’s computer. When you turn the wheel, you’re essentially giving your car instructions on where to go. The steering angle sensor picks up on this—it monitors how much you’re turning, how quickly, and in which direction. Then, it sends all that info to the car’s computer, which adjusts the wheels accordingly. This helps the car steer accurately and keeps you in control.

There are two main types of steering angle sensors: analog and digital.

• Analog Steering Angle SensorsThese work using a potentiometer setup. Imagine a resistive track with a small wiper that moves along it as the steering wheel turns. As the wiper moves, the resistance changes, altering the output voltage. This voltage corresponds to the position of the steering wheel. It’s a simple and effective way to measure how you’re steering.
• Digital Steering Angle SensorsDigital sensors, often using LED technology, take it up a notch in terms of accuracy and reliability. They rely on optical encoding—a system where a light source and a photodiode detect the movement of a specially coded disc attached to the steering shaft. Because of their precision, digital sensors are the go-to choice for modern cars. They enhance performance and safety, making sure everything works smoothly and effectively.

The Role of Steering Angle Sensors in Vehicle Safety

Steering angle sensors play a key role in keeping modern vehicles safe. They’re part of a system of sensors that work together to help your car stay stable and under control. Let’s break down how they contribute to safety:

• Electronic Stability Control (ESC):ESC relies on the steering angle sensor to know when you’ve lost control of your steering. For example, if you’re on a slippery road or make a sudden turn, ESC compares the direction you want to go (based on the steering angle) to the direction the car is actually moving. If there’s a mismatch, ESC jumps into action. It applies the brakes to specific wheels to help guide the car back on track, reducing the risk of skidding or spinning out.
• Advanced Driver Assistance Systems (ADAS):Features like lane-keep assist and blind-spot monitoring need steering angle data to work effectively. For instance:If your car starts drifting out of its lane without using a turn signal, lane-keeping assist uses the steering angle sensor to figure out what corrections are needed. It can gently steer the car back into the lane.In blind-spot situations, if the sensor detects you’re steering toward a nearby vehicle, the system might alert you with flashing lights or beeping sounds. Some systems even take over and steer you away from the danger automatically.
• Autonomous Driving:As we move toward self-driving cars, steering angle sensors are going to be even more critical. These sensors give autonomous systems the precise steering data they need to navigate roads safely and stay in their lane. This ensures smooth, accurate maneuvers and lays the groundwork for safer and more efficient driving in the future.

In short, steering angle sensors are like the unsung heroes of modern vehicle safety, quietly working behind the scenes to keep you in control and out of harm’s way.

Troubleshooting and Calibration of Steering Angle Sensors

Calibrating a steering angle sensor is crucial for systems like ADAS and ESC to work correctly. Calibration fine-tunes the sensor to account for real-world factors like road curvature, wheel alignment issues, or tire wear. If it’s not calibrated properly, the sensor might send inaccurate data, causing the ADAS to misread your steering inputs. This can lead to false warnings or even incorrect vehicle responses.

Signs of a Malfunctioning Steering Angle Sensor

A faulty steering angle sensor can mess with your car’s ESC and ADAS systems. Here are some common signs to watch for:

• ESC Warning Light:If the ESC (Electronic Stability Control) warning light pops up on your dashboard, it’s usually a sign something’s off with the steering angle sensor. The system detects a mismatch between your steering inputs and the car’s actual movement and triggers the warning.
• Inconsistent Steering Response:Have you noticed your car pulling to one side after a wheel alignment or your steering feels heavier or lighter than normal? These are classic symptoms of a faulty steering angle sensor. It can make your steering response unpredictable, which is a safety risk.
• Loss of Stability Control Features:When features like traction control, ESC, or active steering stop working properly, it could point to a malfunctioning steering angle sensor. Without accurate data from the sensor, these systems can’t do their job effectively.

What to Do:
If you suspect an issue with your steering angle sensor, it’s best to get it checked and repaired by a professional. Driving with a faulty sensor not only affects performance but also increases the risk of accidents. Don’t ignore the warning signs—it’s better to stay safe!

Why is a Steering Angle Sensor Reset Important?

Think of it this way: in cars with dynamic headlights, the steering angle sensor helps aim the headlights left or right as you turn the wheel, ensuring the road ahead is properly lit. Or, in a car with electronic stability control (ESC), if you’re braking hard and the car starts to slide, the steering angle sensor tells the engine control unit (ECU) how the wheel is turned. The ECU then adjusts the braking on individual wheels to help you regain control and stay on course.

The steering angle sensor is usually located in the Column Integrated Module. If the sensor fails, goes out of tolerance, or loses sync—like after a long battery disconnect—it can cause issues. With tools like the MODIS Edge, it’s easy to check for fault codes and identify any problems with the sensor.

Resetting the sensor to the manufacturer’s specifications is crucial. Using the MODIS Edge, you can also verify the sensor’s operation through data lists, ensuring everything is working as it should.

When a car comes into a body shop with steering or handling problems, here’s what needs to be done:

1. Check and Adjust Wheel Alignment: Use a Snap-on wheel alignment system to ensure everything is properly aligned.
2. Perform Diagnostic Work: Reset the steering angle sensor, clear any fault codes, and ensure all related systems are functioning correctly.
3. Inspect for Damaged Suspension Components: Snap-on’s advanced measurement features can quickly detect bent or damaged parts, so you can replace the correct components without guesswork.

Once all repairs and checks are complete, a diagnostic scan tool like the MODIS Edge can confirm the car is fully repaired and ready to go back to the owner. Resetting and verifying the steering angle sensor is a key step in ensuring the car drives safely and performs as expected.

What are the Common Procedures I May Need to Handle?

One of the most frequent tasks you’ll encounter is resetting the steering angle sensor, especially after replacing or adjusting certain components.

Here’s a step-by-step guide to help you out:

1. Connect the MODIS Edge:Plug it into the vehicle and select the Scanner option from the homepage. Once the vehicle is identified, go to the Wheel Alignment menu.
2. Choose the Calibration Option:Using a 2014 Peugeot 207 1.6L T-Diesel as an example, select Steering Angle Sensor Calibration.
3. Know When Calibration is Needed:You’ll need to recalibrate the steering angle sensor if:The toe-in is adjusted.The sensor or ESP ECU has been replaced.Work has been done on the steering column or its support.Any other repairs were performed on the front axle.
4. Follow On-Screen Instructions:The system will guide you through the calibration process. Follow the prompts carefully.
5. Verify Calibration:Once the calibration is complete, start the engine and check that the ABS warning light is off.
6. Road Test the Vehicle:Take the car for a quick test drive to ensure the zero calibration is accurate and everything is functioning correctly.

Why Resetting is Important:
Resetting the steering angle sensor after wheel alignment or related work is critical because it impacts other key vehicle systems like:

• Dynamic Headlights
• Electronic Stability Control (ESC)
• Adaptive Cruise Control
• Active Stability Control

By completing this process, you’re ensuring that all these systems work seamlessly and that the vehicle performs as intended.

Frequently Ask Questions

What is the function of a steering angle sensor?

A steering angle sensor (SAS) detects and transmits data regarding the steering wheel's position and motion to a vehicle's electronic control units. This information is vital for various safety and control systems, such as Electronic Stability Control (ESC) and Advanced Driver-Assistance Systems (ADAS). The SAS assists the vehicle's computer in determining whether the driver is understeering, oversteering, or if the vehicle is out of control.

What are the consequences of not resetting the steering angle sensor?

When your vehicle undergoes wheel alignment service, it is necessary to reset its steering angle sensors. If this step is overlooked, the sensors may transmit incorrect signals, leading to awkward steering.

What are the signs of a faulty power steering sensor?

If the sensor malfunctions, you may experience symptoms like the engine slowing down or stalling while turning a corner, the engine's speed fluctuating at idle, or the Check Engine light turning on. Power steering control valves direct the flow of power steering fluid to the appropriate areas when the steering wheel is turned.

Is it possible to drive without a power steering sensor?

It is feasible to drive without power steering. However, a failure in an electric or hydraulic power steering system can make normal steering difficult and hazardous. Navigating through traffic, making low-speed turns, and parking may require more effort to steer.

Can wheel alignment impact steering angle sensors?

The most common scenario in which a shop encounters steering angle sensors is when an operation requires the SAS to be calibrated. This may be necessary due to the replacement or removal of certain parts that can affect its operation. Typically, calibration is also required after a wheel alignment.

What happens if the steering torque sensor fails?

You may notice stiff steering or difficulty turning the wheel, often due to issues with the torque sensor or its electrical connections. Additionally, uneven steering assistance could indicate calibration errors related to the steering angle sensor.

How can you test a steering angle sensor?

To test the SAS, you need to back probe a connector, usually located under the steering column. As the steering wheel is turned 360 degrees, the SAS generates a signal that fluctuates between 0 and 5 volts. When the wheel is turned from lock to lock, the voltage will reach 5 volts three times and 0 volts three times.

What are the diagnostic codes for a faulty steering angle sensor?

When you scan for diagnostic codes, you may find codes such as C1306, C1307, or other proprietary codes indicating a malfunction with the steering angle sensor. Depending on the vehicle, these codes may signify a malfunction, an inability to find the center, or a missing calibration of the steering angle sensor.
