Product Specification Summary for ADP5070ACPZ-R7

Basic Information

• Manufacturer: Analog Devices, Inc.
• Part Number: ADP5070ACPZ-R7

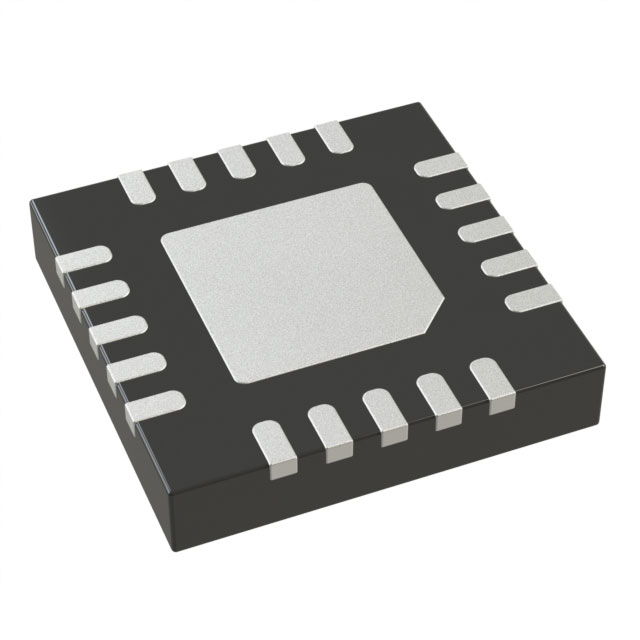

• Package Type: 20-Lead Lead Frame Chip Scale Package (LFCSP)
• Package Option: CP-20-8
• Operating Temperature Range: -40°C to +125°C
• RoHS Compliance: Yes (indicated by "-R7" suffix)

Description

• Type: Dual High Performance DC-to-DC Regulator
• Function: Generates Independently Regulated Positive and Negative Outputs
• Features:Wide input supply voltage range: 2.85V to 15VGenerates well-regulated, independently resistor-programmable VPOS and VNEG outputsBoost regulator to generate VPOS output with adjustable positive output up to 39VInverting regulator to generate VNEG output with adjustable negative output down to VIN - 39VTrue shutdown for both positive and negative outputs1.2MHz/2.4MHz switching frequency with optional external frequency synchronization from 1.0MHz to 2.6MHzResistor programmable soft start timerSlew rate control for lower system noiseIndividual precision enable and flexible start-up sequence controlOut-of-phase operationUVLO, OCP, OVP, and TSD protection4mm × 4mm, 20-lead LFCSP packageSupported by the ADIsimPower tool set

Applications

• Bipolar Amplifiers: High performance analog applications
• ADCs and DACs: High precision data acquisition systems
• Multiplexers: Signal routing in complex systems
• Charge-Coupled Device (CCD) Bias Supply: Imaging applications
• Optical Module Supply: Telecommunications and data transmission
• RF Power Amplifier (PA) Bias: High frequency communication systems

Ordering Information

• Model: ADP5070ACPZ-R7
• Temperature Range: -40°C to +125°C
• Package: 20-Lead Lead Frame Chip Scale Package (LFCSP)
• Package Option: CP-20-8
• RoHS Compliance: Yes (indicated by "-R7" suffix)

Package Dimensions

• Compliant to JEDEC Standards: MO-220-WGGD-11
• Body Size: 4 mm × 4 mm
• Package Height: 0.75 mm

Additional Information

• Evaluation Board: ADP5070CP-EVALZ available for LFCSP package
• Support Tools: ADIsimPower design toolset for optimized power designs
