A digital interface serves as a bridge for smooth communication between electronic devices, applications, or systems. It works as a protocol, converting complex digital data into formats that are easy to understand for users. One of the most well-known examples of a digital interface in multimedia systems is HDMI (High-Definition Multimedia Interface), which we’ll explore in this article.

What is the HDMI Protocol?

HDMI (High-Definition Multimedia Interface) is a digital interface or standard protocol used to transmit high-quality video and audio signals between devices like monitors, gaming consoles, TVs, and other devices such as laptops and DVD players. HDMI cables can carry both compressed and uncompressed audio and video signals through a single connection, making it a versatile solution for multimedia systems.

How Does the HDMI Protocol Work?

The HDMI protocol operates using TMDS (Transition Minimized Differential Signaling), which allows uncompressed digital audio and video data to be transmitted over a single cable. It also handles auxiliary and control data through various periods and link modes. Key features of the protocol include:

• HPD (Hot Plug Detect) Pin: Used to signal when a display is connected.
• EDID (Extended Display Identification Data): Allows devices to exchange information about their capabilities to ensure compatibility and prevent unsupported signal transmission.
• CEC (Consumer Electronics Control): An optional feature that lets you control multiple devices with a single remote.

Here’s how it works:

1. When a device is connected, the HPD pin notifies the source that a display is available.
2. Next, the source and display devices exchange EDID data to confirm each other’s capabilities, ensuring compatibility.
3. An authentication procedure then takes place, where a shared key is created to protect digital content and encrypt the data stream between devices, helping prevent piracy.

Pin Configuration

The HDMI protocol uses 19 pins, which we’ll break down next.

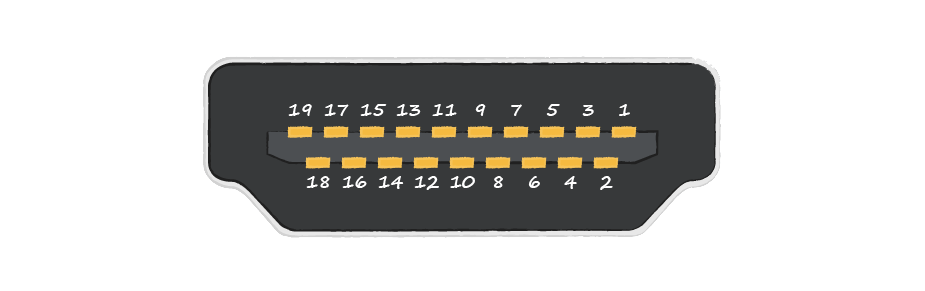

HDMI Pin Configuration

• Pins 1-9 (TMDS Data2+, Data2-, Data1 Shield, Data0+, Data0-): These pins are responsible for transmitting the TMDS data signals.
• Pins 10-12 (TMDS CLK+, CLK Shield & CLK-): These pins carry the TMDS clock signal, which acts as the pixel clock for syncing the data.
• Pin 13 (CEC): The Consumer Electronics Control (CEC) pin allows connected HDMI devices, such as Blu-ray players, AV receivers, and TVs, to control each other.
• Pin 14 (Reserved Pin): This pin's function can vary depending on the HDMI version, particularly between HDMI 1.3 and 1.4.
• Pins 15 & 16 (SCL & SDA): These pins are used for I2C protocol communication, typically for device control and settings exchange.
• Pin 17 (GND): The ground pin, providing a reference for the circuit’s electrical system.
• Pin 18 (+5V Power): This pin supplies +5V power to the HDMI device.
• Pin 19 (HPD): The Hot Plug Detect (HPD) pin signals when a device is connected, initiating the setup process.

Features of the HDMI Protocol

• Uncompressed Audio & Video: HDMI transmits high-quality, uncompressed digital audio and video over a single cable, supporting a wide range of resolutions and audio formats.
• High Bandwidth: It offers the bandwidth needed to support higher resolutions and refresh rates, such as 4K, 8K, and beyond, with the latest standards providing up to 96 Gbps.
• HDR Support: Current HDMI versions support HDR (High Dynamic Range) content, delivering a broader range of contrast and more vivid colors.
• Backward Compatibility: HDMI is backward-compatible with older devices, ensuring seamless integration with a variety of systems.
• Electrical Compatibility with DVI: HDMI is electrically compatible with DVI, allowing the use of simple passive adapters for connecting devices.
• CEC (Consumer Electronics Control): This feature enables two-way communication between devices, allowing for one-touch control with a single remote that can manage multiple HDMI-connected devices.
• ARC (Audio Return Channel): ARC allows audio to travel from a TV to an AV receiver or soundbar using the same HDMI cable, eliminating the need for a separate audio cable.
• eARC (Enhanced Audio Return Channel): eARC provides higher bandwidth, supporting superior audio formats for a better sound experience.
• HEC (HDMI Ethernet Channel): This feature enables high-speed networking over an HDMI connection, allowing IP applications and internet-enabled devices to use the HDMI link for networking.
• TMDS Signaling: HDMI uses TMDS (Transition Minimized Differential Signaling) to reduce signal transitions, making it easier for the receiving device to lock onto the data stream while reducing interference, which also helps support longer cables.
• HDCP (High-bandwidth Digital Content Protection): HDCP is a copy protection standard built into HDMI to prevent unauthorized copying of digital audio and video content transmitted over the connection.

HDMI Specifications

• Higher Bandwidth: HDMI supports higher bandwidth, enabling smoother motion with higher refresh rates and resolutions.
• Resolutions & Refresh Rates: Common resolutions include 1080p, 2160p (4K), 10K, and 8K, with variable refresh rates for fluid motion.
• Color Spaces & Depths: HDMI supports various color spaces, including the wider BT.2020 for better color representation, along with the standard BT.709.
• High-Fidelity Audio: It offers uncompressed, high-quality audio, supporting multiple audio channels and dynamic lip-sync features.
• Advanced HDR Support: Newer HDMI standards support advanced High Dynamic Range (HDR) formats for improved contrast and color depth.
• Consumer Electronics Control (CEC): CEC lets you control multiple connected devices with a single remote.
• Different HDMI Versions: The most common versions include HDMI 1.0, HDMI 2.0, HDMI 2.1, and HDMI 2.2.
• Cable Types: Standard HDMI High-Speed HDMI Premium High-Speed HDMI Ultra High-Speed HDMI Ultra96 HDMI Cable
• Version Specifics: HDMI 1.0: 4.95 Gbps bandwidth, supports 1080p @ 60Hz max resolution. HDMI 1.3: 10.2 Gbps bandwidth, supports 1440p @ 60Hz max resolution. HDMI 1.4: 10.2 Gbps bandwidth, supports 4K @ 30Hz max resolution. HDMI 2.0: 18.0 Gbps bandwidth, supports 4K @ 60Hz max resolution. HDMI 2.1: 48.0 Gbps bandwidth, supports 10K @ 120Hz max resolution.
• Audio/Video Transmission: HDMI uses TMDS (Transition Minimized Differential Signaling) for audio/video transmission, while the new Fixed Rate Link (FRL) in HDMI 2.1 replaces TMDS for higher speeds.
• Channels: HDMI supports three main channels: audio, video, and auxiliary.
• Control Signals: HDMI uses Consumer Electronics Control (CEC) and Display Data Channel (DDC) for controlling signals.
• Supported Video Formats: HDMI supports video formats like RGB, YCbCr 4:2:2, 4:2:0, and 4:4:4, with resolutions up to 10K in HDMI 2.1.
• HDR Formats: HDMI 2.0+ supports Dolby Vision and HDR10 for enhanced viewing experiences.
• Connectors: Type A (Standard) Type C (Mini) Type D (Micro) Type E (Automotive)

HDMI Protocol Components

The HDMI protocol consists of several key components that work together to transmit audio, video, and control data between source and sink devices. These components include:

• HDMI Cable & Connector: The physical medium that connects devices for data transmission.
• TMDS (Transition Minimized Differential Signaling): The technology used for transmitting audio and video data.
• DDC (Display Data Channel): Allows communication between devices, typically used for EDID (Extended Display Identification Data) exchange.
• CEC (Consumer Electronics Control): Enables devices to control each other, allowing features like one-touch control.
• HPD (Hot Plug Detect): Signals when a device is connected, initiating the connection process.
• eARC (Enhanced Audio Return Channel): Offers higher bandwidth for superior audio formats over the HDMI connection.

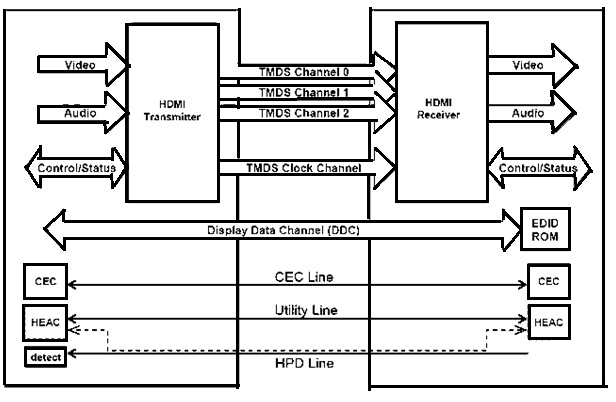

HDMI Protocol Block Diagram

Cable & Connectors

The HDMI physical interface consists of a cable with a durable outer jacket and 19 pins arranged in three rows. Different connector types—Type A, Type C, and Type D—are designed to accommodate various devices.

TMDS (Transition Minimized Differential Signaling)

TMDS is a technique used in the HDMI protocol to encode and transmit digital data. It uses differential signaling and a specific coding system to minimize electromagnetic interference (EMI) and preserve signal integrity, especially over longer cable lengths. This method reduces signal transitions, which are more susceptible to noise, by sending two out-of-phase signals through twisted-pair wires. This allows the receiving device to accurately recover the original data while filtering out most of the noise.

DDC (Display Data Channel)

The Display Data Channel (DDC) is an I2C communication channel in HDMI. Its primary function is to enable the source device to detect and communicate with the capabilities of the sink device (such as a TV or monitor). Through DDC, the source reads the E-EDID (Enhanced Extended Display Identification Data), which includes details on the supported display modes, resolutions, and characteristics of the sink device. This information allows the source device to adjust its output to match the sink’s capabilities, ensuring proper display functionality and features like brightness and contrast control.

HPD (Hot Plug Detect)

Hot Plug Detect (HPD) is a signal in the HDMI protocol that lets a source device know when a sink device (such as a monitor or TV) has been connected or disconnected. When the sink device receives +5V power through the HDMI cable, it asserts the HPD signal, indicating that it is ready to establish a connection and exchange EDID data. This process makes HDMI "plug-and-play," allowing the source to automatically adjust the audio and video settings for the best possible display.

CEC (Consumer Electronics Control)

HDMI-CEC is a feature that allows HDMI-connected devices to communicate with and control each other, simplifying home entertainment systems by enabling a single remote to control multiple devices. Some key functions enabled by CEC include:

• One-Touch Play: Turns on the TV and automatically switches to the correct input when you power on a device.
• System Standby: Turns off multiple devices with the press of a single button.

CEC is a core HDMI feature that requires support from both the TV and the connected devices. It often needs to be enabled through the settings menu of each device.

SCDC (Status and Control Data Channel)

The SCDC is an optional interface found in HDMI 2.0b and later versions. It works over the I2C bus, linking the source and sink devices. The SCDC provides extra registers for monitoring and controlling features such as:

• TMDS Clock Ratio: Ensures proper synchronization of the data stream.
• Scrambling: Helps protect the signal and reduce interference.

It allows devices to exchange essential operational and status data that goes beyond the standard CEC and DDC functionality.

HEAC (HDMI Ethernet & Audio Return Channel)

HEAC, introduced in HDMI 1.4, combines Ethernet and audio return functions over a single HDMI cable. It allows:

• Bidirectional Ethernet: Devices can share an internet connection and support IP-based applications.
• Audio Return Channel (ARC): Sends audio signals upstream from the TV or sink device back to a source device, such as an AV receiver or soundbar.

HDMI Versions:

Advantages of HDMI Protocol

• High-Definition & Uncompressed Video: HDMI transmits uncompressed video signals, ensuring a crisp and flicker-free picture quality.
• Multi-Channel Audio: HDMI supports high-fidelity audio formats like DTS and Dolby Digital, delivering surround sound without the need for separate audio cables.
• Simplified Connections: HDMI carries both audio and video signals over a single cable, reducing cable clutter and making setup easier.
• Wide Compatibility: HDMI is a universal standard that works with a broad range of consumer electronics, including game consoles, TVs, computers, Blu-ray players, and projectors.
• Ease of Use: HDMI cables are simple to connect and don’t require complicated setup, making them accessible for most users.
• Consumer Electronics Control (CEC): With HDMI, you can control multiple devices with a single remote, streamlining your home entertainment experience.
• Ethernet Channel: Some HDMI cables include an Ethernet channel, allowing network connectivity between devices through the same cable.
• Future-Proofing: HDMI supports newer features like HDR, Dolby Vision, 8K, and 4K, ensuring your home entertainment system stays up-to-date with the latest technology.

Disadvantages of HDMI Protocol

• Limited Cable Length: Standard HDMI cables have a relatively short maximum length, which can be restrictive for long-distance connections.
• Authentication Delays: Sometimes, when devices are connected, authentication delays can cause flashing or blank screens while the connection is being established.
• Electromagnetic Interference (EMI): The HDMI signal can be affected by electromagnetic interference, which can degrade video quality, especially over longer cable lengths.
• HDCP Compatibility Issues: The HDCP (High-bandwidth Digital Content Protection) technology can cause compatibility issues, especially when trying to play protected content on certain devices or configurations.
• Cost: HDMI cables and devices can be more expensive compared to their analog counterparts.
• Limited Advanced Capabilities: HDMI may lack some advanced features needed in broadcast or large-scale production environments, making it less suitable for those specific applications.
• Field Termination Challenges: HDMI cables can be difficult to terminate in the field, especially for custom installations.
• Durability of Ports: Frequent plugging and unplugging of HDMI cables can wear out the ports, affecting their reliability and stability over time.

Applications of the HDMI Protocol

• Connecting Devices: HDMI is used to connect and transmit uncompressed digital audio and video signals between devices, ensuring high-quality display from the source to the screen.
• Display Devices: It connects displays like projectors, monitors, and flat-panel TVs to audio/video sources, ensuring high-definition output.
• Blu-ray & DVD Players: HDMI is commonly used for high-fidelity audio and video playback from Blu-ray and DVD players to compatible displays.
• Gaming Consoles: HDMI transmits high-definition game graphics and surround sound from gaming consoles to TVs or monitors.
• Cable/Satellite Set-Top Boxes: It is used to deliver high-quality TV channels from cable or satellite set-top boxes to viewers.
• PCs and Laptops: HDMI connects desktop computers and laptops to external displays, such as projectors, TVs, or monitors.
• Cameras & Camcorders: Many modern cameras and camcorders use HDMI to output video directly to displays.
• Mobile Devices: Tablets and smartphones use HDMI to send video content to larger screens like TVs or monitors.
• Professional AV Systems: HDMI is used in professional audio/video systems, including event setups and presentations, to provide high-quality connections.
• Automotive Systems: HDMI delivers HD video to in-car displays, such as seatback screens or the dashboard, enhancing the in-vehicle entertainment experience.

Conclusion

In summary, the HDMI protocol is a powerful and versatile interface widely used in the entertainment industry for high-definition multimedia connections. Its features, such as ease of use, high-quality audio and video transmission, and compatibility with other interfaces, make it a preferred choice across various industries and settings. HDMI is a dominant digital interface that provides a simple, single-cable solution to connect devices like gaming consoles, laptops, and TVs.

Frequently Ask Questions

What protocol does HDMI use?

HDMI uses TMDS (Transition Minimized Differential Signaling) encoding to transmit both audio and video data between devices. The HDMI interface consists of three color channels and one clock channel for syncing the data.

What is the HDCP protocol in HDMI?

HDCP stands for High-bandwidth Digital Content Protection. It’s a protocol designed to protect copyrighted digital content as it travels from one device to another, typically through HDMI, DVI, or DisplayPort connections.

Is HDMI a network protocol?

No, HDMI is not a network protocol. To convert network protocol data to HDMI, you'll need a converter box. There are many such converters available on the market.

Are there different types of HDMI ports?

Yes, there are several types of HDMI ports. The most common are Type A (standard), Type C (mini), and Type D (micro). While Type B (dual link) was developed for very high-resolution displays, it was never widely used. Type E is designed for automotive and industrial applications, but it’s not shown here.

Which HDMI mode is best?

HDMI 2.0 offers a higher bandwidth of 18 Gbps, compared to 10.2 Gbps in HDMI 1.4. This increase in bandwidth allows for higher frame rates and better resolutions, making it perfect for viewing high-quality 4K and even 8K content.

Can HDMI handle 144Hz?

Yes, HDMI 2.0 can handle 1440p at 144Hz. It supports a bandwidth of 14.4 Gbps, which is sufficient for 2560x1440 resolution at 144Hz. For higher refresh rates or 4K resolution at 144Hz, HDMI 2.1 cables are recommended for better performance.

Is HDCP a protocol?

Yes, HDCP is a protocol. It creates a secure handshake between source and display devices to ensure that digital content is properly authenticated and protected from unauthorized copying. Devices that support HDCP communicate with each other to exchange the HDCP security key, ensuring secure content transmission.
