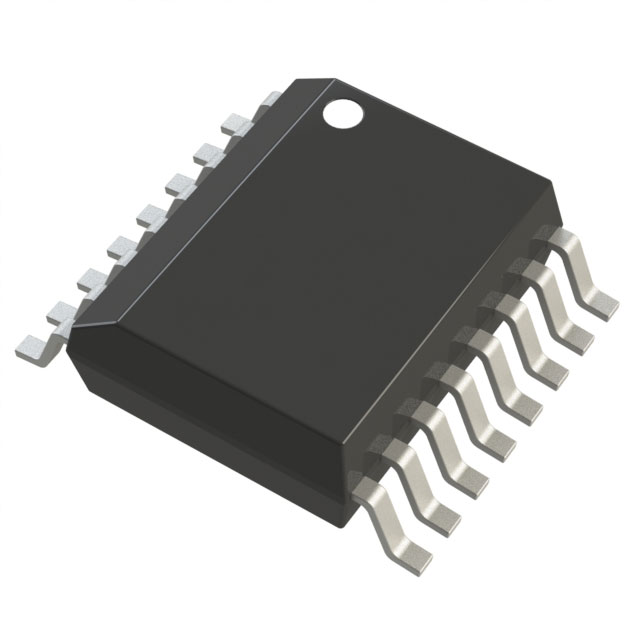

Texas Instruments ISO7760DBQR

View All Triac, SCR Output Optoisolators by Texas Instruments

Part Number:
ISO7760DBQR
Manufacturer:
Texas Instruments
Category:
Triac, SCR Output Optoisolators
RoHs:
RoHS Compliant
Datasheet:
ISO7760DBQR_Datesheet
Description:
General Purpose Digital Isolator 3000Vrms 6 Channel 100Mbps 85kV/µs CMTI 16-SSOP (0.154", 3.90mm Width)
In stock 14,611

" Not available to buy online? Want the lower wholesale price? Please send RFQ, we will respond immediately

Leave Us A Message!

[email protected]

We`re not around but we still want to hear from you! Leave us a note:

SEND

*You can contact us directly on WhatsApp!

Specifications

Type

Paramete

Type

Paramete

Type

General Purpose

Channel Type

Unidirectional

Inputs - Side 1/Side 2

6/0

Isolated Power

Mfr

Texas Instruments

Rise / Fall Time (Typ)

1.1ns, 1.4ns

Common Mode Transient Immunity (Min)

85kV/µs

Pulse Width Distortion (Max)

4.9ns

Supplier Device Package

16-SSOP

Base Product Number

ISO7760

Data Rate

100Mbps

Number of Channels

Mounting Type

Surface Mount

Technology

Capacitive Coupling

Package / Case

16-SSOP (0.154", 3.90mm Width)

Propagation Delay tpLH / tpHL (Max)

16ns, 16ns

Operating Temperature

-55°C ~ 125°C

Voltage - Supply

2.25V ~ 5.5V

Voltage - Isolation

3000Vrms

Overview

ISO7760DBQR Model Information

General Description

The ISO7760DBQR is a high-speed, six-channel digital isolator designed for robust electromagnetic compatibility (EMC) and reinforced insulation. It features a data rate of up to 100 Mbps and is suitable for a wide range of industrial and medical applications.

Features and Benefits

High Data Rate: Up to 100 Mbps
Reinforced Insulation: Certified per DIN EN IEC 60747-17 (VDE 0884-17)
Wide Supply Range: 2.25V to 5.5V
Level Translation: 2.25V to 5.5V
Default Output High: ISO7760 (default output low for ISO7760F)
Wide Temperature Range: -55°C to +125°C
Low Power Consumption: 1.4 mA per channel at 1 Mbps
Low Propagation Delay: 11 ns typical at 5V
Robust EMC: System-level ESD, EFT, and surge immunity
Package Options: Wide-SOIC (DW-16) and SSOP (DBQ-16)
Automotive Version Available: ISO7760-Q1
Safety Certifications: UL 1577, CSA, CQC, TUV

Applications

Industrial automation
Motor control
Power supplies
Solar inverters
Medical equipment

Ordering Information

Part Number: ISO7760DBQR
Package Type: SSOP (DBQ)
Package Drawing: DBQ0016A
Pins: 16
SPQ (Standard Pack Quantity): 2500
Reel Diameter: 330.0 mm
Reel Width (W1): 12.0 mm
Tape Dimensions: Length 350.0 mm, Width 350.0 mm, Height 43.0 mm
Box Dimensions: Length 353.0 mm, Width 353.0 mm, Height 32.0 mm

Pin Configuration and Functions

TableCopy

Pin No.	I/O	Description
1	-	VCC1 (Power supply, side 1)
2	I	INA (Input, channel A)
3	I	INB (Input, channel B)
4	I	INC (Input, channel C)
5	I	IND (Input, channel D)
6	I	INE (Input, channel E)
7	I	INF (Input, channel F)
8	-	GND1 (Ground connection for VCC1)
9	-	GND2 (Ground connection for VCC2)
10	O	OUTF (Output, channel F)
11	O	OUTE (Output, channel E)
12	O	OUTD (Output, channel D)
13	O	OUTC (Output, channel C)
14	O	OUTB (Output, channel B)
15	O	OUTA (Output, channel A)
16	-	VCC2 (Power supply, side 2)

Package Outline

Package Type: SSOP (DBQ)
Body Size (Nominal): 10.3 mm × 7.5 mm
Lead Pitch: 1.27 mm
Lead Length: 0.25 mm to 0.30 mm
Lead Width: 0.25 mm to 0.30 mm
Lead Thickness: 0.10 mm to 0.25 mm
Seating Plane: 0.10 mm to 0.25 mm

Layout Recommendations

Minimum Layer Requirement: 4 layers (High-speed signal layer, Ground plane, Power plane, Low-frequency signal layer)
PCB Material: FR-4 UL94V-0
Decoupling Capacitors: 0.1 µF capacitors recommended at VCC1 and VCC2 pins

Safety and Compliance

UL 1577 Component Recognition Program
CSA Certification per IEC 62368-1 and IEC 60601-1
CQC Certification per GB4943.1
TUV Certification according to EN 62368-1 and EN 61010-1
