STPS30M60DJF-TR Schottky Rectifier Information

Overview

The STPS30M60DJF-TR is a high-efficiency Schottky rectifier designed for switch mode power supplies and high-frequency DC-to-DC converters. It features a low forward voltage drop, very low conduction losses, and a thin package profile of 1 mm, making it ideal for space-constrained applications.

Key Features

• Low Forward Voltage Drop: Ensures high efficiency.
• Very Low Conduction Losses: Minimizes power dissipation.
• Low Thermal Resistance: Enhances thermal performance.
• Avalanche Rated: Provides robustness against voltage spikes.
• High Integration: Suitable for compact designs.
• Thin Package: 1 mm height, ideal for space-saving applications.
• ECOPACK2 Compliant: Environmentally friendly packaging.

Applications

• Switching Diode: Ideal for high-frequency switching applications.
• SMPS (Switch Mode Power Supply): Efficient power conversion.
• DC/DC Converter: High-frequency DC-to-DC conversion.
• Telecom Power: Reliable power management in telecommunications.

Electrical Characteristics

Absolute Ratings (at 25°C)

• Repetitive Peak Reverse Voltage (VRRM): 60 V
• Forward RMS Current (IF(RMS)): 45 A
• Average Forward Current (IF(AV)): 30 A (at Tc = 100°C, δ = 0.5 square wave)
• Surge Non-Repetitive Forward Current (IFSM): 250 A (tp = 10 ms sinusoidal)
• Repetitive Peak Avalanche Power (PARM): 1370 W (tp = 10 µs, Tj = 125°C)
• Storage Temperature Range (Tstg): -65°C to +175°C
• Maximum Operating Junction Temperature (Tj(max)): +150°C

Thermal Resistance Parameters

• Junction to Case (Rth(j-c)): 2 °C/W

Static Electrical Characteristics

• Reverse Leakage Current (IR):90 µA (Tj = 25°C, VR = VRRM)20 mA to 50 mA (Tj = 125°C)
• Forward Voltage Drop (VF):0.59 V (Tj = 25°C, IF = 15 A)0.46 V to 0.52 V (Tj = 125°C, IF = 15 A)0.72 V (Tj = 25°C, IF = 30 A)0.57 V to 0.67 V (Tj = 125°C, IF = 30 A)

Package Information

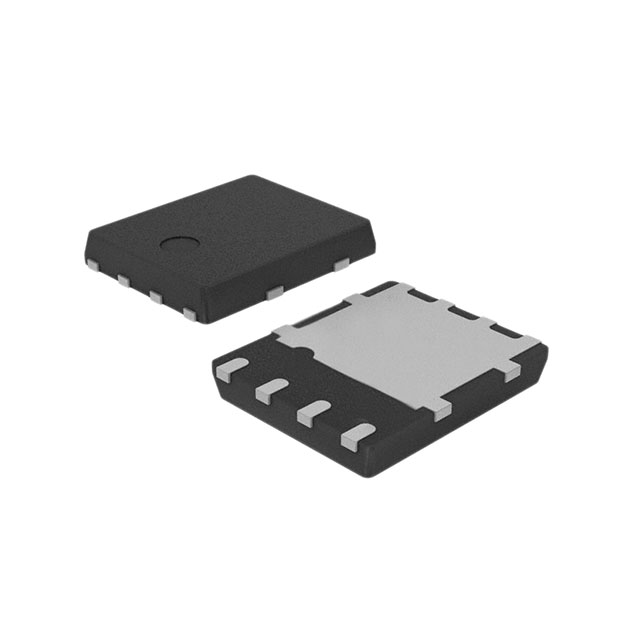

• Package Type: PowerFLAT 5x6
• Dimensions:A: 0.80 mm to 1.00 mmA1: 0.00 mm to 0.05 mmb: 0.30 mm to 0.50 mmc: 0.25 mmD: 4.80 mm to 5.40 mmD2: 3.91 mm to 4.45 mme: 1.27 mmE: 5.90 mm to 6.35 mmE2: 3.34 mm to 3.70 mmL: 0.50 mm to 0.80 mmK: 1.10 mm to 1.575 mmL1: 0.05 mm to 0.15 mm

Ordering Information

• Order Code: STPS30M60DJF-TR
• Marking: PS30 M60
• Package: PowerFLAT 5x6
• Weight: 0.095 g
• Base Quantity: 3000
• Delivery Mode: Tape and reel

Additional Information

• Applications: Switching diode, SMPS, DC/DC converter, telecom power
• Environmental Compliance: ECOPACK2 compliant
• Thermal Management: Refer to AN5046 for PCB assembly recommendations
• Power Loss Calculations: Refer to AN604 and AN4021 for conduction and reverse loss calculations
