The 1N5408 power diode is a two-terminal component, consisting of an anode and a cathode. Current flows through the diode in a single direction, from the anode to the cathode, making it function like an electronic check valve. In this setup, the diode has low resistance in one direction and extremely high resistance in the opposite direction.

As the name suggests, the 1N5408 diode is designed to handle high repetitive reverse voltage and forward current. It’s typically used in circuits that operate below 3A. This article provides an overview of the 1N5408 power diode, its pin configuration, and its applications.

What is the 1N5408 Power Diode?

The 1N5408 is a power diode from the 1N540x series, known for its versatility in various applications. This general-purpose diode can handle up to 3A of current and is available in the DO201 package, offering a slightly larger size compared to the DO-41 package. If you have a bit more space in your circuit, the 1N5408 can be used as a replacement for the DO-41 diode.

This diode is ideal if you're looking for one that can handle a higher current than DO-41 types like the 1N4148 or 1N4007. In most applications, you can replace these diodes with the 1N5408 power diode to achieve higher forward current capacity.

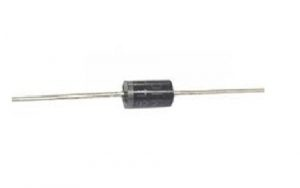

1N5408 Power Diode

The 1N5408 diode is becoming outdated in modern electronic circuits due to its slow recovery time. It is being replaced by more efficient and higher-performance diodes. The VI characteristics of the 1N5408 are non-linear, and it allows current to flow in only one direction once the forward threshold voltage is reached.

Pin Configuration

The pin configuration of the 1N5408 power diode is shown below. This diode has two terminals, each with its specific function, which will be explained below.

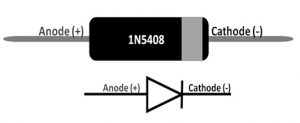

1N5408 Diode Pin Configuration

• Pin 1 (Anode): This terminal allows current to flow into the diode.
• Pin 2 (Cathode): Current exits through this terminal.

Features & Specifications

The key features and specifications of the 1N5408 power diode include:

• Compact size
• High surge current capacity
• Low forward voltage drop
• Available in bulk quantities
• Average forward current: 3A
• Forward voltage drop: 1V at 3A
• Maximum non-repetitive current: 200A
• Maximum reverse current: 10µA
• Cyclic reverse voltage: 1000V
• Available in DO-201 package
• Rectifier diode suitable for general-purpose applications
• Maximum reverse current: 10µA
• Maximum non-repetitive forward current: 200A
• Operating and storage temperature range: -65°C to +175°C

Alternatives and Equivalents

Alternative 1N5408 diodes include the 1N5400, 1N5401, 1N5402, 1N5404, 1N5406, and 1N5407. Equivalent diodes include the CR3-100, P300M, CR3-120, FR307, G3M, FR607, V3510, and HER508. The primary difference between these diodes lies in their Peak Repetitive Reverse Voltage (PRRV) and Non-Repetitive Reverse Voltage (RPRV). If your circuit operates between 12V and 24V, there’s no issue. However, if you're using voltages higher than this range, make sure to check the PRRV and RPRV values, and choose a diode with a higher PRRV than your operating voltage.

How to Ensure Long-Term Use of the 1N5408 Diode in a Circuit

To ensure the 1N5408 diode operates safely and lasts in various applications, follow these precautions:

• This diode is suitable for use in circuits, devices, and projects that operate at voltages above 1000V.
• For optimal performance, always stay within the diode’s specified limits and characteristics.
• Do not exceed a load of 3A when operating this diode.
• Store and operate the diode in temperatures between -65°C and +175°C.

How to Use the 1N5408 Power Diode / Circuit Diagram

A common application for the 1N5408 power diode is reverse polarity protection. In the diagram below, the diode protects the circuit from damage caused by incorrect polarity, which could occur when connecting the power supply to your MST and DDS VFO. The circuit includes both a diode and a fuse for protection, as shown in the diagram.

Reverse Polarity Protection Circuit with 1N5408 Diode

Once the power supply is connected with the correct polarity, the 1N5408 power diode is in reverse bias and does not conduct. However, if the polarity is reversed, the diode becomes active and limits the reverse voltage across the MST to approximately 0.8V.

If the power supply in the circuit exceeds 2A, the fuse will blow, cutting off the power supply completely. While this circuit is simple, it’s effective in protecting the components. The only downside is that you’ll need to replace the fuse if it blows. The 1N5408 diode is robust enough to handle short-circuit currents until the fuse blows and disconnects the circuit.

• Install a fuse holder, such as the M205, on the rear panel near the input connectors of the power supply.
• Wire the positive (+) power supply connector to the supply side of the fuse holder.
• Connect the load side of the fuse holder to the MST PCB.
• Solder the 1N5408 power diode between the load side of the fuse holder and the negative (-) power supply input connector. The cathode terminal of the diode should be connected to the positive (+) connector.

Where to Use the 1N5408 Power Diode / Applications

The 1N5408 power diode is used in a variety of applications, including:

• Rectification in power supplies, battery chargers, voltage boosters, and more.
• Blocking current flow in the preferred direction within a circuit.
• Voltage doubler circuits.
• Current supply regulators.
• Adapters.
• Protection devices.
• Circuits for rectification.
• Half-Wave Rectifiers (HWR) and Full-Wave Rectifiers (FWR).
• Protection of sensitive components.
• High voltage (HV) supplies.
• Voltage and current regulation in various directions.
• Reverse polarity protection.

This summary highlights the key features of the 1N5408 diode, which is designed to handle high forward current and reverse voltage, with a power dissipation of 6.25W. The diode can support up to 3A of current and resist up to 200A. However, due to its slow recovery time, it is often replaced by more efficient diodes in modern electronics. The 1N5408 comes in a DO-201 package and can withstand up to 1000V of repetitive reverse voltage.

Question: What are the advantages of the 1N5408 power diode?
