Wondering about the difference between an inductor and a resistor? You're not the only one! Both components are commonly found in electronic circuits, and telling them apart can sometimes be confusing. To make it easier to decide whether you need a resistor or an inductor for your next project, let’s break down how they differ.

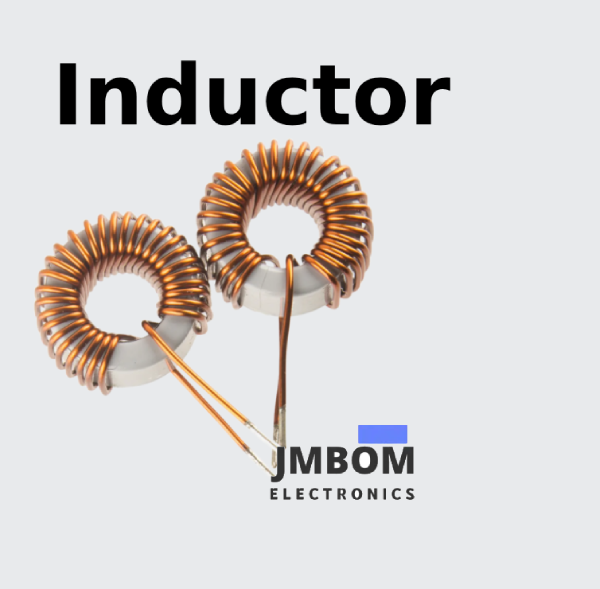

What Is an Inductor?

An inductor is an electrical component that stores energy in a magnetic field when current flows through it. It typically consists of a coil or loop of wire, and as electricity passes through this coil, it creates a changing magnetic field. This change generates an opposing voltage—called electromotive force (EMF)—which resists the change in current. This EMF can be harnessed to power devices like motors or lights.

Inductors play several important roles in electronic circuits: they help manage current flow, filter out noise, isolate different power sections, and temporarily store energy. Most inductors have two terminals and are made with tightly wound coils. They come in a variety of shapes and sizes to suit different applications.

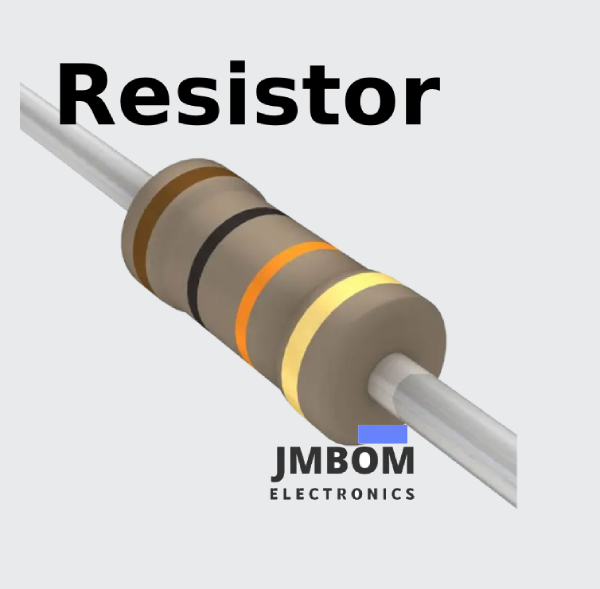

What Is a Resistor?

A resistor is an electrical component that limits the flow of current in a circuit. It introduces resistance—measured in ohms—to control how much current can pass through. In doing so, it can also help divide voltage, adjust signal levels, and convert electrical energy into heat.

Resistors have many uses in electronics, such as boosting or shaping signals, reducing electrical noise, controlling transistor operation, setting bias levels, and limiting the current to components like LEDs.

A widely used type of resistor in electronic circuits is the MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor). Though technically a transistor, it can function like a resistor in some applications. A MOSFET typically uses a layer of silicon or germanium as the base material, and by applying voltage to its gate electrode, it can either allow or block the flow of current through the circuit.

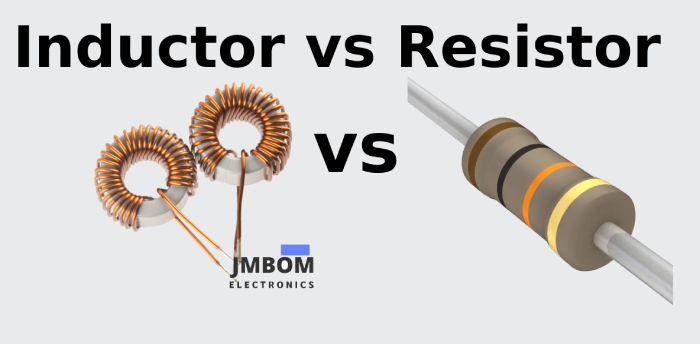

Inductor vs. Resistor: Key Differences

Among the many types of electronic components, inductors and resistors are two of the most essential. While resistors control the flow of current, inductors introduce magnetic fields into a circuit.

Inductors respond to changes in current by generating magnetic fields. This property allows them to regulate circuits and store energy. In contrast to resistors, which oppose the flow of electricity, inductors interact with it to influence how current behaves.

Resistors work by creating resistance within an electrical circuit, limiting how much current can pass through. This helps protect circuits from sudden voltage spikes or drops by keeping current levels stable.

Inductors, on the other hand, form magnetic fields when current changes, enabling them to manage or store energy within a circuit. They can hold more energy than resistors and are typically more suitable for long-term energy storage applications.

Although both are classified as passive electronic components, inductors and resistors serve different roles in a circuit. Inductors can store energy and regulate current using magnetic fields, while resistors simply restrict current flow. Understanding the unique functions of each is key to grasping how electronic circuits operate.

How to Use Inductors

Inductors are passive components widely used in various electrical circuits. They convert energy between electric currents and magnetic fields. In practical applications, inductors are often found in filters that smooth AC signals or block certain frequencies. They are also key parts of transformers, rectifiers, oscillators, and voltage regulators.

When incorporating an inductor into a circuit, several factors need to be considered, such as its size, current rating, DC resistance, and frequency response. These characteristics impact how much power the inductor dissipates and its overall performance. Additionally, the inductor’s placement is important, since nearby magnetic fields from other components can cause interference or unwanted noise.

How to Use Resistors

Resistors are one of the most common components in electronic circuits, serving a variety of important functions. They control or reduce electrical current, create voltage drops, and protect sensitive parts from overcurrent damage. Regardless of their size, shape, or value, all resistors oppose the flow of electricity.

Resistors generally come in two main types: fixed and variable. Fixed resistors, which have a constant resistance value, are commonly used on printed circuit boards (PCBs). Variable resistors, such as potentiometers, allow you to adjust the resistance manually or electronically using a dial or knob.

Purpose of an Inductor and a Resistor

An inductor stores energy by creating a magnetic field when current flows through it. It opposes changes in current by generating electromotive forces (EMF) that resist the flow of current. This opposing EMF helps stabilize voltage levels, making inductors vital components in power supplies, filters, and other circuits that require smooth and steady voltage control.

Resistors, on the other hand, limit the flow of electrical current when connected in a circuit. Often called “current limiting devices,” they protect other components from damage caused by excessive current. Resistors can also create voltage drops to control power levels and isolate signals. Additionally, they improve circuit performance by adjusting frequencies or impedance to help the circuit function more efficiently.

Final Verdict

Inductors and resistors are two fundamental types of electronic components with distinct roles: resistors limit current flow, while inductors store energy in magnetic fields. Both are essential for different functions within electronic circuits. Understanding their differences and how they work is crucial for designing effective and reliable circuits.

If you found this explanation helpful or have any more questions about inductors, resistors, or other electronic components, feel free to mail us!

Frequently Ask Questions

Can an inductor be used instead of a resistor?

No, because inductors cause a phase lag in the current flow, which slows it down. In fact, when using a pure inductor, the current lags the voltage by 90 degrees, making it behave very differently from a resistor.

Do inductors behave like capacitors?

In practice, no. Ideal inductors and capacitors behave differently. However, a real inductor isn’t perfect—it typically includes some series resistance and a small amount of parallel capacitance. So while an ideal inductor wouldn’t act like a capacitor, real inductors have characteristics influenced by both.

Do inductors have resistance?

Yes, because inductors are made from coils of wire, which inherently have some resistance. This resistance is called Equivalent Series Resistance (ESR), and it affects the overall behavior of the inductor.

Can an inductor act like a resistor?

Inductors don’t behave the same way as resistors. Resistors directly oppose current by creating a voltage drop proportional to the current passing through them. Inductors, however, resist changes in current by producing a voltage proportional to how quickly the current changes, not the current itself.

Does an inductor act like a battery?

When current is decreasing, an inductor tries to keep it steady by pushing current in the opposite direction—acting somewhat like a battery connected in reverse. If the current is steady and unchanging, the inductor doesn’t oppose anything and behaves more like a simple resistor.

What is the difference between capacitor and inductor resistance?

A capacitor resists changes in voltage, while an inductor resists changes in current. This fundamental difference determines how each component interacts with electrical signals in a circuit.
