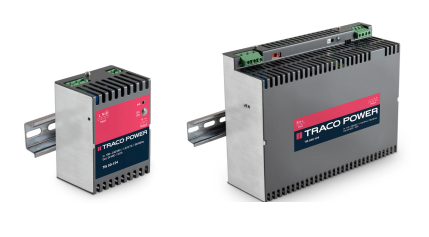

The TIS series switching power supplies are specially developed for use in industrial process control systems and machine tools. With high-quality specifications and strong resistance to electrical interference, they deliver dependable power to sensitive equipment even in tough industrial conditions.

By adding optional function modules, system-specific requirements can be easily met using a standard unit. For example, the UDS module can upgrade the power supply into a full DC-UPS with automatic battery backup—an essential feature in setups that need a delayed system shutdown. A signal module can also be added for monitoring and control.

When parallel operation with active power sharing is required, a redundancy option is available. Thanks to this adaptability, TIS series power supplies provide a reliable and cost-efficient choice for a wide range of industrial applications.

Features

• DIN-rail mountable switch mode power supplies
• Six output ranges: 2 A, 3 A, 6 A, 12 A, 20 A, and 24 A (24 VDC models)
• Switchable 115/230 VAC input voltage
• Ultra-low ripple and noise performance
• EMI compliance with EN 61000-6-3 and EN 61000-6-4 standards
• Wide operating temperature range: –25°C to +70°C
• Available with integrated system functions: RED: Redundancy module for N+1 systems with true current sharing SIG: Signal module with AC power-fail, power-good indication, and external On/Off control UDS: DC-UPS module for uninterrupted, battery-backed power systems
• Global safety approvals, including Class I, Div. 2 hazardous locations
• Simple snap-on installation for DIN-rails or chassis mounting
• Backed by a 3-year product warranty

TIS Series Ordering Information

Input Specifications

• Input voltage range TIS 50: 93 – 264 VAC TIS 75, 150, 300, 600: 93 – 132 VAC / 187 – 264 VAC TIS 500-124-230: 187 – 264 VAC TIS 500-124-115: 93 – 132 VAC
• Input frequency: 47 – 63 Hz
• Input current (typical at full load) TIS 50: 0.85 A @115 VAC / 0.50 A @230 VAC TIS 75: 1.3 A @115 VAC / 0.75 A @230 VAC TIS 150: 2.7 A @115 VAC / 1.6 A @230 VAC TIS 300: 4.9 A @115 VAC / 2.9 A @230 VAC TIS 500: 6.0 A @115 VAC / 4.3 A @230 VAC TIS 600: 7.0 A @115 VAC / 5.0 A @230 VAC
• Recommended circuit breaker or fuse (slow blow, typical, characteristic C) TIS 50: 5.0 A TIS 75: 5.0 A TIS 150: 10.0 A TIS 300: 15.0 A TIS 500: 15.0 A TIS 600: 20.0 A

Output Specifications

• Adjustable output voltage range 12 VDC models: 12 – 14 VDC 24 VDC models: 24 – 28 VDC 48 VDC models: 48 – 52 VDC 72 VDC models: 60 – 76 VDC
• Voltage regulation Input variation: ±0.2 % Load variation (10–90%): TIS 50, 75, 150: ±1.0 % TIS 300, 500, 600: ±0.3 % (±2.0 % in parallel operation)
• Ripple and noise (20 MHz bandwidth): <50 mV pk-pk
• Protection features Electronic short-circuit protection: Current limit at ~110 % (constant current, auto-restart) Over-voltage protection: Trigger point ~140 % of nominal output voltage
• Hold-up time TIS 50 … TIS 300: ≥25 ms @115 VAC / ≥30 ms @230 VAC TIS 500: ≥20 ms @115 VAC / ≥40 ms @230 VAC TIS 600: ≥15 ms @115 VAC / ≥25 ms @230 VAC

General Specifications

• Temperature Ranges Operating (ambient): –25°C to +70°C Derating: 2 %/K above +50°C (122°F) Storage (non-operating): –25°C to +85°C
• Humidity (non-condensing): up to 95 % RH max.
• Pollution Degree: 2
• Temperature Coefficient: 0.02 %/K
• Operating Altitude: up to 2,000 m
• Switching Frequency: ~80 kHz (pulse width modulation)
• Efficiency (typical) TIS 50 … TIS 300: 85 % TIS 500: 90 % TIS 600: 90 %
• Isolation: IEC/EN 60950, UL 60950, UL 508 compliant
• Reliability (calculated MTBF, MIL-HDBK-217F, +25°C, ground benign) TIS 50 / 75: 450,000 h / 420,000 h TIS 150 / 300: 420,000 h / 360,000 h TIS 500 / 600: 340,000 h / 300,000 h
• Safety Standards IEC/EN 60950-1 (SELV, except 72 VDC models) UL/cUL 60950-1, UL 508, UL/cUL 1604 Approvals: CB Report (IEC 60950, IEC 62368-1) UL/cUL 60950 (File E181381) UL 62368-1 UL/cUL 508 (File E210002) UL/cUL 1604 (File E213613) — not valid for TIS 50 & TIS 500 (Class I, Div. 2, Groups A–D hazardous locations) CSA Certificate UL 60950-1, CSA 60950-1 Certification documents available: www.tracopower.com/overview/tis
• Electromagnetic Compatibility (EMC) Emissions EN 61000-6-3 / EN 61000-6-4 Conducted RI suppression: EN 55011 Class B, EN 55022 Class B, FCC Part 15 Level B Radiated RI suppression: EN 55011 Class A, EN 55022 Class A, FCC Part 15 Level A Immunity (EN 61000-6-2) ESD (IEC/EN 61000-4-2): 4 kV / 8 kV Radiated RF field (IEC/EN 61000-4-3): 10 V/m EFT/Burst (IEC/EN 61000-4-4): 2 kV Surge (IEC/EN 61000-4-5): 2 kV / 4 kV Conducted RF disturbances (IEC/EN 61000-4-6): 10 V Power frequency field (IEC/EN 61000-4-8): 30 A/m
• Safety Class: Degree of electrical protection Class 1 (IEC 536)
• Case Protection: IP20 (IEC 529)
• Environmental Tests Vibration: IEC 60068-2-6; 1 g, 200 sweeps, each axis Shock: IEC 60068-2-27; 15 g, 11 ms, each axis
• Mechanical Construction Enclosure: Aluminum chassis with zinc-plated steel cover Mounting: Snap-on, self-locking spring for 35 mm DIN-rails (EN 50022) Connection: Detachable screw terminal block with plugs included (TIS 600: fixed screw terminal block)

Power Supplies with Redundancy Function

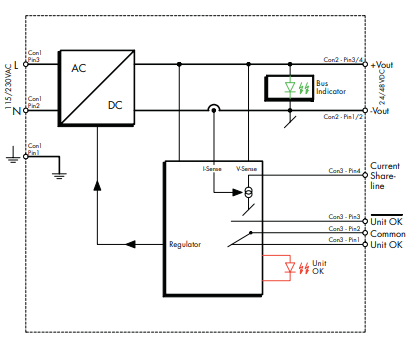

The redundancy option enables parallel operation of up to five units. Built-in decoupling diodes and current share lines allow true N+1 redundant systems with active current sharing across all connected units. An integrated alarm relay is included to provide a failure signal if a single unit goes down.

This option is available for the TIS 150 W, 300 W, and 600 W models.

Note: The redundancy option cannot be combined with other function modules.

Ordering Information – TIS Series with Redundancy Option

Power Supplies with Powerfail Functions

These models integrate three essential features often required in process control applications:

• AC Powerfail signal (relay contact)
• Power Good signal (relay contact)
• Remote On/Off control

This makes them especially suited for industrial systems where reliable monitoring and control are critical.

Ordering Information – TIS Series with Powerfail Option

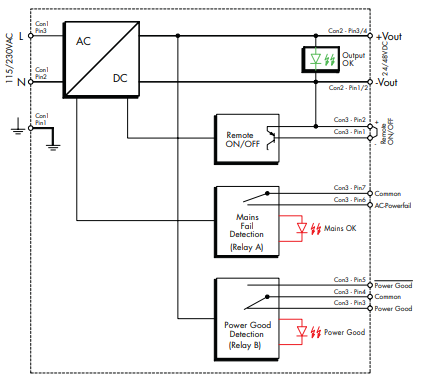

Specifications – Powerfail Function (SIG Models)

• Power Good signal (trigger point) Models with 24 VDC output: >22.8 VDC ±0.5 V → Relay B closed (pin 4 – pin 3) Models with 48 VDC output: >45.6 VDC ±1.0 V → Relay B closed (pin 4 – pin 3)
• AC Powerfail signal Trigger point: Vin <93 VAC or <187 VAC → Relay A closed (pin 7 – pin 6)
• Relay contact rating Max. 60 VDC / 0.36 A
• Remote On/Off control On: Short-circuit between pin 1 and pin 2 of connector 3 Off: Open circuit between pin 1 and pin 2 of connector 3

DC-UPS System (UDS Option)

In addition to standard power supply operation, these models feature a professional battery management system designed to charge and monitor an external battery.

• Seamless backup power: In case of mains failure, the system automatically switches to battery power with no interruption to the DC output. Once mains power is restored, the battery is disconnected and recharged.
• Flexible backup time: Limited only by the capacity of the connected battery and the load demand.
• Adjustable charging: Charge current and voltage can be configured to match the requirements of the battery type.
• Alarm functions: Power fail alarm via relay contact Low battery alarm via independent relay contact High cell resistance alarm triggered during periodic battery status checks
• Protection features: Battery is fully monitored and protected under all operating conditions Power supply remains short-circuit protected, even in backup mode For safety, the external battery should be equipped with a fast-blow fuse
• Battery mode activation: Enabled by interconnecting pins 7 and 8

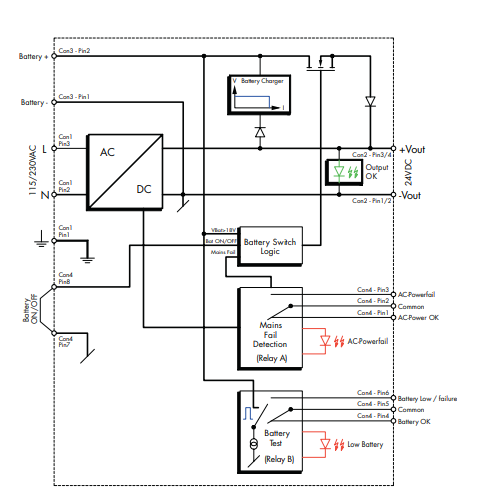

DC-UPS-System

Specifications – DC-UPS (UDS Option)

• Charging current (factory set) TIS 300-124 UDS: 1.2 A TIS 600-124 UDS: 2.4 A
• Adjustable charging current range TIS 300-124 UDS: 0.15 – 1.5 A TIS 600-124 UDS: 0.25 – 2.5 A
• Holding current for fully charged battery: <50 mA at 27.3 VDC
• Overload / short-circuit protection: System automatically switches off during battery operation
• AC Powerfail signal: Vin <93 VAC or <187 VAC → Relay A closed (pin 2 – pin 3)
• Low battery signal: Battery voltage <22 V → Relay B closed (pin 5 – pin 6)
• Relay contact rating: Max. 60 VDC / 0.36 A
• Battery charging impact on output: During battery charge, output current is reduced by 1.4 × battery charging current

Case Dimensions

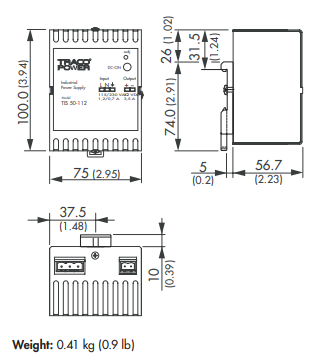

TIS 50 models

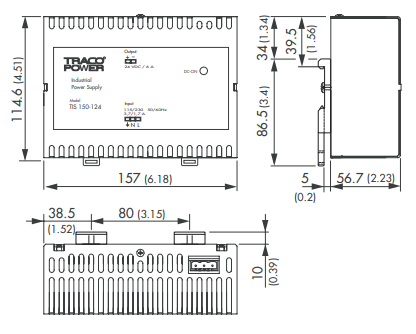

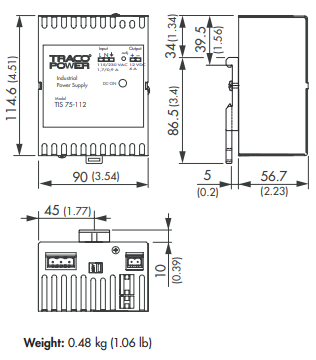

TIS 75 models

TIS 150 models

Case Dimensions

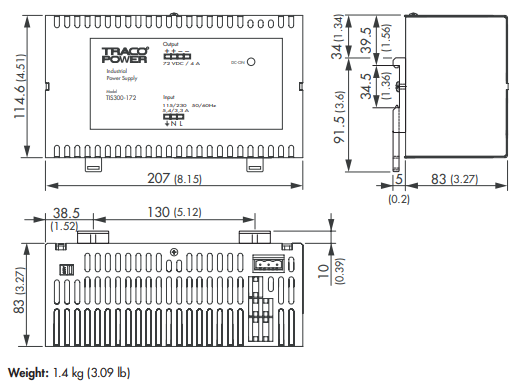

TIS 300 models

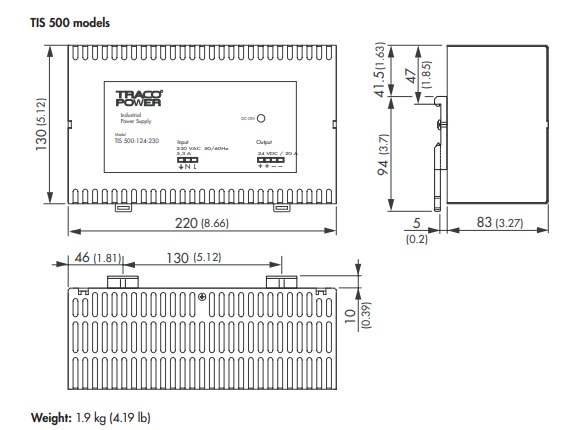

TIS 500 modelsTIS 600 models

TIS Connector Sets

• TIS PLUG-3: Connector set for standard TIS 300 models
• TIS PLUG-3-RED: Connector set for TIS 300-1xx models with Redundancy (RED) option
• TIS PLUG-3-UDS: Connector set for TIS 300-1xx models with DC-UPS (UDS) option
• TIS PLUG-5: Connector set for TIS 500 models

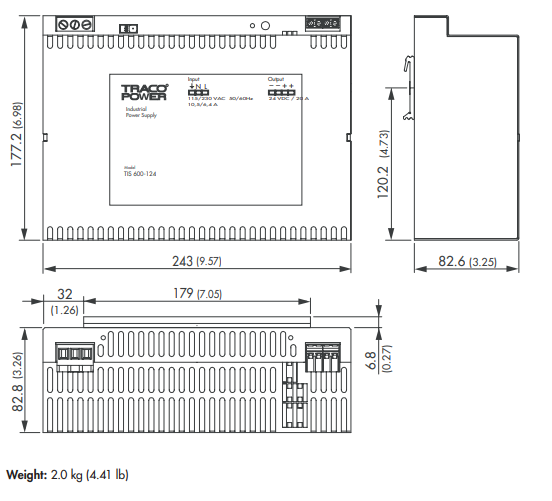

TIS 600 models

Conclusion

The TIS series offers a versatile range of industrial power supplies from 50 W to 600 W, delivering reliable and efficient DC power in demanding environments. With optional modules for redundancy (RED), powerfail signals (SIG), and battery-backed DC-UPS (UDS), these units provide flexible solutions for process control, machine tools, and other industrial applications. Compact DIN-rail or chassis mounting, global safety approvals, and robust protection features make the TIS series a cost-effective and dependable choice for a wide variety of industrial systems.
