Ever find yourself staring at a capacitor, wondering how it really fits into your circuit design?

Maybe you’ve struggled with calculating capacitance, unsure if you’re using the right formula or worried that a tiny mistake could throw off your project.

You’re not alone—engineers everywhere face the same challenges. From smoothing voltage and filtering noise to managing energy storage, a solid understanding of capacitance is key to successful electrical design.

In this guide, we’ll break down capacitance step by step, turning what seems like complicated equations into practical tools you can actually use. We’ll start with the basics—what capacitance is and why it matters—then move on to the main formula, real-world applications, and common pitfalls to avoid.

By the end, you’ll have the knowledge and confidence to apply capacitance effectively in your projects, with tips and resources to help you keep mastering this essential concept.

The Fundamentals of Electrical Storage

Capacitance is a fundamental concept in electrical engineering and forms the backbone of many electronic applications.

At its essence, capacitance describes a device’s—called a capacitor—ability to store electrical energy as an electric charge. This property is essential in modern electronics, helping to stabilize, filter, and manage energy across a wide range of systems.

How Capacitors Store Energy

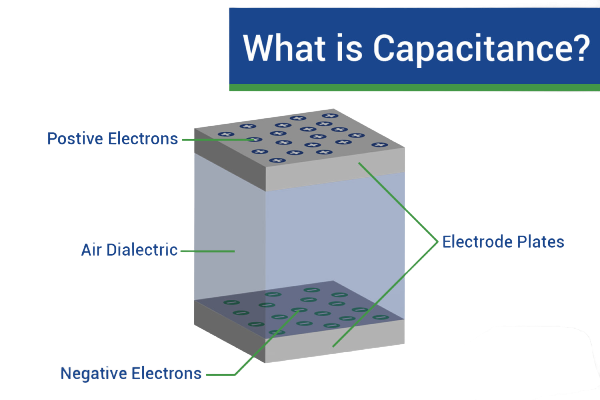

Capacitors store energy by separating positive and negative charges between two conductive plates, which are insulated by a non-conductive material called a dielectric.

When voltage is applied, an electric field forms between the plates, holding the charge until the circuit needs it. This process allows capacitors to temporarily store energy and release it on demand, making them indispensable for effective energy management.

Why Capacitance Matters

Capacitance plays a key role in keeping electronic systems stable and functional. By storing and releasing energy, capacitors can:

• Stabilize voltage levels: Smooth out fluctuations in power supplies, ensuring sensitive components operate reliably.
• Filter unwanted signals: Block noise or interference in circuits, improving the quality of audio and communication signals.
• Provide backup power: Supply short bursts of energy in devices like cameras or power tools to meet sudden energy demands.

Applications of Capacitance in Real-World Systems

Capacitors are everywhere, quietly enhancing the performance and efficiency of countless technologies. Here are some key examples:

• Power supplies: Capacitors stabilize voltage in power supply units, protecting sensitive electronics from sudden dips or spikes.
• Audio systems: They filter out unwanted noise, delivering clearer sound in audio amplifiers and recording equipment.
• Renewable energy: In solar panels and wind turbines, capacitors store excess energy and release it when output is low, helping to manage energy flow efficiently.
• Electronic devices: From smartphones to laptops, capacitors ensure smooth operation by managing energy within complex circuits.

Although they may seem simple, capacitors’ ability to store and release energy makes them essential in the design and function of many electrical systems. Understanding capacitance is the first step toward mastering its practical applications in engineering.

The Capacitance Formula: Understanding the Equation

The capacitance formula provides a simple way to calculate how much charge a capacitor can hold at a given voltage. It is expressed as:C=QVC = \frac{Q}{V}C=VQ​

Where:

• C is the capacitance, measured in farads (F)
• Q is the charge stored, measured in coulombs (C)
• V is the voltage across the capacitor, measured in volts (V)

Components and Units of the Capacitance Formula

Practical Example

Suppose a capacitor has a capacitance of 10 microfarads (10 µF) and is charged to 5 volts. The stored charge can be calculated using the formula:Q=C×VQ = C \times VQ=C×VQ=10×10−6×5=50×10−6 C (50 μC)Q = 10 \times 10^{-6} \times 5 = 50 \times 10^{-6} \, \text{C} \, (50 \, \mu\text{C})Q=10×10−6×5=50×10−6C(50μC)

This example shows how to use the formula in practice, helping you apply it correctly when designing circuits.

Key Variables in the Capacitance Formula: What You Should Know

Understanding the main variables in the capacitance formula is essential for applying it correctly in real-world circuits. Let’s break down charge (Q), voltage (V), and capacitance (C) to see how each affects energy storage and circuit performance.

Charge (Q)

• Definition: Charge is the total electric charge stored in a capacitor, measured in coulombs (C). It represents the energy held between the capacitor’s plates.
• Role in Circuits: The stored charge determines how much energy the capacitor can release to stabilize voltage, filter signals, or provide short-term power.
• How Charge is Measured: Formula: Q=C×VQ = C \times VQ=C×V (multiply capacitance by voltage) Tools: Multimeters: Can indirectly measure charge by reading voltage and capacitance. Oscilloscopes: Allow observation of charge flow in dynamic circuits.

Voltage (V)

• Definition: Voltage is the electrical potential difference between the capacitor’s plates, measured in volts (V). It drives the movement of charge in and out of the capacitor.
• Role in Circuits: Voltage determines how much charge a capacitor can store. Higher voltage allows more energy storage, but exceeding the capacitor’s rated voltage can cause damage.
• How Voltage is Measured: Digital Multimeters: Provide accurate, quick voltage readings. Oscilloscopes: Track voltage changes in real time, which is critical for AC circuits.

Capacitance (C)

• Definition: Capacitance is the capacitor’s ability to store electric charge per unit of voltage, measured in farads (F).
• Role in Circuits: Capacitance defines how much energy a capacitor can store, and how effectively it can stabilize voltage or filter signals in a system.
• How Capacitance is Measured: LCR Meters: Specifically designed to measure capacitance. Multimeters with Capacitance Mode: Useful for general-purpose measurements. Formula: C=Q/VC = Q / VC=Q/V (calculate capacitance knowing the charge and voltage)

This breakdown clarifies the role of each variable and how to measure them, giving you the confidence to apply the capacitance formula accurately in your circuits.

Real-World Context for Capacitance Variables

Applying Capacitance Formulas: Real-World Engineering in Action

Capacitors are the unsung heroes of modern electronics, quietly performing vital tasks across countless applications. By understanding and applying capacitance formulas, engineers can optimize circuit performance and reliability, enabling innovation across technology.

How Capacitors Are Used in Circuits

1. Smoothing Voltage Fluctuations Capacitors stabilize voltage by absorbing excess energy and releasing it when voltage drops. This is critical in power supply circuits to ensure consistent operation of sensitive components. Example: In an AC-to-DC converter, capacitors smooth the rectified current, minimizing voltage ripple and protecting devices.
2. Filtering Unwanted Signals Capacitors remove high-frequency noise, improving signal clarity in audio systems, communication devices, and other electronics. Example: In audio amplifiers, capacitors block low-frequency interference, delivering clear, distortion-free sound.
3. Providing Temporary Power Storage Capacitors can supply sudden bursts of energy when circuits demand it, preventing instability. Example: In cameras, capacitors provide the quick energy needed to fire a flash.
4. Timing Circuits Capacitors combined with resistors create timing circuits used in oscillators, clocks, and signal generators. Example: In blinking LED circuits, the charge and discharge cycle of a capacitor controls the on/off timing.

Capacitors in Modern Technology

• Smartphones and Computers: Ensure stable power delivery to processors for smooth performance during demanding tasks like gaming or video editing.
• Renewable Energy Systems: In solar panels, capacitors store excess energy and release it during low-sunlight periods, improving efficiency and reliability.
• Automotive Applications: In electric vehicles, capacitors regulate energy flow in regenerative braking, enhancing battery performance and lifespan.
• Medical Equipment: In defibrillators, capacitors store and deliver precise energy bursts required for life-saving shocks.

Why Capacitors Matter

Knowing how to calculate capacitance and understand its role in circuits allows engineers to design systems that meet the demands of modern technology. From stabilizing voltage and filtering signals to supplying energy on demand, capacitors are essential for reliable, high-performing electronics.

Common Mistakes in Capacitance Calculations and How to Avoid Them

When working with capacitance formulas, even small errors can significantly affect circuit performance. Knowing the typical pitfalls and how to avoid them helps ensure accurate calculations and reliable designs.

Common Mistakes in Capacitance Calculations

1. Misreading Units Confusing microfarads (µF), nanofarads (nF), and picofarads (pF) is a frequent issue, especially when referencing datasheets or performing calculations. Example: Treating 10 µF as 10 pF results in a value that’s 1,000,000 times smaller than intended.
2. Neglecting Unit Conversions Failing to convert voltage, charge, or capacitance to consistent units can lead to incorrect results. Example: Using millivolts (mV) instead of volts (V) without proper conversion can distort calculations.
3. Using Incorrect Formulas Applying the wrong formula for a specific capacitor configuration produces errors.

• Series Capacitors: Use the reciprocal sum formula.
• Parallel Capacitors: Use the direct sum formula.

1. Ignoring Tolerances and Ratings Overlooking a capacitor’s tolerance or voltage rating can result in unreliable or unsafe designs. Even a 10% tolerance can impact performance in critical applications.
2. Over-Reliance on Calculators Relying solely on calculators or online tools without understanding the underlying principles can cause errors if input values are incorrect or misinterpreted.

How to Avoid Common Mistakes in Capacitance Calculations

Accurate capacitance calculations are essential for reliable circuit performance. Here’s how to minimize errors and ensure precise results:

1. Double-Check Units

Maintain a consistent unit system throughout your calculations. When unsure, convert all values to base SI units (farads, volts, coulombs) to avoid miscalculations.

2. Understand the Context

Know your circuit configuration—series or parallel—and apply the correct formula for each situation. Misapplying formulas is a common source of error.

3. Verify Data Sheet Values

Always cross-check capacitor specifications, including tolerance, voltage rating, and temperature coefficient, to ensure safe and reliable operation.

4. Use Tools Wisely

• Employ reliable instruments such as digital multimeters, oscilloscopes, and LCR meters to validate calculations.
• Use simulation software to model circuits, identify potential issues, and test solutions before building physical circuits.

5. Adopt a Systematic Approach

Break complex calculations into smaller steps and check each result as you go. Keep detailed notes to track your methodology, making troubleshooting easier if discrepancies arise.

The Importance of Accuracy

Precision in capacitance calculations prevents costly mistakes, like system malfunctions or component failures. By verifying your work, using proper tools, and following a structured approach, you ensure robust and reliable designs. Remember, careful calculation saves time, resources, and frustration in the long run.

Resources for Mastering Capacitance: Tools and Tips for Success

Mastering capacitance goes beyond understanding the basics—it requires reliable resources and practical tools to enhance learning and improve hands-on application. Here’s a curated selection to help you deepen your knowledge and refine your skills.

Books and Textbooks

• “The Art of Electronics” by Paul Horowitz and Winfield Hill A comprehensive reference covering both fundamental and advanced electronics, including capacitors and their practical applications.
• “Electrical Engineering 101” by Darren Ashby An excellent beginner-friendly guide introducing key electrical concepts in a clear, approachable manner.
• “Capacitors: Technology and Trends” by Tomas Zednicek Focused on modern capacitor technologies and their use in real-world electronic systems.

Online Courses and Tutorials

• edX: Circuits and Electronics Offers detailed lessons on circuits, including modules on capacitors, energy storage, and signal processing.
• Khan Academy: Electrical Engineering Free, interactive lessons covering capacitance, voltage, and charge with easy-to-follow explanations.
• Coursera: Fundamentals of Electrical Circuits Provides practical insights into circuit analysis, highlighting the role of capacitors in real-world systems.

Simulation Software

• LTspice A free, powerful tool for simulating electronic circuits, including capacitor behavior under varying conditions.
• Multisim by NI A robust platform for designing and analyzing circuits virtually, offering detailed exploration of capacitance effects.
• Tinkercad Circuits A beginner-friendly platform combining circuit design with real-time simulation, ideal for experimenting with capacitors.

Practical Calculators and Tools for Working with Capacitance

To effectively measure, test, and apply capacitance concepts, it helps to have the right tools at your disposal:

Capacitance Meters

Devices like multimeters equipped with capacitance measurement functions allow you to measure the capacitance of physical components directly, ensuring accuracy in circuit design.

Oscilloscopes

Oscilloscopes provide real-time observation of voltage and current changes, enabling you to visualize capacitive effects in dynamic circuits.

Additional Learning Tips

Engage in Hands-On Practice

Use simulation software to experiment with theoretical concepts in a controlled, risk-free environment before applying them to actual circuits.

Join Online Communities

Participate in forums like Electronics Stack Exchange or Reddit’s r/ElectricalEngineering to ask questions, share insights, and learn from fellow enthusiasts and professionals.

Stay Updated

Subscribe to electronics journals and blogs, such as EDN or EE Times, to keep up with the latest advancements in capacitor technology and practical applications.

Conclusion

Capacitance is a cornerstone of electrical engineering and electronics, underpinning a wide range of practical applications. From stabilizing voltage and filtering unwanted signals to temporarily storing energy, capacitors are essential components in modern devices and systems.

By mastering the capacitance formula, understanding its key variables, and exploring real-world applications, you can design circuits with precision and efficiency. Being aware of common pitfalls and leveraging reliable resources further strengthens your ability to apply these concepts confidently.

Whether you’re an experienced engineer or just beginning your journey, grasping capacitance equips you to meet the demands of today’s advanced technologies. Though it may seem complex at first, a systematic approach combined with the right tools can make capacitance concepts manageable and practical in your projects.

Stay curious, keep experimenting, and remember: every skilled engineer started where you are now. The path to mastering capacitance is not just about learning—it’s about empowering your innovations and shaping the technology of tomorrow.

Frequently Ask Questions

What is capacitance in simple terms?

Capacitance is how well a component or circuit can gather and hold energy as an electrical charge. Capacitors, which come in many shapes and sizes, are the parts that perform this energy-storing job.

What does a higher capacitance mean?

A capacitor with higher capacitance takes longer to fill up with charge and to release it. This means the voltage rises (charges) and drops (discharges) more slowly. This property makes capacitors great for smoothing out quick, small voltage spikes, such as high-frequency transients.

What is capacitance for beginners?

In basic terms, capacitance is how much electric charge a capacitor can store for every volt applied, and it’s measured in farads (F). In a circuit, it determines how well the capacitor can stabilize voltage, filter signals, or store energy.

Why is capacitance important?

Capacitance plays a key role in many uses, such as:

Energy Storage: Capacitors can keep energy on hand for when it’s needed, making them vital in power supply systems.

Can you give an example of capacitance?

The capacitance (C) of a capacitor is found by checking how much charge (Q) it stores at a given voltage (V). For example, if a capacitor hooked to a 9-volt battery holds 9 coulombs of charge, its capacitance is 1 farad.

What happens if a capacitor is too large?

Just as a motor won’t work well with a weak capacitor, it also won’t perform its best with one that’s too big. An oversized capacitor can increase energy use and, in both “too big” or “too small” cases, the motor’s lifespan may be cut short because the windings overheat.

Is high or low capacitance better?

It depends on the application. In music, lower cable capacitance gives a richer tone, letting more natural brightness and presence from the instrument reach the amplifier. The same idea applies to video signals—lower capacitance helps preserve clarity and detail.
