Have you ever been in the middle of a project when your device suddenly shuts down? Frustrating, right? In many cases, a blown fuse is the culprit. While checking a fuse may seem simple for engineers, the worry of causing a short circuit can make the process stressful.

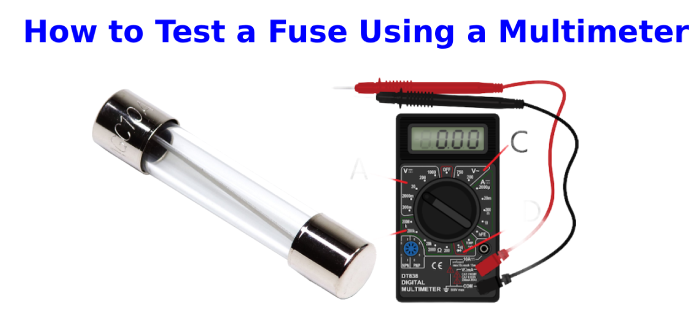

This guide will walk you step by step through using a multimeter to safely check a fuse. We’ll remove the guesswork and help you handle fuses with confidence, so you can return to your project without worry.

What is a Fuse?

A fuse is a protective device that shields electrical circuits from damage caused by excessive current. It plays a vital role in preventing electrical fires and protecting sensitive electronic components.

The working principle of a fuse is simple: it contains a thin metal wire or strip that melts when too much current passes through it. Once the wire melts, the circuit is broken, stopping the flow of electricity and preventing further harm or risk.

Fuses are usually made from low-melting-point metals like tin or silver, which allows them to respond quickly to overcurrent situations. By cutting off the power supply during an electrical surge, fuses keep the system safe and ensure that electricity never reaches a dangerous level.

Types of Fuses

Fuses come in different shapes and sizes, each tailored for specific uses with distinct features. Here are some of the most common types:

• Glass Tube Fuses: These cylindrical fuses have a transparent glass body that lets you see the wire inside. When the wire melts, you can easily tell the fuse has blown. They’re commonly used in electronics and vehicles, valued for their accuracy in responding to overcurrent and the convenience of quick visual inspection.
• Blade Fuses: Also called spade or plug-in fuses, these are popular in the automotive industry thanks to their small size and simple installation. They’re color-coded by current rating, which makes it easy to identify and replace them.
• Ceramic Fuses: More durable than glass fuses, ceramic types are built to handle higher currents and are often used in industrial settings. Their ceramic casing offers better resistance to heat and electrical arcs, making them suitable for tougher conditions.

Comparison of Common Fuse Types

How to Tell if a Fuse is Blown

Figuring out whether a fuse has blown is an important step when troubleshooting electrical problems. There are several ways you can check:

• Visual Check: The easiest method is to look at the fuse. With glass tube fuses, inspect the thin wire inside. If it’s broken or looks burnt, the fuse is blown. Dark spots, cloudiness, or blackening inside the glass are also clear signs of burnout.
• Blade and Ceramic Fuses: Since these don’t let you see the internal wire, you’ll need to look for outside signs. Blade fuses may show melted or discolored plastic, while ceramic fuses might have scorch marks, cracks, or surface damage.
• Other Indicators of a Blown Fuse: Device Failure: If one part of your system stops working while the rest still functions, a fuse in that section may be the issue. Multimeter Test: Set your multimeter to continuity mode. Remove the fuse from its holder, then place the probes on each end. A good fuse will show continuity (a complete path). If there’s no continuity, the fuse is blown.

By combining these checks, you can quickly confirm whether a fuse needs replacing, helping keep your electrical systems safe and running smoothly.

How to Select a Multimeter

Picking the right multimeter for checking fuses is important for accurate results and safe use. Here are the main features to look out for:

• Continuity Mode: A must-have for testing fuses. This setting beeps when the circuit is complete, letting you know the fuse is still good.
• Resistance Measurement: Helps spot fuses with unusually high resistance, which may mean they’re close to failing.
• Voltage Testing: Useful for checking whether voltage is present in a circuit—handy when troubleshooting wider electrical problems.
• Auto-Ranging: Makes operation easier by automatically selecting the correct measurement range.
• Safety Ratings: Always choose a multimeter with an appropriate safety category, such as CAT III, depending on the type of environment you’ll be working in.

A good multimeter not only helps you test fuses but also serves as a reliable tool for a variety of electrical diagnostic tasks, making it an essential part of any toolkit.

How to Test a Fuse With a Multimeter

Testing a fuse with a multimeter is a simple task, but it requires proper setup and caution to ensure both safety and accurate results. Let’s go through the preparation steps before testing.

Preparing the Multimeter

Before checking a fuse, make sure your multimeter is set up correctly to avoid damaging the tool or putting yourself at risk:

• Power Off the Circuit: Always switch off the power to the circuit before removing or testing the fuse.
• Set the Multimeter: Turn the dial to the continuity function, usually marked with a diode symbol or the word “CONT.” This mode is best for fuse testing because it confirms whether the fuse provides a complete electrical path.

Continuity Testing

Use the following steps to check a fuse with the continuity setting:

1. Remove the Fuse: Take the fuse out of its holder. Leaving it in place can create parallel paths that lead to false readings.
2. Place the Probes: Touch the multimeter probes to each end of the fuse. The order of the probes doesn’t matter.
3. Listen for a Beep: A continuous beep means the fuse has continuity and is still good. If there’s no beep, the fuse is most likely blown.
4. Check the Display: Many multimeters also show a reading on the screen. A very high resistance value confirms that the fuse is blown.

Following these steps lets you quickly confirm whether a fuse is still working or needs to be replaced.

Resistance Testing

Measuring resistance gives you another way to test the condition of a fuse. Here’s how to do it:

1. Ensure Safety: Make sure the fuse is completely disconnected from any power source.
2. Set the Multimeter: Switch your multimeter to the resistance function, marked with the Ω symbol.
3. Connect the Probes: Place one probe on each metal cap of the fuse, ensuring good contact.
4. Read the Value: A healthy fuse should show very low resistance, close to zero ohms. A blown fuse will read as infinite resistance or display “OL” (overload) on the screen.

By combining continuity and resistance tests, you can be confident in your fuse diagnostics and keep your electrical systems running safely.

Voltage Testing

Checking for voltage across a fuse holder helps you confirm whether the circuit is live and if the fuse is still working. Follow these steps to carry out a voltage test:

1. Prioritize Safety: Make sure the circuit can be safely powered and that it’s safe to continue before beginning the test.
2. Set the Multimeter: Turn the dial to the voltage measurement setting. If you’re unsure of the expected voltage, start with the highest range and then step down as needed.
3. Probe the Fuse Holder: Place one probe on each terminal of the fuse holder. Avoid touching the metal tips of the probes with your fingers during this step.
4. Read the Measurement: A reading of zero usually means the fuse is blown, since current can’t flow through it. A normal voltage reading (close to the expected supply voltage) indicates the circuit is live and the fuse is functioning correctly.

By combining voltage, continuity, and resistance tests, you can thoroughly check a fuse and ensure your electrical systems remain safe and reliable.

How to Interpret Your Multimeter Readings

Knowing how to correctly read your multimeter results is key to understanding the condition of a fuse. Different readings tell you if a fuse is working well, close to failing, or already blown.

Here’s a breakdown of what each reading means, along with a quick-reference table:

1. Continuity Test:

• Beep: The fuse is good and doesn’t need replacing.
• No Beep: The fuse is blown and should be replaced.

2. Voltage Test (across the fuse holder):

• Voltage Detected (near expected voltage): The fuse is intact, and the circuit is live.
• No Voltage (0 volts): The fuse is likely blown, especially if other parts of the circuit still have power.

3. Resistance Test:

• Very Low Resistance (close to 0 Ω): The fuse is good.
• High or Infinite Resistance (display shows “OL”): The fuse is blown.

Understanding these readings will help you quickly determine whether your fuse is functional or needs replacing, keeping your electrical system safe and running smoothly.

Safety Tips for Handling Fuses

Working with fuses means dealing with electricity, so it’s vital to follow strict safety rules to avoid accidents. Here are some key precautions to always keep in mind:

• Turn Off Power: Before testing or replacing a fuse, make sure the circuit’s power is completely switched off.
• Double-Check Power Is Off: Use a voltage tester or your multimeter to confirm there’s no electricity flowing. Don’t just rely on the switch being off—always verify.
• Use Insulated Tools: Always work with tools that have insulated handles. This extra protection helps prevent electric shocks.
• Wear Protective Gear: Use appropriate personal protective equipment (PPE) such as rubber-soled shoes, insulated gloves, and safety glasses to protect yourself from shocks and other injuries.
• Match Fuse Type and Rating: Replace blown fuses only with the exact same type and rating. Using a fuse with a higher rating can cause overheating and fire hazards.
• Avoid Touching Metal Parts: Be careful not to touch any metal terminals or parts with bare hands when testing or replacing fuses.
• Keep Your Workspace Safe: Make sure your work area is dry and clear of clutter, wires, or water to reduce electrical hazards.
• Follow Manufacturer’s Instructions: Always consult the equipment manual for specific fuse handling and safety guidelines.

Common Mistakes to Avoid

• Never Bypass a Fuse: Don’t replace a blown fuse with wire or any other conductor as a temporary fix. This is dangerous and can lead to serious damage or fire.
• Don’t Ignore Warning Signs: If a fuse blows repeatedly or your system shows issues like flickering lights or strange noises, get a professional to check it out. These symptoms can indicate bigger electrical problems.

By following these safety tips and steering clear of risky practices, you’ll protect yourself and maintain the safety and reliability of your electrical systems.

Troubleshooting and Common Problems

When testing fuses, you might run into a few challenges that can make the process tricky. Below are some common issues along with solutions and helpful tips:

Inconsistent Multimeter Readings

• Possible Cause: Poor contact between the multimeter probes and the fuse terminals.
• Solution: Clean both the fuse terminals and multimeter probes to remove dirt or oxidation. Make sure the probes press firmly against the terminals.
• Tip: If readings still vary, check the multimeter’s battery and consider recalibrating the device if needed.

Fuse Keeps Blowing

• Possible Cause: Circuit overload or a short circuit in the wiring.
• Solution: Inspect the circuit for faulty or incorrectly rated appliances that might be causing an overload. Look for damaged wires or shorts.
• Tip: For recurring problems, it’s best to consult a professional electrician to diagnose and fix complex wiring issues.

Unclear Fuse Ratings

• Possible Cause: Worn or faded labels on the fuse or fuse box, making it hard to identify the right fuse rating.
• Solution: Check the equipment manual or manufacturer’s website for correct fuse ratings. You can also ask an electrician for guidance.
• Tip: Clearly label replacement fuses and the fuse box to prevent confusion in the future.

Safety Concerns When Handling Electrical Parts

• Possible Cause: Not using proper protective gear or unsafe handling techniques.
• Solution: Always wear suitable personal protective equipment (PPE) like insulated gloves and safety glasses. Follow all safety procedures carefully.
• Tip: Regularly update your safety practices and PPE based on the latest industry recommendations.

By tackling these common issues, you can make fuse testing and replacement easier, reduce downtime, and maintain a safer electrical system. Keep these tips handy for smoother maintenance and troubleshooting.

How to Maintain and Care for Your Multimeter

Regular upkeep is key to keeping your multimeter accurate and reliable throughout its life. Here are some important tips to help you care for your device:

Proper Storage

• Store your multimeter in a clean, dry spot to prevent moisture and dust buildup. If it came with a carrying case, use it to protect against bumps and environmental damage.

Battery Replacement

• Check Often: Keep an eye on the battery level; many models have a low-battery indicator.
• Replace Promptly: Change batteries as soon as they run low to avoid inaccurate readings and ensure your multimeter works when you need it.
• Choose Quality Batteries: Using good-quality batteries improves performance and reliability.

Regular Calibration

• Follow Manufacturer’s Advice: Refer to your user manual for recommended calibration schedules. Typically, calibration is done yearly, but heavy use or harsh conditions may require more frequent checks.
• Professional Calibration: Have your multimeter professionally calibrated to ensure measurements stay accurate. Calibration services can also fix issues detected during the process.

Cable and Probe Care

• Inspect Before Use: Check cables and probes for wear, cracks, or loose connections before every use.
• Clean Gently: Wipe down probes and cords with a dry cloth. For tougher dirt, use a cloth lightly dampened with mild soap.
• Replace When Needed: Swap out damaged probes or cables promptly to maintain safety and accuracy.

Avoid Extreme Conditions

• Temperature & Humidity: Keep your multimeter away from extreme heat, cold, or moisture, which can harm internal parts and affect readings.
• Electrical Overload: Don’t use the multimeter on circuits that exceed its specified limits to avoid damaging the device.

By following these care tips, you can prolong your multimeter’s lifespan and keep it delivering precise, dependable measurements for years to come.

Ensure Accurate Measurements and Safe Work with the Right Multimeter

Frustrated by equipment failures halfway through a project? Worried about the risks of incorrect fuse testing? Using the right tools can help you avoid these problems and keep your work running smoothly—without costly delays.

Our range of multimeters is designed to meet these challenges head-on. Whether you’re a beginner or a seasoned professional, our devices offer exceptional reliability, precision, and ease of use.

From complex industrial setups to simple home electronics, our tools help protect the quality of your work while keeping both your projects and personnel safe.

In this guide, we’ve covered why proper multimeter use is vital for testing and replacing fuses. We explained common fuse types and testing methods, and highlighted essential safety precautions for electrical work.

We also shared practical tips to overcome frequent fuse testing issues and offered advice on maintaining your multimeter for consistent, accurate performance.

Choosing a JMBom multimeter means more than just picking a tool—it means investing in dependable accuracy and safety.

Our products deliver precise test results that are both accessible and affordable. Let us support your success with equipment designed to meet your exact needs—because your precision and safety are our top priorities.
