Today’s engineers are faced with a wide range of options when it comes to selecting the right analysis tools. With so many types and brands available, the process can feel overwhelming. Finding the best fit often requires significant time and effort, especially since many tools appear quite similar.

Two of the most commonly considered instruments are network analyzers and spectrum analyzers. But what sets them apart? And how do you determine which one best suits your needs? In this article, we’ll break down the main differences between these analyzers to help you choose the right tool for your application.

Understanding Network Analyzers

In this section, we’ll cover the essentials of network analyzers. You’ll learn about the different types available, how they work, their main applications, important features, and the ways they are typically used.

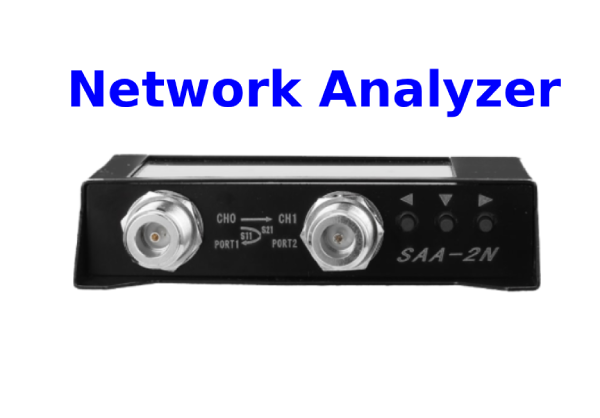

What is a Network Analyzer?

A network analyzer is a device used to measure the network parameters of electrical circuits. Most often, it is used to measure S-parameters, which describe the input and output behavior of linear circuits across different ports.

In addition to S-parameters, network analyzers can also measure Y-parameters, Z-parameters, and H-parameters, which are useful for characterizing nonlinear circuits. By analyzing these parameters, engineers gain insights into how a circuit will perform under various conditions.

Network analyzers are also valuable tools for optimizing circuit performance. They can measure important characteristics such as gain, return loss, and impedance. Techniques like power measurement are used to determine signal strength, while frequency sweeps reveal a circuit’s frequency response. For impedance testing, some analyzers use Time Domain Reflectometry (TDR), a specialized time-domain method.

These instruments come in different formats, including handheld devices, benchtop units, and modular systems. They are also available with different port configurations, such as 2-port, 4-port, or 8-port models, depending on the application.

Types of Network Analyzers

Network analyzers generally fall into three main categories:

• Vector Network Analyzers (VNAs)
• Scalar Network Analyzers (SNAs)
• Large-Signal Network Analyzers

Vector Network Analyzers (VNAs) are the most widely used type of network analyzer today. They provide several benefits, such as the ability to measure all four S-parameters simultaneously and operate across a broad frequency range, making them suitable for many applications.

Scalar Network Analyzers (SNAs), on the other hand, only measure the amplitude characteristics of a circuit, without capturing phase information.

Large-Signal Network Analyzers are less common than VNAs or SNAs, but they stand out for their ability to measure nonlinear circuit behavior, which makes them useful in a broader range of applications.

What Are Network Analyzers Used For?

Network analyzers serve a wide range of purposes, from measuring and characterizing circuits to debugging and even calibrating other instruments. They are widely applied in industries such as telecommunications, aerospace, and automotive engineering.

Some of the most common applications include:

• High-Frequency Measurements – Network analyzers evaluate a circuit’s response at high frequencies, helping engineers see how it behaves under different conditions. This also makes it easier to identify and correct performance issues that occur at higher frequencies.
• Transmission and Reflection Measurements – By measuring how signals travel through a medium and how much is reflected, engineers gain a better understanding of circuit behavior.
• Two-Port Network Characterization – Network analyzers are often used to measure S-parameters of a two-port network. These four parameters describe how signals interact at the input and output, providing valuable insight into circuit performance.
• Other RF Measurements – Additional uses include analyzing gain, return loss, and noise figure, which are essential for fine-tuning and optimizing RF systems.

When selecting a network analyzer, it’s important to factor in the type of analyzer, required frequency range, and budget. With many manufacturers and models available, comparing features and specifications will help ensure you choose the best fit for your application.

Now that we’ve covered how network analyzers are used, let’s take a closer look at some key specifications.

Network Analyzer Specifications

When choosing a network analyzer, it’s important to understand the key specifications that define its performance and suitability for your application. Some of the most important specs include:

• Frequency Range – The span of frequencies the analyzer can measure. This directly impacts the types of applications it can handle.
• Dynamic Range – The ratio between the strongest and weakest signals the analyzer can accurately measure.
• Output Power – The signal power level the analyzer can deliver to a circuit.
• Accuracy – How closely the measured values match the true values of the signals.
• Precision – How consistent repeated measurements are with one another.
• Bandwidth – The frequency span over which the analyzer can perform measurements.
• Noise – Expressed as the signal-to-noise ratio, showing how much the signal stands out from background noise.
• Sweep Time – The time required for the analyzer to complete one full measurement sweep.
• Number of Ports – The number of test connections available on the analyzer.

As you can see, a variety of specifications come into play when selecting the right network analyzer. Next, let’s shift our focus to spectrum analyzers.

All About Spectrum Analyzers

In this section, we’ll dive into spectrum analyzers (also called signal analyzers). We’ll begin with what they are, review their key specifications, and explore the different types available. By the end, you’ll have a clear understanding of spectrum analyzers and the many ways they are used.

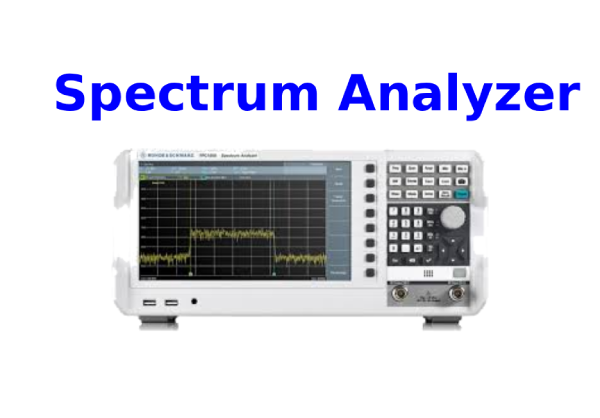

What Is a Spectrum Analyzer?

A spectrum analyzer is an instrument used to measure the strength of a signal across a range of frequencies. It produces a graph that shows signal amplitude versus frequency—with frequency on the horizontal (X) axis and amplitude on the vertical (Y) axis. This allows you to see which frequencies are present in a signal and how much power each one carries. Such information is valuable for diagnosing circuit issues, fine-tuning performance, and more.

In essence, spectrum analyzers act as specialized receivers that display radio frequency (RF) signals. They are especially useful for identifying sources of interference, troubleshooting signal problems, and optimizing system performance. Because of these capabilities, they are widely used in radio, telecommunications, and related fields.

Real-World Uses of Spectrum Analyzers

Spectrum analyzers have many practical applications, such as:

• Locating sources of interference in radio systems
• Diagnosing signal degradation and identifying its root cause
• Optimizing radio system performance for clearer and stronger signals
• Detecting equipment faults that affect signal quality
• Analyzing digital system behavior to ensure proper operation

Types of Spectrum Analyzers

Spectrum analyzers come in various forms, and the best choice depends on your specific needs and application. For instance, handheld spectrum analyzers are portable and easy to use on the go, while benchtop models are larger, pricier, but offer advanced features and higher performance.

Here are the three main types of spectrum analyzers:

• Fast Fourier Transform (FFT) Spectrum Analyzers These analyzers break down a signal into its individual frequency components, showing all present frequencies and their amplitudes.
• Real-Time Spectrum Analyzers These provide continuous, live measurement of signals, making them ideal for real-time monitoring and detecting intermittent or fast-changing events.
• Superheterodyne Spectrum Analyzers The most common type, these analyzers mix the input signal with a local oscillator to generate an intermediate frequency (IF). The IF signal is then amplified and filtered before being displayed.

Choosing the right analyzer depends on what you want to achieve. For example, if you need to detect signal interference as it happens, a real-time analyzer is ideal. If you want a complete view of all frequencies in a signal, an FFT analyzer is the better option.

That covers the main types of spectrum analyzers. Next, let’s explore their applications.

What Are Spectrum Analyzers Used For?

Spectrum analyzers have a wide range of applications across many industries. They’re commonly used for troubleshooting, performance optimization, signal measurement, and more.

Some typical uses include:

• Signal Frequency Measurements One of the most frequent uses is measuring a signal’s frequency, which helps in tuning and optimizing system performance.
• Signal Troubleshooting If a signal is weak or experiencing issues, a spectrum analyzer can help identify the source by analyzing its frequency components. This is valuable for diagnosing problems in applications like Wi-Fi, cellular networks, and other wireless systems.
• Frequency Analysis Beyond just detecting frequency, spectrum analyzers can find the signal’s center frequency or measure its bandwidth—critical tasks in radio and communication systems.
• Phase Noise Measurements They can also assess phase noise, which is unwanted interference in a signal’s frequency domain. Identifying phase noise helps engineers reduce it and enhance signal quality.
• Intermodulation Distortion (IMD) Measurements IMD occurs when multiple signals mix, creating new unwanted frequencies. Spectrum analyzers detect these distortions, which can cause performance problems in many systems.

As you can tell, spectrum analyzers serve many purposes. Beyond the applications we’ve covered, they’re also commonly used for testing electronic filter circuits. For instance, a filter is designed to allow signals within a specific frequency range to pass while blocking others. A spectrum analyzer can verify whether the filter is performing correctly by analyzing the signals it lets through.

Spectrum Analyzer Specifications

When selecting a spectrum analyzer, there are many features and specifications to keep in mind. Here are some of the most important ones:

• Frequency Range: The span of frequencies the analyzer can measure. Make sure the device covers the frequency range relevant to your needs.
• Dynamic Range: The difference between the largest and smallest signals the analyzer can accurately detect.
• Noise: The level of interference present in the signal measurement. Lower noise levels mean clearer, more reliable readings.
• Bandwidth: The range of frequencies the analyzer can measure at once. Higher bandwidth offers more detailed measurements but usually comes at a higher cost.
• Resolution: The smallest frequency difference the analyzer can distinguish. This impacts the precision and detail of your measurements.
• Display Type: Spectrum analyzers typically come with either analog or digital displays. Analog displays tend to be less expensive but may lack the accuracy of digital screens.
• Input Type: Common input types include coaxial and optical. While coaxial inputs are standard, optical inputs are gaining popularity for their improved performance.

These are just some of the key specifications to consider. Ultimately, your choice should balance your technical requirements with your budget, as a wide range of models is available.

Spectrum vs. Network Analyzers: Key Differences

While spectrum analyzers and network analyzers might seem similar, they serve different purposes and have distinct features. The table below highlights their main differences in specifications and applications:

When choosing between the two, consider your specific needs. If your goal is to measure signals across a broad range of frequencies, a spectrum analyzer is the right choice. For diagnosing network-related issues and measuring parameters like gain or return loss, a network analyzer will be more suitable.

Choose the Perfect Analyzer for Your Needs!

Getting accurate and reliable results starts with choosing the right analyzer you can depend on. We understand that selecting the ideal analyzer can feel overwhelming—but it doesn’t have to be. At JMBom, we specialize in helping you find the perfect analyzer that fits both your technical needs and budget.

If you’re searching for network analyzers trusted by over 70% of engineering teams worldwide, explore our selection here.

Looking for a spectrum analyzer that delivers trustworthy results every time? We’ve got you covered.

Closing Thoughts from JMBom

As we’ve discussed, picking the right analyzer depends largely on the types of signals you need to measure. Both network and spectrum analyzers are powerful tools, each designed to measure different aspects of electronic signals.

Remember:

• Network analyzers measure the electrical properties within a network.
• Spectrum analyzers measure the amplitude of signals across different frequencies.

No matter which type you need, JMBom is here to help you find the right fit. We offer a wide range of quality-used equipment, including spectrum and network analyzers trusted by engineers worldwide.

Need assistance selecting the perfect analyzer? Contact us today — we’re ready to help!
