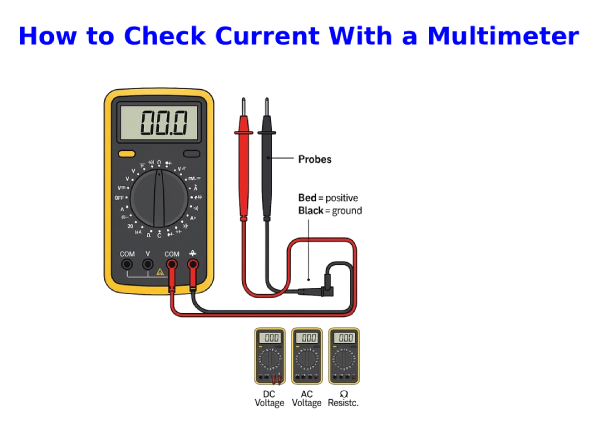

How to Measure Current Using a Multimeter

"Accuracy matters—just one small error can have bigger consequences than you’d expect." In electrical engineering, current is a core concept that impacts how well a system works and how efficiently it runs. To get a clear picture of electrical flow, engineers turn to a key tool: the multimeter.

A multimeter allows engineers to observe and analyze how current behaves within a circuit. It provides insights into the movement of electricity, offering a window into the system’s inner workings. However, measuring current isn't always straightforward. Accurate readings—especially in complex electrical setups—can be tricky to obtain.

Consider the frustration of a seasoned engineer who relied on a multimeter, only to realize later that a small misreading threw off his entire day. That single oversight led to hours of unnecessary troubleshooting. It’s a powerful reminder that measuring current demands care, attention, and experience. For anyone who’s worked with a multimeter, this kind of scenario is all too familiar.

The Multimeter: A Multi-Purpose Instrument

A multimeter is a key instrument used to measure current, voltage, and resistance within an electrical circuit. Its precision in detecting current flow makes it a must-have for engineers. Offering real-time feedback on how components and systems behave electrically, the multimeter acts as a crucial bridge between the engineer and the inner workings of a circuit.

So, what makes this tool so indispensable? It’s the multimeter’s precision and versatility. From quick diagnostics on a test bench to detailed evaluations in complex systems, the multimeter serves as a reliable companion—providing accurate, timely data whenever it’s needed.

Why Quality and Calibration Matter

Still, a multimeter is only as reliable as its build quality and how well it’s calibrated. A well-made multimeter minimizes the risk of errors, while consistent calibration ensures that measurements stay accurate and trustworthy over time.

Calibration services from trusted names like JMBom take things a step further. JMBom’s rigorous calibration standards not only improve measurement accuracy but also help extend the tool’s service life. When engineers choose top-tier multimeters, they’re investing in dependable performance—ensuring that every current reading is spot-on and every decision is backed by confidence.

Measuring Current with an Analog Multimeter

While considered more traditional than their digital counterparts, analog multimeters still play an important role in modern electrical engineering. Featuring a needle that moves across a graduated scale, these devices provide a tactile, visual way to monitor electrical values—offering certain advantages that many professionals still appreciate.

Here are some notable features and benefits of analog multimeters:

• Analog readout: Offers a smooth, real-time visual indication of changes, which can be easier to interpret for fluctuating signals than a digital readout.
• Built to last: Typically rugged and reliable, making them well-suited for tough working environments.
• Straightforward operation: Easy to use, with fewer advanced settings—ideal for basic current and voltage checks.
• Budget-friendly: Often more economical than digital models, making them a practical choice for those watching costs.
• Responsive to signal variations: Capable of detecting rapid shifts in input, which can be especially useful during troubleshooting.

Despite the prevalence of digital instruments, these benefits reinforce the ongoing value of analog multimeters. Their simplicity, responsiveness, and affordability ensure they remain a trusted option for many professionals.

Step-by-Step Instructions for Measuring Current with an Analog Multimeter

To measure current using an analog multimeter, follow these simple steps:

1. Power down the circuit: Always start with safety—switch off the power before connecting the multimeter to avoid any risk of shock or damage.
2. Set the correct range: Adjust the dial to the appropriate current range, typically labeled with an ‘A’ to indicate amperes.
3. Plug in the probes correctly: Insert the red probe into the terminal marked ‘A’, and the black probe into the ‘COM’ (common) terminal.
4. Connect in series: Place the multimeter probes in series with the circuit where you want to measure current. This ensures the current flows through the meter.
5. Switch the circuit back on: Turn the power back on and watch the needle on the scale respond to the current flow.
6. Read the measurement: Note the needle position and interpret the value according to the range setting you selected.
7. Remove probes safely: Once done, turn off the circuit again before disconnecting the multimeter.

Common Issues and Practical Fixes When Using Analog Multimeters

Achieving accurate current measurements with an analog multimeter depends on understanding how it works, following proper safety practices, and being aware of typical issues. While some may view analog meters as outdated, they remain valuable tools—offering a clear, visual method of measurement that many engineers still prefer for its subtle responsiveness and straightforward design.

Measuring Current with a Digital Multimeter

Digital multimeters—commonly known as DMMs—are essential tools in today’s electrical engineering landscape. These advanced devices have largely taken the place of analog models in many professional environments, offering a wide range of modern features that meet the needs of current technologies.

Some of the standout features and advantages of digital multimeters include:

• Clear digital display: Provides exact numerical readings, removing the ambiguity often associated with analog needles and scales.
• Multifunctional capability: Combines several measurement tools into one compact device, making it both practical and efficient.
• High precision: Typically delivers greater accuracy and resolution than analog meters, ideal for detailed measurements.
• Data recording: Enables users to log and analyze readings over time—especially useful for troubleshooting and research.
• Auto-ranging functionality: Automatically detects and sets the correct range, streamlining the measurement process for the user.

These capabilities highlight why digital multimeters are now considered a standard instrument for engineers worldwide—delivering convenience, reliability, and superior performance.

Step-by-Step Instructions for Measuring Current with a Digital Multimeter

To accurately measure current using a digital multimeter (DMM), follow these steps:

1. Get the circuit ready: Turn off the power and ensure the circuit is completely de-energized before making any connections.
2. Configure the multimeter: Set the dial to the current (A) setting, and choose either AC or DC based on the type of current you’re measuring.
3. Insert the probes correctly: Plug the red lead into the jack labeled ‘A’ and the black lead into the ‘COM’ port.
4. Connect in series: Insert the multimeter into the circuit in series at the point where you need to measure current. This allows current to flow through the meter.
5. Restore power: Turn the circuit back on and view the current value shown on the digital display.
6. Capture the reading: Use the DMM’s data logging feature if available, or simply note the value for reference.
7. Remove the meter safely: Power down the circuit again before disconnecting the probes.

Common Issues and Practical Solutions When Using Digital Multimeters

Digital multimeters have transformed how engineers measure and analyze current—bringing greater accuracy, efficiency, and insight to every task. By understanding how to use them correctly and recognizing common pitfalls, professionals can take full advantage of these advanced tools. As a result, DMMs have become an essential and dependable part of modern electrical engineering.

Alternative Methods for Measuring Current

Current measurement can be approached in several ways. While analog and digital multimeters are widely used, other tools offer valuable alternatives—each with specific strengths suited to different applications. Knowing when to use these alternatives instead of traditional multimeters expands your measurement toolkit and enhances both precision and flexibility.

• Multimeters: Best for everyday current measurements, available in both analog and digital formats to suit a broad range of needs.
• Clamp Meters: Ideal for measuring large currents without interrupting the circuit—commonly used in industrial and high-power settings.
• Oscilloscopes: Designed for waveform analysis, these instruments are perfect for capturing transient events and conducting detailed evaluations during R&D work.

Clamp Meters

Clamp meters measure current by encircling a conductor with a sensor, allowing for contactless readings. This method eliminates the need to physically disconnect the circuit, offering several key benefits:

• Non-contact measurement: Enables safe, fast current checks without disturbing live wiring.
• Handles high currents: Designed to measure large current loads that may exceed the capabilities of standard multimeters.
• User-friendly design: Particularly helpful in tight spaces or when quick measurements are needed in the field.

Due to these advantages, clamp meters are especially valuable in industrial and commercial environments, where high current levels and safety concerns make traditional measurement methods less practical.

Oscilloscopes

Although oscilloscopes aren't primarily designed for measuring current, they excel at providing in-depth insight into current behavior through waveform visualization. When equipped with the proper current probes or accessories, they become powerful tools for specialized analysis in the following scenarios:

• Waveform visualization: Enables detailed observation of a current’s shape, frequency, and amplitude—crucial for diagnosing abnormalities in signal behavior.
• Transient detection: Captures short-duration current spikes or drops that standard multimeters might miss.
• R&D applications: Widely used during product development and testing, offering real-time graphical feedback that supports fine-tuned analysis and circuit optimization.

Oscilloscopes are typically found in laboratories, engineering research centers, and advanced industrial environments where a deeper understanding of current flow is required.

These advanced methods complement the standard use of multimeters, providing targeted advantages for specific applications. By recognizing when and how to apply these tools—such as clamp meters for non-invasive high-current checks or oscilloscopes for waveform analysis—engineers can choose the most effective approach for accurate, context-driven current measurement.

Pro Tips for Achieving Accurate Current Measurements

Measuring current with precision requires more than just choosing the right instrument—it’s about applying the right techniques and habits that lead to consistent, dependable results. Whether you're working with a multimeter, clamp meter, oscilloscope, or other specialized equipment, the following expert tips will help you ensure accuracy, safety, and confidence in every reading:

• Select the appropriate tool: Choose your measurement device based on your specific needs—considering factors such as current range, resolution, accuracy, and application type.
• Know your equipment: Take time to understand how your instrument works and its limitations. Reviewing the user manual can prevent costly mistakes and improve measurement reliability.
• Keep your device calibrated: Schedule regular calibrations with trusted service providers like JMBom to maintain long-term accuracy. Calibration ensures your instrument remains within specified tolerances.
• Make correct connections: For multimeters and similar tools, always connect in series when measuring current. Knowing the correct wiring method for your device is essential for valid results.
• Prioritize safety: Always turn off the circuit before connecting instruments. Use proper personal protective equipment (PPE) like insulated gloves and safety glasses, and follow the manufacturer's safety recommendations.
• Set the correct range and mode: Use auto-ranging when available or manually set the correct current range to match your expected values. Incorrect settings can lead to faulty readings or damage.
• Avoid parallax errors on analog meters: When using analog multimeters, read the needle directly over the mirrored scale to prevent visual misjudgment.
• Account for environmental influences: Temperature, humidity, and electromagnetic interference can affect measurements. Perform critical tests in controlled conditions when possible.
• Use the right accessories: Ensure you’re using leads, probes, or current clamps designed for your specific instrument and current range. High-quality accessories support safer and more accurate measurements.
• Inspect your gear routinely: Check your multimeter or other equipment for signs of damage, frayed cables, or worn-out probes before every use.
• Learn through practice and training: Continual hands-on experience combined with technical training deepens your understanding and builds confidence in dealing with diverse measurement challenges.

Accurate current measurement isn’t just about collecting data—it’s about building a deeper understanding of how electricity behaves in your system. With a thoughtful, disciplined approach, you’ll go beyond just reading numbers and start truly mastering the flow of current that powers the world of electronics.

The Safety Aspect: Essential Guidelines and Precautions

When it comes to current measurement, safety must always come first—especially in high-voltage or potentially hazardous environments. Whether you're using an analog or digital multimeter, strict adherence to safety practices helps protect both the user and the equipment from harm.

Comprehensive Safety Checklist for Measuring Current

• Power down the circuit: Always disconnect the power supply before attaching measurement tools to avoid electric shock or accidental short circuits.
• Use properly rated tools: Ensure that your test leads, probes, and accessories are rated for the specific voltage and current levels in your application.
• Check your equipment: Inspect all tools regularly for wear, frayed wires, cracks, or any signs of damage that could compromise safety.
• Wear appropriate PPE: Use personal protective equipment such as insulated gloves, safety glasses, or flame-resistant clothing as required.
• Never work alone in high-risk situations: In hazardous settings, always have someone nearby in case of emergency.
• Follow manufacturer instructions: Always refer to and follow the operating guidelines provided by the multimeter manufacturer to ensure proper usage.
• Be aware of your surroundings: Watch for additional hazards such as moisture, confined spaces, or flammable materials that could increase risk.
• Respect built-in safety features: Never bypass internal fuses, overload protection, or other safety mechanisms built into your measurement tools.

Measuring current may seem like a routine task, but it involves serious risks if done carelessly. Whether you're a seasoned technician or a beginner, staying vigilant and following established safety protocols is non-negotiable. These precautions form the cornerstone of responsible electrical work—because in the world of engineering, safety isn't optional—it's essential.

The Hidden Advantages of Purchasing Used Multimeters

In today’s fast-paced tech world, buying used multimeters might not be the first option that comes to mind. Yet, used multimeters bring a range of valuable benefits that appeal to both seasoned professionals and enthusiastic hobbyists. From significant cost savings to environmental responsibility, these advantages make used equipment a smart and practical choice in modern electrical engineering.

Affordable Without Sacrificing Performance

Used JMBom multimeters offer excellent value, delivering the same trusted accuracy and functionality the brand is known for—at a fraction of the cost. Key benefits include:

• Equivalent performance: Each used unit undergoes rigorous testing and calibration to ensure it meets strict standards, matching the performance of brand-new models.
• Access to premium models: Buying used opens the door to high-end JMBom multimeters that might otherwise be cost-prohibitive.
• Warranty protection: JMBom backs their used instruments with warranties identical to new products, giving buyers added peace of mind.

Tested, Certified, and Ready to Use

Unlike some new instruments that may require initial setup or calibration, used JMBom multimeters are thoroughly tested, certified, and pre-calibrated, making them ready for immediate deployment. Benefits include:

• No factory defects: Comprehensive testing removes any concerns about manufacturing flaws.
• Time efficiency: Buyers can start using the instrument right away, without delays for calibration or setup.
• Professional certification: Calibration certificates are provided, ensuring compliance with industry standards and quality assurance.

Eco-Friendly Choice

Choosing a used JMBom multimeter is also a step toward sustainability, with clear environmental advantages:

• Minimized electronic waste: Extending the life of quality equipment reduces e-waste and promotes responsible resource use.
• Lower carbon footprint: By reducing demand for new manufacturing, buying used helps decrease energy consumption and associated emissions.

Conclusion: Empowering Your Electrical Engineering Endeavors

In electrical engineering, mastering accurate current measurement is a foundational skill—and the multimeter is the essential instrument that makes it possible. This article has taken you through the nuances of current measurement, showcasing the strengths of both analog and digital multimeters. It has emphasized the importance of quality, proper calibration, safety practices, and even the often-overlooked advantages of purchasing used equipment.

By harnessing the precision and flexibility of multimeters, you can elevate your projects and drive innovation to new levels. Whether you’re a seasoned expert or an aspiring engineer, mastering current measurement is key to unlocking your full potential in this fast-paced, ever-evolving field.

Final Key Takeaway: Prioritize Quality and Precision

In the complex and demanding world of electrical engineering, quality and precision are not optional—they are essential. Selecting the right tool means investing in accuracy, reliability, and top-tier performance. JMBom’s multimeters reflect these core values, delivering cutting-edge technology and robust support. Whether you choose a brand-new instrument or a rigorously tested used model from JMBom’s Used Equipment Store, you can trust that each device meets the highest standards expected by today’s professionals.

Our commitment goes beyond providing superior products—it includes comprehensive calibration services, expert support, and educational resources designed to deepen your knowledge and skill in current measurement.

When you choose JMBom, you align yourself with a tradition of excellence and innovation embraced by engineers worldwide. Choose quality. Choose precision. Choose JMBom—and let their multimeters be the key to unlocking your success in this dynamic and rapidly advancing field.
