A transformer is like the interpreter of the electrical world. Just as a skilled interpreter converts one language into another while keeping the meaning intact, a transformer changes voltage levels for different uses without changing the total electrical power.

This voltage adjustment is essential to ensure the power matches your equipment’s needs—whether that means increasing voltage for efficient long-distance transmission or reducing it for safe operation in your devices.

These choices directly influence both efficiency and safety. That’s why you might ask yourself, “Which transformer is right for my situation?” or “How can I cut down on energy loss while boosting reliability?”

Transformers are at the core of every power system, adjusting voltage up or down to suit specific demands.

By understanding the basics of electromagnetism and voltage conversion, you’ll get a clearer idea of how transformers work and why they’re so important in today’s electrical networks.

In this guide, we’ll break down the key principles and components behind transformers so you can make smarter choices and get the most out of your power systems.

What Is a Transformer?

A transformer is an electrical device designed to adjust voltage levels so they fit the needs of different applications. Its main job is to either step up (increase) or step down (decrease) voltage while keeping the overall power the same.

It works through the principles of electromagnetic induction and mutual inductance. When alternating current flows through the primary winding, it creates a magnetic field, which then induces a voltage in the secondary winding.

The voltage change depends on the ratio between the number of turns in the primary and secondary windings. This design allows transformers to efficiently modify voltage, ensuring safe and reliable power distribution across a wide range of systems.

What Is a Transformer

Practical Applications of Transformers

Transformers are essential in both industrial and commercial settings, helping manage and distribute power efficiently. Here’s how they’re used in different areas.

Power Distribution Networks

• High-voltage transmission: Transformers increase voltage for long-distance transmission, reducing energy loss and allowing electricity to travel efficiently over great distances.
• Voltage step-down: At substations, transformers lower high transmission voltages to safe, usable levels for homes, businesses, and industries.
• End-user delivery: Distribution transformers reduce voltage even further, making it safe for household appliances and small business operations.

Industrial Settings

• Manufacturing plants: Transformers supply the correct voltage for machinery and equipment, ensuring stable power for production lines and automated systems.
• Data centers: They provide precise voltage regulation for critical infrastructure, keeping servers and IT systems running reliably—vital for data storage and processing.

Renewable Energy Integration

• Solar and wind farms: Transformers convert the variable output from renewable sources into stable, grid-compatible voltage, allowing smooth integration into the power network.
• Grid-tied inverters: Transformers inside inverters step up renewable energy voltage to match grid requirements for efficient transfer to the main power system.

Specialized Applications

• Electric vehicles: In charging stations, transformers adjust grid voltage to the right level for charging EV batteries, helping drive the growth of electric transport.
• Smart grids: Transformers enable dynamic voltage control and efficient distribution in smart grids, supporting advanced features like load balancing and real-time monitoring.

From everyday power delivery to advanced systems like renewable energy and smart grids, transformers play a central role in ensuring reliable, efficient electricity supply. Their ability to adjust and regulate voltage makes them indispensable to modern electrical infrastructure.

Practical Applications of Transformers

Transformers are essential in both industrial and commercial settings, helping manage and distribute power efficiently. Here’s how they’re used in different areas.

Power Distribution Networks

• High-voltage transmission: Transformers increase voltage for long-distance transmission, reducing energy loss and allowing electricity to travel efficiently over great distances.
• Voltage step-down: At substations, transformers lower high transmission voltages to safe, usable levels for homes, businesses, and industries.
• End-user delivery: Distribution transformers reduce voltage even further, making it safe for household appliances and small business operations.

Industrial Settings

• Manufacturing plants: Transformers supply the correct voltage for machinery and equipment, ensuring stable power for production lines and automated systems.
• Data centers: They provide precise voltage regulation for critical infrastructure, keeping servers and IT systems running reliably—vital for data storage and processing.

Renewable Energy Integration

• Solar and wind farms: Transformers convert the variable output from renewable sources into stable, grid-compatible voltage, allowing smooth integration into the power network.
• Grid-tied inverters: Transformers inside inverters step up renewable energy voltage to match grid requirements for efficient transfer to the main power system.

Specialized Applications

• Electric vehicles: In charging stations, transformers adjust grid voltage to the right level for charging EV batteries, helping drive the growth of electric transport.
• Smart grids: Transformers enable dynamic voltage control and efficient distribution in smart grids, supporting advanced features like load balancing and real-time monitoring.

From everyday power delivery to advanced systems like renewable energy and smart grids, transformers play a central role in ensuring reliable, efficient electricity supply. Their ability to adjust and regulate voltage makes them indispensable to modern electrical infrastructure.

Fundamental Electrical Principles Behind Transformers

To understand how transformers work, it’s helpful to start with some basic electrical concepts:

• Voltage: The electrical potential difference between two points. Transformers adjust voltage levels to suit different applications.
• Current: The flow of electric charge through a conductor. Transformer design ensures that current matches the voltage requirements.
• Resistance: The opposition a material offers to the flow of current. Efficient transformers minimize resistance to reduce energy losses.

Electromagnetism and Faraday’s Law

Transformer operation is based on electromagnetism. Faraday’s Law states that a changing magnetic field within a coil induces an electromotive force (EMF).

In a transformer, alternating current flowing through the primary coil generates a changing magnetic field. This changing field induces a voltage in the secondary coil.

By varying the number of turns in each coil, transformers can step voltage up or down efficiently to meet specific power needs.

Key Components of a Transformer

A transformer is made up of several essential parts, each playing a specific role in its operation. At its core—literally and figuratively—are the magnetic core and the windings, which work together to transfer energy between circuits using electromagnetic induction.

Cores

The magnetic core is responsible for guiding the magnetic flux produced by the windings. By efficiently channeling this magnetic field between the primary and secondary windings, the core boosts the transformer's performance.

Common Core Materials

• Laminated silicon steel: Minimizes energy loss from eddy currents and is widely used for its high efficiency.
• Ferrite: Ideal for high-frequency applications due to its low electrical conductivity and high magnetic permeability.

Types of Cores

• Laminated core: Built from stacked thin layers to reduce energy loss, commonly found in power transformers.
• Toroidal core: Shaped like a doughnut for superior magnetic coupling, reduced losses, and lower electromagnetic interference—perfect for compact designs.
• Ferrite core: Best suited for high-frequency transformers because of its very low eddy current losses.

Windings

The primary winding takes in the input voltage, creating a magnetic field in the core. The secondary winding then converts this magnetic field back into electrical energy at the desired output voltage.

Common Winding Materials

• Copper: Offers high conductivity and low resistance, helping minimize energy loss.
• Aluminum: More affordable and lighter, often used where weight and cost are key considerations.

Winding Configuration

• Number of turns: The voltage change depends on the turns ratio between primary and secondary windings. More turns in the secondary than the primary will increase voltage; fewer will decrease it.
• Winding arrangement: Designed to achieve maximum magnetic coupling and optimal efficiency for the intended voltage requirements.

How Do Transformers Work?

A transformer transfers electrical energy between two or more circuits through electromagnetic induction. By using primary and secondary windings wrapped around a magnetic core, it can effectively raise or lower voltage levels as needed.

Electromagnetic Induction

Electromagnetic induction is the core principle behind transformer operation. The process works as follows:

1. Applying AC voltage: Alternating current is applied to the primary winding.
2. Creating a magnetic field: The AC flowing through the primary winding generates a changing magnetic field.
3. Producing magnetic flux in the core: This magnetic field induces a fluctuating magnetic flux within the core.
4. Inducing voltage in the secondary winding: As the magnetic flux changes, it induces an electromotive force (voltage) in the secondary winding—following Faraday’s Law of Induction.
5. Transforming voltage: The voltage induced in the secondary winding depends on the turns ratio between the windings, resulting in either stepped-up or stepped-down voltage.

Flux Linkage

Flux linkage describes how the magnetic flux in the core interacts with the windings.

• Magnetic path: The flux generated by the primary winding travels through the magnetic core.
• Connecting windings: As the flux moves through the core, it links the primary and secondary windings, creating a shared magnetic field.
• Efficiency of induction: Good flux linkage ensures the magnetic field from the primary induces the highest possible voltage in the secondary, reducing energy losses and improving power transfer efficiency.

By carefully designing both the core and windings for strong flux linkage, transformers can achieve high efficiency in voltage conversion—making them indispensable in applications from large-scale power transmission to everyday electronic devices.

Types of Electrical Transformers

Transformers come in different designs, each built for a specific role. Knowing the types and their functions helps you choose the right one—whether you need it for power distribution, measurement, or safety.

Power Transformers

Power transformers are essential for high-voltage transmission networks, enabling electricity to travel long distances efficiently. They operate at voltages typically above 33 kV and are built to handle very large power capacities.

Key Characteristics

• High power handling: Capable of managing huge amounts of power, making them vital for both transmission and large-scale distribution systems.
• Location: Commonly found in power plants and major substations, stepping voltage up for transmission or down for distribution.
• Efficiency: Optimized for high-load operation, reducing losses during long-distance power transport.

Distribution Transformers

Distribution transformers reduce voltage to levels safe for homes and businesses. As the final step in the power distribution chain, they ensure electricity is ready for everyday use.

Design Features

• Size and efficiency: Smaller and optimized for lower voltages (up to 33 kV) compared to power transformers.
• Placement: Often installed on utility poles or in ground-level substations close to consumers.
• Load adaptability: Designed to run efficiently under varying load conditions, even during low-demand periods.

Instrument Transformers

Instrument transformers include current transformers (CTs) and potential transformers (PTs), both used for measurement and protection in power systems.

Definitions and Uses

• Current transformers: Scale down high currents to a manageable level for measurement or protection, often used in substations for relays and metering.
• Potential transformers: Reduce high voltages to safe levels for instruments, allowing accurate monitoring and metering of high-voltage systems.

Autotransformers

Unlike standard transformers, autotransformers use a single winding that serves as both the primary and secondary.

Advantages and Limitations

• Cost and size: Smaller and more economical because they require less copper and core material.
• Limitation: They do not provide electrical isolation between input and output, making them unsuitable for applications where isolation is required.

Isolation Transformers

Isolation transformers separate two circuits electrically, improving safety and reducing interference.

Applications

• Safety: Commonly used in medical equipment to protect sensitive devices from surges and noise.
• Protection: Prevent interference in delicate electronic systems where electrical noise could cause malfunctions.

Comparison Table of Transformer Types

By knowing the differences between these transformer types, you can select the one that best matches your power requirements—ensuring maximum efficiency, dependable performance, and safe operation in your electrical systems.

Efficiency and Losses in Transformers

Transformer efficiency refers to how effectively a transformer converts its input power into output power, with as little loss as possible. It is expressed as the ratio of useful power output to total power input, usually shown as a percentage.

High efficiency is important not only for cutting operational costs but also for improving the overall performance of electrical systems.

Factors Affecting Transformer Efficiency

Transformer efficiency is influenced by several types of losses—primarily core losses, copper losses, and other stray losses. Reducing these losses is essential to optimize performance.

Core Losses

Core losses occur in the transformer’s magnetic core and are divided into two main types:

• Hysteresis losses: Caused by the repeated magnetization and demagnetization of the core material with each AC cycle. These depend on the magnetic properties of the core material and the AC frequency.
• Eddy current losses: Circulating currents induced in the conductive core material produce heat, wasting energy. These losses rise with the thickness of the core laminations and increase with the square of the frequency.

How to Minimize Core Losses

• Hysteresis losses: Use low-hysteresis materials, such as high-grade silicon steel.
• Eddy current losses: Use thin, laminated core sheets to shorten the path for induced currents.

Copper Losses

Also known as I²R losses, copper losses occur in the transformer windings due to their electrical resistance. As current flows through the windings, this resistance generates heat and wastes energy.

How to Minimize Copper Losses

• Use high-conductivity materials, such as copper, for windings.
• Increase the cross-sectional area of the winding conductors to lower resistance.

Stray Losses

Stray losses occur when leakage flux strays from the intended magnetic path and induces unwanted currents in nearby conductive parts of the transformer, such as the tank walls or structural supports. This results in additional heating and energy loss.

How to Minimize Stray Losses

• Use enhanced magnetic shielding to contain the flux within the desired path.
• Refine winding and core design to reduce leakage flux and improve magnetic coupling.

Types of Losses and How to Minimize Them

Cooling Methods for Managing Transformer Losses

To keep transformers running efficiently and avoid overheating, different cooling techniques are used:

• Oil Cooling: Large transformers are immersed in insulating oil, which absorbs heat from the core and windings and transfers it to external radiators or coolers. This method is highly effective for dissipating significant amounts of heat.
• Air Cooling: Smaller transformers typically use air cooling. Forced-air cooling employs fans to blow air over the transformer surfaces, improving heat dissipation.
• Water Cooling: Some high-capacity transformers use water cooling, where water circulates through heat exchangers to remove heat either from the transformer oil or directly from the core and windings.

By combining these cooling methods with effective loss reduction strategies, transformers maintain high efficiency, reduce energy waste, and enjoy longer operational lifespans. This ensures dependable performance in everything from power grids to industrial applications.

Transformer Maintenance and Testing

Proper maintenance and testing are essential to ensure transformers operate reliably and enjoy a long service life. Regular upkeep and modern diagnostic techniques help detect problems early, preventing costly breakdowns and extending equipment longevity.

Routine Maintenance Tasks

• Visual inspections: Regularly examine the transformer for physical damage, oil leaks, or signs of overheating.
• Oil analysis: Test the insulating oil for moisture, acidity, and dissolved gases to assess insulation health and identify potential faults.
• Cleaning: Remove dirt, dust, and debris from cooling fins and external surfaces to maintain effective heat dissipation.
• Tighten connections: Check and secure electrical connections to avoid loose contacts that could lead to overheating or failures.

Common Testing Methods

• Insulation Resistance Testing: Measures resistance between windings and ground to detect insulation deterioration or contamination. Low resistance can signal insulation issues.
• Transformer Turns Ratio (TTR) Testing: Confirms the ratio of primary to secondary windings aligns with design specs. Variations may indicate winding shorts or incorrect tap positions.
• Power Factor Testing: Evaluates insulation condition by measuring power factor (dissipation factor). Elevated values suggest insulation degradation.

Modern Monitoring Systems

Advanced monitoring solutions provide real-time data on transformer condition, enabling predictive maintenance and early fault detection.

These systems track key parameters such as temperature, moisture content, and dissolved gases in the insulating oil, helping predict failures before they occur. This proactive approach reduces downtime and lowers maintenance expenses by addressing issues promptly.

Signal Generators for Testing

Signal generators are essential tools for transformer testing, allowing technicians to apply precise, known signals and evaluate the transformer’s response. This helps confirm performance specs and uncover problems such as winding faults or incorrect voltage ratios.

To enhance your testing setup, consider using high-quality refurbished equipment from JMBom Technologies. JMBom’s refurbished signal generators and other test instruments deliver reliable accuracy at a lower cost, making precise transformer diagnostics more affordable.

By combining regular maintenance, advanced testing techniques, and modern monitoring solutions, you can ensure your transformers operate efficiently—extending their lifespan and optimizing performance.

Transformer Safety and Troubleshooting

Maintaining safety and effectively troubleshooting transformers are vital to prevent accidents and ensure reliable operation. Following proper safety procedures, recognizing common faults, and taking preventive steps help you manage transformer issues with confidence.

Essential Safety Protocols

• De-energize equipment: Always disconnect and fully discharge transformers before any maintenance or troubleshooting to avoid electric shock.
• Use protective gear: Wear appropriate PPE such as gloves, safety glasses, and arc-rated clothing.
• Follow lockout/tagout procedures: Implement lockout/tagout systems to make sure transformers cannot be energized accidentally during work.
• Maintain safe distances: Keep clear of energized components and respect safety clearances to reduce electrical hazard risks.

Common Issues and Faults

• Overheating: Often caused by excessive load or insufficient cooling, which can degrade insulation and damage the transformer.
• Insulation failure: May result from aging, moisture ingress, or contamination, potentially causing short circuits or arcing.
• Winding faults: Including open circuits, short circuits, or incorrect wiring, these issues affect voltage regulation and overall transformer performance.

Troubleshooting Guide

• Visual inspection: Look for physical damage, oil leaks, or discoloration on the transformer’s surface.
• Temperature check: Use infrared thermography or temperature sensors to find overheating or hot spots.
• Insulation resistance test: Measure insulation resistance to detect deterioration or contamination.
• Check connections: Inspect and tighten all electrical connections for security and proper setup.
• Test windings: Use a multimeter to measure winding resistance and check for open or short circuits.

Preventive Measures

• Regular maintenance: Schedule routine inspections and upkeep to catch problems early.
• Load management: Operate transformers within their rated capacity to avoid overheating and overload.
• Proper cooling: Ensure cooling systems like oil or air cooling are functioning correctly.
• Moisture control: Use desiccants or sealed enclosures to keep moisture away and protect insulation.

Using Multimeters for Diagnosis

Multimeters are indispensable for diagnosing transformer faults by providing precise measurements to identify:

• Open circuits: Detect breaks in windings or connections.
• Short circuits: Find unintended current paths causing faults.
• Incorrect winding connections: Confirm correct wiring and continuity.

For accurate, reliable diagnostics, consider premium refurbished multimeters from JMBom Technologies. JMBom’s refurbished instruments combine high performance and precision with significant cost savings, making them an excellent choice for transformer troubleshooting.

Optimize Your Transformer Analysis with JMBom’s Premium Refurbished Equipment

Transformers play a crucial role in managing voltage across a wide range of applications—from power distribution and industrial setups to renewable energy systems and specialized uses like electric vehicles.

Keeping transformers efficient, reliable, and long-lasting requires thorough maintenance, precise testing, and proactive troubleshooting. Challenges like overheating, insulation degradation, and winding faults can be tough to diagnose and fix—but with the right tools, these tasks become much simpler and more effective.

At JMBom Technologies, we know the hurdles engineers face when maintaining and analyzing transformers—whether it’s achieving accurate diagnostics, minimizing downtime, or controlling costs.

That’s why our premium refurbished equipment, including high-precision multimeters and signal generators, delivers the performance and accuracy you need—without the premium price tag.

Choosing JMBom’s refurbished instruments means getting top-quality testing capabilities at a fraction of the cost, making reliable and precise transformer diagnostics more accessible than ever.

Count on JMBom to equip you with the tools that empower you to maintain and optimize your transformers—helping your electrical systems perform at their best while keeping expenses in check.

Frequently Ask Questions

What Is a Transformer in Simple Terms?

A transformer is a device that transfers electrical energy from one alternating-current (AC) circuit to one or more others. It either raises (steps up) or lowers (steps down) the voltage while keeping the power consistent.

What Does a Transformer Actually Do?

A transformer is an electrical device that adjusts voltage levels to meet the requirements of different applications. Its main job is to either increase (step up) or decrease (step down) voltage while maintaining the same power output. Transformers work based on electromagnetic induction and mutual inductance.

What Is a Transformer Mainly Used For?

Transformers are primarily used to change AC voltage levels. Step-up transformers increase voltage, while step-down transformers reduce it. They can also provide galvanic isolation between circuits and connect stages in signal-processing systems.

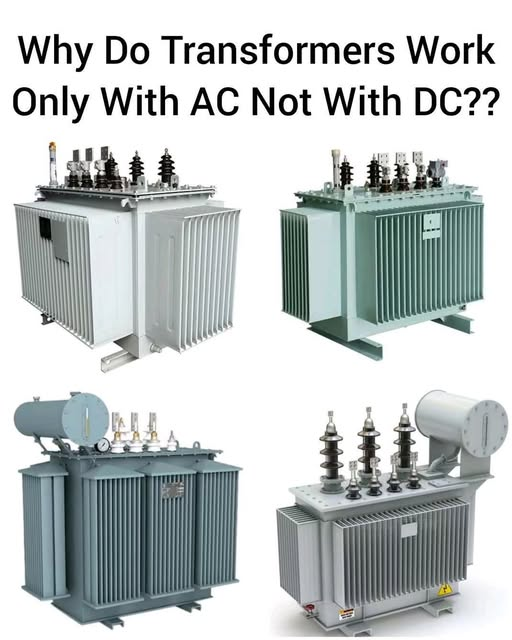

Do Transformers Work with AC or DC?

Transformers operate only on alternating current (AC). The current in the primary coil creates an electromagnet, and the constantly changing current produces a changing magnetic field within the iron core.

How Do Transformers Work for Beginners?

Transformers work on a simple principle: they receive electricity at one voltage, convert it to another voltage, and then supply power at this new voltage for a wide range of uses requiring electrical energy.

Should You Call 911 If a Transformer Blows?

Yes, in case of an electrical emergency, call 911 immediately. Be sure to provide the exact location when reporting the incident.

What Causes a Transformer to Fail?

Transformer failure usually results from damage to the insulation. This can occur naturally over time but may also be caused by excessive voltage, frequent fault currents, mechanical damage, or overloads that speed up insulation breakdown.

What Should You Never Do Around a Transformer?

Never touch or climb near a transformer. Homeowners should educate children about the dangers of transformers and make sure everyone stays at least 10 feet away from utility boxes or electrical poles.

How Are Transformers Used in a House?

Transformers in homes are often part of heating, ventilation, and air conditioning (HVAC) systems. They regulate voltage for thermostats and control panels, allowing smooth communication between the HVAC system and smart thermostats to maintain energy efficiency and comfort.

Where Are Transformers Used in Everyday Life?

Transformers have many uses, including power generation, transmission, distribution, lighting, audio equipment, and electronics. For example, power plants use transformers to increase the voltage of electricity before sending it to the power grid.

Related Articles

Parallel Resistor Calculator & A Practical Guide for Electrical Engineers

Guide to Network Analyzer

Network Analyzer vs. Spectrum Analyzer:Use & Specifications

How to Determine Capacitor Polarity

How to Test a Fuse Using a Multimeter

How to Check Current With a Multimeter

How to Operate a Voltage Tester

Electrical Measurements: Common Types, Tools, and Calculations

How to Check Resistance Using a Digital Multimeter

What is Resistance?
