There are many types of sensors on the market, each designed for specific applications. One such device is the flex sensor, also known as a bend sensor, which is used to detect the degree of bending or deflection. Typically, this sensor is attached to a surface, and its resistance changes as the surface is bent. Flex sensors are used in various applications, including Nintendo’s Power Glove, robotic whisker sensors, door monitoring systems, and even as key components in interactive stuffed animal toys that respond to movement.

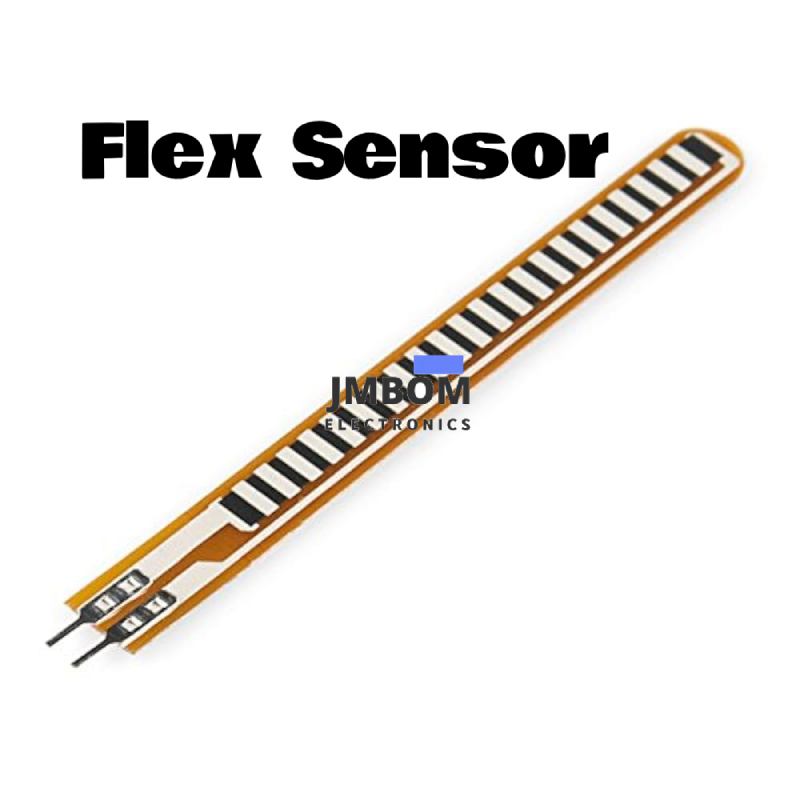

What Is a Flex Sensor?

A flex sensor is a type of sensor used to measure the degree of bending or flexing. It is typically made from materials like plastic and carbon. The sensor consists of a carbon-based conductive layer applied to a flexible plastic strip. When the strip is bent, the resistance of the sensor changes accordingly. Because of this behavior, it’s also commonly referred to as a bend sensor. Since the resistance varies in proportion to the amount of bending, the flex sensor can also function as a goniometer to measure angles of deflection.

Types of Flex Sensors

Flex sensors are mainly categorized into two types based on their length: the 2.2-inch flex sensor and the 4.5-inch flex sensor. While both types operate on the same working principle, they differ in size and resistance values.

Pin Descriptions

• Pin P1: Typically connected to the positive (+) terminal of the power supply.
• Pin P2: Typically connected to the ground (GND) of the power supply.

Where Can a Flex Sensor Be Used?

Flex sensors are useful in the following scenarios:

1. Detecting Movement or Position of an Object’s Surface Flex sensors can be used to determine whether a surface is flat or has been displaced. For example, they can be placed along the edge of a door or window to detect if it has been opened. As the door moves, the sensor bends, which causes a change in its electrical resistance. This change can then trigger an alert system or other automated response.
2. Measuring Bending, Flexing, or Angular Displacement Flex sensors are ideal for measuring bend angles or detecting the degree of flex in a device or component. The internal resistance of the sensor changes almost linearly with the bending angle. By attaching the sensor to a moving part, you can monitor the angle of flex based on changes in resistance, making it suitable for applications like robotic joints, wearable devices, or motion tracking systems.

How a Flex Sensor Works

A flex sensor operates based on the bending strip principle — its electrical resistance changes when the strip is bent. This change in resistance can be detected and measured using a microcontroller or similar device.

The sensor behaves much like a variable resistor. As it bends, the resistance varies depending on how much the surface is flexed. On a flat surface, the resistance remains at its baseline value. However, when bent at different angles, the resistance increases accordingly.

For example:

• At 0° (flat), the sensor maintains its normal resistance.
• At 45°, the resistance approximately doubles compared to the flat state.
• At 90°, the resistance increases roughly four times the original value.

In summary, the greater the bending angle, the higher the resistance — making flex sensors ideal for measuring angular displacement through resistance changes.

Specifications and Features

• Operating Voltage: 0V to 5V
• Low Voltage Operation: Capable of functioning at low voltages
• Power Rating: 1W peak, 0.5W continuous
• Operating Temperature Range: -45°C to +80°C
• Flat (Unbent) Resistance: 25 kΩ
• Resistance Tolerance: ±30%
• Bend Resistance Range: 45 kΩ to 125 kΩ, depending on the bending angle

Applications of Flex Sensors

Flex sensors are used in a wide range of industries and applications, including:

• Medical Devices – for monitoring joint or limb movement
• Computer Peripherals – such as gesture-based input devices
• Robotics – for detecting joint angles or movement
• Physical Therapy – to track motion and range of movement
• Virtual Motion & Gaming – for wearable controllers or motion sensing
• Musical Instruments – to control sound or effects through finger motion

Conclusion

In summary, a flex sensor is a device whose resistance changes in response to bending. As the sensor is flexed, its terminal resistance varies, making it ideal for detecting motion, angle changes, or surface displacement.

Frequently Asked Questions about Flex Sensors

What is a flex sensor used for?

A flex sensor, also known as a bend sensor, is used to measure how much an object bends or deflects. It is typically attached to a surface, and its resistance changes as the surface bends. This makes it ideal for motion tracking, angle measurement, and gesture detection.

What does a flex-fuel sensor do?

A flex-fuel sensor measures the ethanol content in the fuel before it is injected into the engine. To ensure real-time accuracy, it is usually installed as close to the injectors as possible.

What’s the difference between a force sensor and a flex sensor?

A force-sensitive resistor (FSR) measures the amount of pressure or force applied to a surface — for example, detecting how strongly parts of the hand press against an object. In contrast, a flex sensor measures the degree of bending, such as finger or joint movement.

What happens if the fuel sensor is faulty?

A malfunctioning fuel tank pressure (FTP) sensor can cause engine starting issues or stalling. This is because the engine control module (ECM) receives incorrect pressure data, which may lead to an overly rich or lean fuel mixture.

Can a flex sensor be cut or trimmed?

Yes, certain types of flex sensors, like FlexiForce sensors, can be trimmed to better fit your application or to create a proof-of-concept before customizing a sensor. However, trimming must be done carefully to avoid damaging the sensor's active area.

Is a flex sensor analog or digital?

Flex sensors are analog devices. As they bend, they produce a continuous range of resistance values. These analog signals typically need to be read by a microcontroller, such as an Arduino, through an analog input pin.

Can I build a sensor at home?

Yes, simple sensors like IR proximity sensors can be built at home. For example, an IR LED can emit infrared light, which is detected by a photodiode when reflected back. The photodiode converts this into an electrical signal.

Should a flex-fuel sensor be placed before or after the fuel filter?

For accurate readings, the flex-fuel sensor should be installed before the regulator or as close to the fuel return port as possible. This ensures it reads the fuel that actually enters the injectors.

What’s the main difference between a sensor and an actuator?

A sensor converts physical phenomena (like pressure, light, or motion) into electrical signals for a system to process. An actuator, on the other hand, converts electrical signals into physical actions, such as movement, sound, or heat.

Is it safe to drive with a faulty fuel sensor?

While it's technically possible to drive with a failing fuel pressure sensor, it's not recommended. The engine may run too rich or too lean, leading to poor performance and potential long-term damage. This should only be a temporary measure in an emergency.
