In modern vehicles, the throttle system plays a key role in managing and regulating the flow of fluids into the engine. By adjusting the air-fuel mixture, the throttle helps control the engine’s power output. Depending on the type of machine, the throttle is referred to differently—for example, it's called the accelerator pedal in cars, a thrust lever in aircraft, and a regulator in steam engines.

Today’s vehicles mostly use electronic throttle control systems, often referred to as “drive-by-wire.” In these systems, traditional mechanical linkages have been replaced by sensors and electronic controls. A central computer, known as the Engine Control Unit (ECU), collects data from various sensors to manage engine performance. One important sensor in this setup is the Throttle Position Sensor (TPS), which monitors the position of the throttle and sends this information to the ECU for precise engine control.

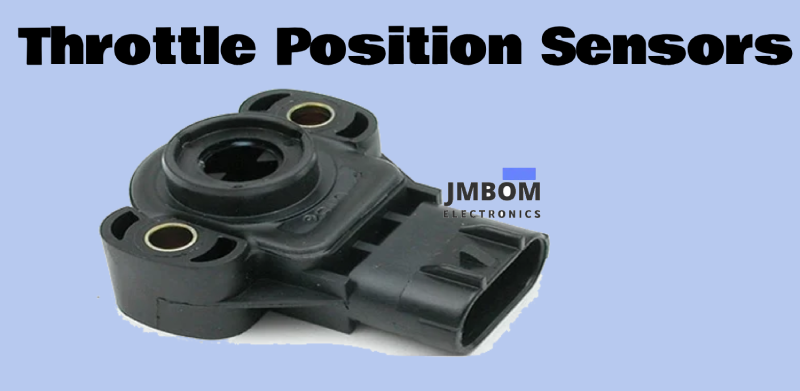

What Is a Throttle Position Sensor?

In vehicles, engine speed is regulated by adjusting the amount of air and fuel delivered to the engine. This is managed through the throttle system. In older vehicles, the accelerator pedal was connected to the throttle body by a mechanical linkage. Pressing the pedal would physically open a butterfly valve in the throttle body, allowing more air—and therefore more fuel—to enter the engine. This increase in air-fuel mixture would result in greater engine power and speed.

In modern vehicles, this function is handled by a Throttle Position Sensor (TPS). This sensor monitors the exact angle or position of the throttle valve. Essentially, it acts like a potentiometer, offering varying levels of electrical resistance based on how far the throttle valve is opened. This data is then sent to the engine control unit (ECU) to help regulate engine performance and responsiveness.

How a Throttle Position Sensor Works

The Throttle Position Sensor (TPS) is typically mounted on the throttle body, where it detects the angle of the throttle or butterfly valve and sends this data to the Engine Control Unit (ECU). It tracks how far the accelerator pedal is pressed and generates a corresponding electrical signal that reflects the valve’s position. Since the valve controls how much air enters the engine, a wider opening means more air is allowed in—and therefore more power—while a smaller opening restricts airflow and reduces engine speed.

The sensor's output, combined with data from other sensors, is used by the ECU to accurately determine how much fuel should be injected into the engine to maintain optimal performance and efficiency.

The TPS usually functions as a three-wire potentiometer:

• The first wire supplies a 5V reference voltage to the sensor’s resistive element.
• The second wire is connected to ground.
• The third wire is attached to the wiper (moving contact), which sends a variable voltage signal to the ECU depending on the position of the throttle.

Based on design, throttle position sensors can be categorized into three main types:

1. Closed Throttle Position Sensors – equipped with built-in end switches that detect fully closed or fully open throttle positions.
2. Potentiometer-Type Sensors – use a resistive element to provide continuous position feedback.
3. Hybrid Sensors – combine features of both the above types for improved precision and functionality.

Best practice

When it comes to throttle position sensors, there are a few best practices you can follow:

1. Regular maintenance: The throttle position sensor is a critical component of your engine's fuel management system, and regular maintenance is essential for optimal performance. It's a good idea to check the TPS periodically and clean it if necessary.
2. Proper installation: Ensure that the TPS is installed correctly, with the right orientation and alignment. Improper installation can cause the sensor to malfunction or fail prematurely.
3. Use high-quality parts: When replacing a TPS, use high-quality OEM or aftermarket parts. Cheaper, low-quality parts may not last as long or provide the same level of accuracy.
4. Address any warning signs: If you notice any warning signs of a failing TPS, such as poor engine performance or a check engine light, address the issue promptly. A malfunctioning TPS can cause serious engine damage if left unaddressed.

By following these guidelines, you can ensure your throttle position sensor continues to deliver reliable performance and contributes to the overall health of your vehicle's engine.

Common Problems Caused by a Faulty Throttle Position Sensor

A malfunctioning Throttle Position Sensor (TPS) can lead to a range of performance issues in your vehicle. Some of the most common symptoms include:

1. Unstable or Erratic Idle A failing TPS can send incorrect throttle position signals to the ECU, causing the engine to idle inconsistently or even stall unexpectedly.
2. Hesitation or Jerking During Acceleration When the TPS doesn’t respond accurately to throttle input, it can cause delays or surges in acceleration, making the vehicle feel sluggish or jumpy.
3. Reduced Fuel Efficiency Incorrect throttle data can lead to improper fuel-air mixture calculations, resulting in excessive fuel consumption and reduced miles per gallon.
4. Illuminated Check Engine Light A faulty TPS will often trigger the check engine light. Diagnostic trouble codes related to the TPS can be retrieved using an OBD-II scanner.

Troubleshooting a Faulty Throttle Position Sensor (TPS)

If you suspect your Throttle Position Sensor is malfunctioning, here are some key steps to help you diagnose and resolve the issue:

1. Inspect the Wiring and Connections Start by checking the wiring between the TPS and the Engine Control Unit (ECU). Look for loose connections, corrosion, or damaged wires. A poor electrical connection can result in inaccurate sensor readings or signal loss.
2. Test the Sensor’s Voltage Output Use a multimeter to measure the voltage coming from the TPS. As you gradually open the throttle, the voltage should increase smoothly and steadily. Sudden drops, spikes, or flat readings can indicate a faulty sensor.
3. Examine the Sensor Physically Look for visible signs of wear, damage, or contamination on the sensor itself. If the housing is cracked or the internals appear worn out, replacing the sensor is likely necessary.
4. Clean the Throttle Body A buildup of dirt or carbon deposits on the throttle body can interfere with throttle movement and cause the TPS to give erratic readings. Clean the throttle body thoroughly and check if the sensor’s performance improves.
5. Replace the TPS if Necessary If you've ruled out other issues and the sensor still fails to function correctly, replacement may be the only option. Be sure to use a high-quality replacement TPS from a reputable brand to ensure reliable performance and compatibility with your vehicle.

Top Brands for Throttle Position Sensors

When it comes to replacing a Throttle Position Sensor (TPS), choosing a reputable brand ensures better reliability, compatibility, and performance. Some of the most trusted and well-regarded TPS brands in the automotive industry include:

• ACDelco – Known for OEM-quality parts, especially for GM vehicles.
• Bosch – A leading global supplier of automotive electronics, offering high-performance sensors.
• Denso – Trusted for precision and quality, especially in Japanese vehicles.
• Standard Motor Products – Offers a wide range of aftermarket sensors with good durability.
• VDO – Known for precision components in both OEM and aftermarket sectors.
• Delphi – Offers advanced sensor technologies with strong compatibility across many makes.
• Walker Products – Reliable and cost-effective aftermarket option.
• Spectra Premium – Provides good value and reliable performance.
• Motorcraft – The go-to brand for Ford vehicles, ensuring exact fit and function.
• Airtex – Offers a wide selection of TPS units for various vehicle models.

What to Consider When Choosing a Brand:

• Compatibility with your specific vehicle’s make, model, and engine type
• Build quality and long-term reliability
• Warranty coverage and support
• Customer reviews and mechanic recommendations

Selecting a quality TPS from a trusted brand can help ensure accurate throttle response and smooth engine performance.

Types of Throttle Position Sensors

Throttle Position Sensors (TPS) come in two primary types: potentiometer-based and Hall effect-based. Both serve the same purpose—measuring the position of the throttle valve—but they use different technologies to generate the signal.

1. Potentiometer-Based TPS This type uses a variable resistor (potentiometer) that is mechanically linked to the throttle shaft. As the throttle opens or closes, the resistance across the potentiometer changes. This change produces a varying voltage signal that is sent to the Engine Control Unit (ECU). The ECU interprets this signal to determine the throttle position and adjusts the fuel injection accordingly. These are the most commonly used TPS types in vehicles due to their simplicity and cost-effectiveness.
2. Hall Effect-Based TPS This sensor relies on magnetic sensing technology. A small magnet is attached to the throttle shaft, and as the shaft rotates, it moves past a Hall effect sensor. The sensor detects changes in the magnetic field and generates a corresponding voltage signal. The ECU uses this signal to determine the exact position of the throttle and make real-time adjustments to fuel delivery. Hall effect sensors are typically found in higher-end or performance-oriented vehicles due to their precision and durability, as they have no physical contact and thus less wear over time.

Applications of the Throttle Position Sensor

The Throttle Position Sensor (TPS) provides the Engine Control Unit (ECU) with real-time data on the position of the throttle (butterfly) valve. It helps the ECU detect critical operating states such as:

1. Idle Position – when the throttle is nearly closed. In this state, the sensor typically outputs a voltage below 0.7V.
2. Wide Open Throttle (WOT) – when the throttle is fully open, allowing maximum airflow into the engine. The sensor usually outputs around 4.5V in this condition.
3. Partial Load or Intermediate Position – any position between idle and wide open, where the sensor output varies proportionally with the throttle angle.

If the TPS becomes faulty or fails, the ECU can no longer accurately determine the throttle’s position. This can cause performance issues such as engine stalling, poor acceleration, rough idling, or sudden surges. In most modern vehicles, a failing TPS will trigger the Check Engine light as a warning.

Frequently Asked Questions About Throttle Position Sensors

Will a car run with a bad throttle position sensor?

Yes, a car can run with a faulty Throttle Position Sensor (TPS), but it may not run well. A defective TPS can send incorrect signals to the Engine Control Unit (ECU), causing the engine to stall, hesitate, or idle roughly. Issues like corrosion or damaged solder joints—especially those affected by vibration or heat—can lead to these problems.

What happens if I unplug the throttle position sensor?

Unplugging the TPS cuts off vital information that the Powertrain Control Module (PCM) or ECU needs to properly manage the air-fuel mixture. Without this input, the engine may experience performance issues such as rough idling, poor acceleration, or even stalling.

Can you drive without a throttle position sensor?

Technically, yes—but it’s not recommended. Without the TPS, the ECU cannot accurately determine throttle position, leading to poor engine performance including hesitation, surging, unstable idle, or stalling. In some cases, the car may go into a “limp mode” to prevent damage.

Will a bad throttle position sensor trigger a diagnostic trouble code (DTC)?

Yes. Most vehicles equipped with OBD-II (1996 and newer) will log a trouble code when the TPS is malfunctioning. Older OBD-I systems may also detect issues. You can retrieve these codes using an OBD scanner or code reader.

How many throttle position sensors does a car have?

Vehicles with electronic throttle control systems (also called “throttle-by-wire”) usually have two throttle position sensors. This dual-sensor setup provides redundancy, ensuring accurate data and improved safety in case one sensor fails.

Is replacing a throttle body a difficult job?

Yes, replacing a throttle body is a complex mechanical task. It involves precise handling and sometimes recalibration of electronic components. It's recommended to have the job done by a professional mechanic unless you have advanced mechanical experience.

Can I drive with a bad throttle body?

It’s not advisable. A failing throttle body can lead to symptoms like unstable idle, sluggish acceleration, increased fuel consumption, and engine misfires. Continuing to drive with these symptoms can worsen performance and potentially cause further damage.
