Humans rely on five senses to interact with the world around them. Similarly, machines also require sensing components to perceive their environment. This need led to the development of sensors. The first artificial sensor, the thermostat, was created in 1883. By the 1940s, infrared sensors had emerged.

Today, we have a wide variety of sensors capable of detecting motion, light, humidity, temperature, smoke, and more. These sensors come in both analog and digital forms. Their development has significantly transformed the cost and size of modern control systems.

Among these is the touch sensor—a device specifically designed to respond to physical contact.

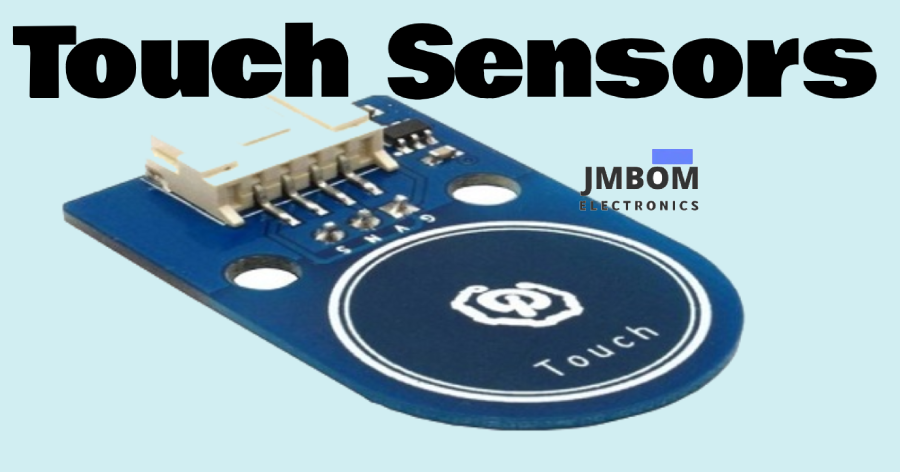

Touch Sensors

What Is a Touch Sensor?

A touch sensor is an electronic device that detects physical contact. When touched, it functions like a switch, turning a device or function on or off. Touch sensors are commonly used in applications such as lamp controls, mobile phone touchscreens, and other interactive systems. They provide a smooth, user-friendly interface.

Touch sensors are also referred to as tactile sensors. They are cost-effective, easy to manufacture, and suitable for large-scale production. As technology continues to evolve, touch sensors are increasingly replacing traditional mechanical switches.

There are two main types of touch sensors based on how they operate:

• Capacitive Touch Sensors: These detect changes in capacitance when touched. They are commonly found in smartphones and tablets. Known for being durable, sleek, and affordable, capacitive sensors offer a modern look and reliable performance.
• Resistive Touch Sensors: Unlike capacitive sensors, resistive ones don’t rely on electrical properties. Instead, they respond to pressure applied to the surface, making them ideal for applications that require input from any object, such as a gloved finger or stylus.

How Touch Sensors Work

Touch sensors operate much like a switch. When touched, pressed, or subjected to force, they activate and behave like a closed switch. Once the touch or pressure is removed, they return to an open switch state.

A capacitive touch sensor consists of two parallel conductive plates separated by an insulating layer. These plates form a capacitor with a baseline capacitance, denoted as C₀.

When a finger touches the sensor, it acts as a conductive object, causing a slight but measurable increase in the capacitance.

A capacitance measurement circuit continuously monitors the sensor’s capacitance (C₀). When it detects a change due to touch, it sends out a signal indicating activation.

On the other hand, resistive touch sensors detect touch by measuring the pressure applied to their surface. They are made of two conductive layers coated with indium tin oxide (a highly conductive material), separated by a very thin gap. When pressed, these layers come into contact, registering the touch.

A steady voltage is applied across the surface of the conductive films. When pressure is applied to the top film, it makes contact with the bottom film. This contact causes a change in voltage, which is detected by a controller circuit, triggering a signal that registers the touch.

Applications

Capacitive sensors are widely available and very affordable. They are commonly found in devices such as smartphones, iPods, automotive systems, and small household appliances. Besides touch detection, they can also measure parameters like pressure and distance. However, one limitation of capacitive sensors is their tendency to occasionally register false touches.

Resistive touch sensors require a certain amount of pressure to activate, so they are not suitable for detecting light or gentle touches. Because of this, they are often used in applications like musical instruments, keypads, and touchpads—where a firmer press is expected.

Examples

Popular touch sensor models available on the market include the TTP22301, TTP229, and others.

Which type of touch sensor do you find most suitable for your specific application?

Frequently Ask Questions

What is a touch sensor?

A touch sensor is an electronic component that responds to physical contact. Also known as a tactile sensor, it can detect touch, pressure, or force. Touch sensors typically operate using either capacitive or resistive sensing technology.

What are the three types of touch and pressure receptors?

According to biological classification, the three main types of touch and pressure receptors are:

• Merkel discs – respond to light touch
• Meissner’s corpuscles – detect light touch and low-frequency vibrations
• Pacinian corpuscles – respond to deep pressure and high-frequency vibrations

What are the types of throttle position sensors (TPS)?

Throttle Position Sensors measure the angle of the throttle and send this data to the vehicle’s ECU. The two main types are:

• Potentiometer-based TPS – uses a variable resistor linked to the throttle shaft
• Hall Effect-based TPS – uses magnetic fields to detect throttle position, offering longer durability

What are the disadvantages of touch sensors?

Resistive touch sensors have a few limitations:

• They are more susceptible to scratches
• They require greater pressure to register input, making them less sensitive than capacitive sensors However, this can be beneficial for certain applications that require deliberate activation.

What can you do with a touch sensor?

Touch sensors act like electronic switches that respond to human contact. They are widely used in devices like:

• Lamp controls
• Smartphone and tablet screens
• Household appliances They provide an intuitive, user-friendly interface that enhances device interaction.

What is the difference between tactile and touch sensors?

In most contexts, tactile sensor and touch sensor are used interchangeably. However, technically:

• A touch sensor usually detects a single point of contact.
• A tactile sensor may involve arrays or matrices that detect pressure at multiple points, offering more detailed spatial input.

How do I know if my TPS sensor is faulty?

A failing Throttle Position Sensor (TPS) can cause symptoms such as:

• Check engine light turning on
• Poor engine or transmission performance
• The vehicle entering limp mode Diagnosing it typically involves scanning for error codes and testing the sensor with a multimeter.

How much does a TPS sensor cost?

The cost of a Throttle Position Sensor usually ranges from $40 and up, depending on the vehicle's make, model, and engine type. Major brands like Duralast, Dorman, and Santech offer compatible replacements.

What is an example of a touch sensor in use?

An example would be a touch-sensitive button that activates when a user places their finger on it. These are used in various environments such as:

• Public transport (e.g., door open buttons)
• Industrial machinery (start/stop functions)
• Consumer electronics and smart home devices

Is a touch sensor analog or digital?

Most touch sensors are digital devices. They detect when contact occurs and output a high (ON) or low (OFF) signal. Some advanced designs may provide analog output, especially in force-sensing applications.

What is the difference between haptic and touch?

• Touch refers to the actual physical interaction detected by a sensor.
• Haptic feedback refers to the system’s response—such as vibrations or simulated textures—giving users the sensation of touch through mechanical or electronic means.
