Thermal imaging is an advanced, non-contact method that uses infrared technology to detect the heat released by objects. It works by transforming infrared energy—normally invisible to the human eye—into a visible image. Since every object above absolute zero gives off infrared (thermal) radiation, the differences in these heat emissions are what make thermal imaging possible.

In industrial environments, thermal imaging plays a vital role in preventive maintenance programs. It allows technicians to spot unusual heat signatures—often linked to overloads or equipment about to fail—helping boost both safety and efficiency.

Thermal imaging is a versatile and proactive tool widely adopted across many industries. By highlighting thermal irregularities, it enables early problem detection, improves safety, enhances performance, and reduces operational costs.

What is a Thermal Image?

A thermal image, also called a thermogram, is the visual result generated by thermal imaging technology. These images are taken with a specialized device, commonly known as a thermal camera or infrared camera. Unlike a regular photograph that records visible light reflected from objects, a thermal image shows the levels of infrared radiation emitted by them.

To make interpretation easier, thermal images use a color scale where each color corresponds to a specific temperature range. For example, cooler areas are often shown in shades of blue, while hotter spots appear in shades of red. This creates a detailed temperature map of the scanned area, making it easier to identify hotspots and potential issues that may require closer examination.

What Does a Thermal Imaging Device Detect?

A thermal imaging device—often called a thermal imager or infrared imager—detects the infrared radiation (heat) emitted by objects. Using this information, it generates a thermal profile or heat map of the scanned area.

Thermal imagers can be used to detect:

• Overheating components and circuit overloads in electrical or mechanical systems.
• Heat loss from poor insulation, air leaks in HVAC systems, and hidden water leaks in buildings.
• Signs of pests or rodents in concealed spaces, as well as intruders in security monitoring.
• Human or animal presence in search and rescue operations, and hotspots during wildfire management.
• Structural flaws in construction and engineering projects.
• Health concerns in medical and veterinary fields, along with thermal patterns in geological and environmental research.

Industrial Inspections

In industry, thermal cameras are indispensable for spotting overheated parts, insulation breakdowns, and other hidden faults. They can reveal hotspots in electrical systems that may lead to overheating or fire hazards.

Building Maintenance

In building management, thermal imaging devices help identify heat loss from poor insulation or air leakage, offering opportunities to improve energy efficiency. They are also valuable for locating hidden water leaks inside walls or beneath floors.

Security

For security applications, thermal cameras detect intruders by capturing their body heat—even in darkness or harsh weather.

In Summary

Thermal imaging devices make heat patterns visible, allowing for early detection of issues ranging from equipment malfunctions to safety threats. This makes them an essential tool for preventive maintenance, troubleshooting, and efficient resource management.

Note: Thermal imagers differ from infrared thermometers, though brands like JMBom offer solutions that bridge the gap between the two.

How Does Thermal Imaging Work? (Quick Explanation)

Thermal imaging is based on a simple principle: every object gives off infrared energy depending on its temperature. Although invisible to the human eye, this energy can be detected and turned into a visible image with a thermal imaging system.

Here’s how it works step by step:

1. A thermal camera, fitted with an infrared detector, picks up the infrared radiation emitted by objects in its view.
2. The camera’s optics direct this energy onto a sensor array (detector chip) made up of thousands of pixels.
3. The detector captures the data, and the built-in software processes it into an image—called a thermal image or thermogram—that displays temperature differences.
4. Each temperature value is mapped to a color. Warmer regions usually appear in shades of red, while cooler areas show up as blue.
5. The resulting color-coded image is displayed on the camera screen.
6. Advanced thermal cameras from brands like JMBom also let you edit, save, transfer, and analyze your thermal images.

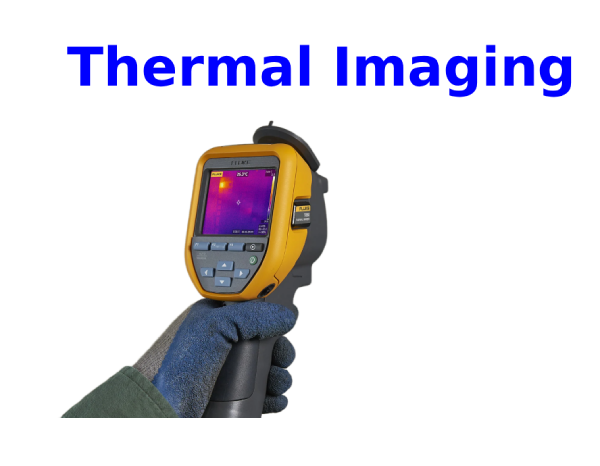

What is an Infrared Thermal Imaging Camera?

An infrared thermal imaging camera—often called a thermal or infrared camera—is a device that forms an image based on infrared radiation.

Unlike standard cameras that capture visible light, thermal cameras operate in the long-wavelength infrared spectrum (up to about 14,000 nanometers).

They detect the heat released by objects and convert it into an electronic signal. The system then processes this signal into a thermal image shown on a display, often with the ability to calculate temperature directly.

Thanks to these features, thermal cameras are widely used for tasks like diagnosing electrical faults, spotting insulation gaps in buildings, or identifying overheating machinery. Handheld thermal cameras are the most common, but fixed infrared scanners are also available for continuous monitoring.

How Infrared Cameras Work (Detailed Explanation)

All objects emit infrared radiation, often referred to as a heat signature. An infrared camera, or thermal imager, detects and measures this radiation, then converts the data into an electronic image that displays the apparent surface temperature of the object.

Inside the camera, an optical system directs the infrared energy onto a specialized detector chip (sensor array) made up of thousands of pixels arranged in a grid.

Each pixel responds to the infrared energy it receives and generates an electronic signal. The processor then applies mathematical calculations to these signals, producing a color-coded temperature map. Each temperature is assigned a specific color, creating a thermal image that is stored in memory and displayed on the camera screen.

Many infrared cameras are also equipped with a visible light camera that captures a standard digital photo alongside the thermal image. Combining these images makes it easier to link temperature variations to the actual equipment or location being inspected.

JMBom’s exclusive IR-Fusion® technology takes this a step further by merging a visible light image with the infrared image on a pixel-by-pixel basis. Users can adjust the blend of visible and infrared data to highlight thermal issues more clearly or pinpoint them within the visible context. This is especially valuable in applications such as building diagnostics or moisture detection.

Modern infrared cameras often include additional advanced features, such as automated functions, voice annotations, enhanced resolution, video recording and streaming, and integrated analysis and reporting tools. These capabilities make them versatile instruments for both troubleshooting and professional inspections.

Types of Thermal Imagers

Thermal imagers are generally divided into two categories: cooled and uncooled.

• Cooled Thermal Imagers These are high-performance systems housed in a vacuum-sealed case and cryogenically cooled. The cooling process greatly increases their sensitivity, enabling them to detect extremely small temperature differences—as little as 0.02°C. Because of their cost and complexity, cooled imagers are mostly used in specialized fields such as scientific research, aerospace, and military applications.
• Uncooled Thermal Imagers Uncooled imagers operate at normal ambient temperatures, making them far more affordable and practical for regular use. They can typically detect temperature differences down to about 0.2°C and are rugged enough for everyday tasks. From industrial equipment monitoring to building inspections and security surveillance, uncooled thermal imagers are the most widely used option.

What is Thermal Imaging Used For?

Thermal imaging is a technology that converts heat (thermal energy) into a visible image, allowing you to analyze the temperature profile of an object or scene. With the help of a thermal or infrared camera, it creates a heat map that highlights temperature variations across the area being inspected.

Key Applications of Thermal Imaging

• Industrial Maintenance In industry, thermal cameras are widely used for preventive maintenance. By spotting overheating components in machinery or electrical systems, they help avoid costly failures and improve workplace safety.
• Building Inspections In construction and property management, thermal imaging is used to find heat loss, poor insulation, air leaks, and hidden water damage. This makes it an essential tool for energy audits and building diagnostics.
• Medical Use In healthcare, thermal imaging can reveal subtle changes in body temperature, supporting early detection of certain health conditions, including breast cancer and circulatory issues.
• Security & Surveillance Thermal imagers detect heat signatures, making it possible to see people or animals even in darkness, fog, or challenging weather conditions—ideal for security, law enforcement, and search-and-rescue missions.

Thermal imaging is a versatile technology, serving industries, medicine, and security alike.

What is Thermography? Thermal Energy, Emissivity, Passive vs. Active

Thermography, closely related to thermal imaging, is a method that uses infrared technology to detect and display temperature differences. It works on the principle that every object emits thermal energy, which can be captured and shown as a thermal image.

• Thermal Energy Thermal energy is the infrared radiation objects release according to their temperature. The amount emitted depends on the object’s emissivity, which is influenced by the material’s surface and properties.
• Emissivity Emissivity describes how effectively a material emits thermal radiation. Materials with high emissivity (like matte surfaces) give off more infrared energy, while those with low emissivity (like shiny metals) emit less, which affects the accuracy of thermal measurements.
• Passive vs. Active Thermography Passive Thermography: In this approach, the naturally emitted thermal energy of an object is observed. It’s widely used in applications such as building inspections, electrical monitoring, and security surveillance. Active Thermography: Here, an external heat source is applied to the object. By studying how the material responds, inspectors can uncover subsurface defects or structural issues, making this method especially useful in research, aerospace, and material testing.

Choosing the Best Thermal Camera or Thermal Imager

The right thermal camera depends on your specific needs and how you plan to use it. When comparing options, keep these factors in mind:

• Resolution Higher resolution delivers sharper, more detailed images. A high-resolution thermal camera can pick up small temperature differences, making it ideal for precise inspections and demanding applications.
• Thermal Sensitivity Sensitivity refers to how well a camera can detect subtle temperature changes. If you need to capture fine thermal variations, look for a model with high sensitivity.
• Field of View (FOV) The FOV determines how much of an area the camera can capture in one shot. A wide FOV is best for scanning large spaces quickly, while a narrow FOV works better for focusing on smaller targets.
• Features & Functionality Consider additional capabilities that may enhance usability, such as video recording, multi-image capture, wireless connectivity, or data sharing with other devices.

By weighing these key factors, you’ll be able to select the thermal camera or infrared imager that best fits your application—whether for industrial maintenance, building inspections, research, or security. The right tool not only improves accuracy but also boosts efficiency and safety.

Frequently Ask Questions

What is Thermal Imaging in Simple Terms?

Thermal imaging is a technology that turns the heat emitted by objects—which is invisible to the naked eye—into visible images for analysis. Instead of using regular light, it relies on long-wave infrared radiation to show temperature differences.

What’s the Difference Between Infrared and Thermal Imaging?

Active infrared (IR) systems use short-wavelength IR light to illuminate a scene. Some of this light reflects back to a camera, which processes it into an image. Thermal imaging, however, uses mid- or long-wavelength IR and is passive—it detects heat differences naturally emitted by objects, without needing a light source.

Is Thermography Covered by Insurance?

Standard health insurance plans usually do not cover thermograms. However, you can often use funds from health savings accounts (HSAs) or health sharing plans to pay for the service.

Is Thermal Imaging Better Than Night Vision?

For activities like hunting or sport shooting, thermal imaging is often preferred over night vision because it detects the heat of a target, rather than relying on faint ambient light.

What’s the Difference Between Thermal Imaging and MRI?

X-rays, CT scans, ultrasound, and MRI scans all focus on anatomy, measuring the structure of the body. Thermography, in contrast, measures physiological changes, such as variations in heat patterns. Some people mistakenly think mammograms and thermograms are direct competitors, but they serve different purposes.
