Ever wondered how to determine the amount of current that flows through a circuit when voltage is applied? Or how increasing resistance changes how a system performs?

These aren't just academic questions—they're key to designing, troubleshooting, and fine-tuning any electrical system.

The answer is Ohm’s Law, a core concept in electrical engineering.

Whether you're managing power distribution, designing circuits, or testing components, a solid understanding of Ohm’s Law helps you accurately predict and control how electricity behaves.

What Is Ohm’s Law?

Ohm’s Law is a core concept in electronics and electrical engineering. It describes how voltage, current, and resistance are related in an electrical circuit.

Whether you’re a technician or an engineer, mastering Ohm’s Law is essential for tasks like circuit analysis, calibration, and troubleshooting.

Who Was Georg Ohm?

Ohm’s Law is named after Georg Simon Ohm, a German physicist who published his groundbreaking work in 1827. Through his experiments, he discovered that the current flowing through a conductor is directly proportional to the voltage applied and inversely proportional to the resistance.

His work laid the foundation for understanding how these key electrical properties interact in a circuit.

Key Electrical Elements Explained

Here’s a quick look at the three main components of Ohm’s Law and what they do in a circuit:

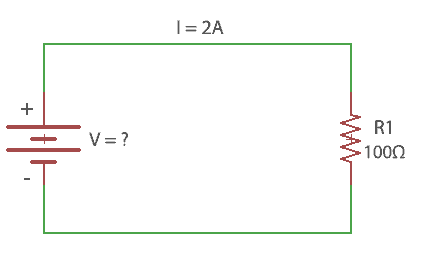

How to Use Ohm’s Law

You can rearrange Ohm’s Law based on what information you have:

• To calculate current: I = V ÷ R
• To calculate resistance: R = V ÷ I
• To calculate voltage: V = I × R

These formulas are your go-to tools for designing, testing, or troubleshooting electrical circuits.

Key Takeaway

Ohm’s Law explains how voltage, current, and resistance are connected. It’s a vital tool for analyzing, designing, and troubleshooting circuits. By applying this principle, you can anticipate how electrical systems will behave and keep them running at peak performance.

Understanding Ohm’s Law

Ohm’s Law describes a simple, linear relationship between voltage (V), current (I), and resistance (R) in an electrical circuit.

Introduced by German physicist Georg Simon Ohm in 1827, the law states that the current through a conductor increases with higher voltage and decreases with greater resistance. In formula form, it looks like this:

V = I × R

Where:

• V is the voltage, measured in volts (V)
• I is the current, measured in amperes (A)
• R is the resistance, measured in ohms (Ω)

This means that if resistance stays the same and you raise the voltage, the current will increase. On the flip side, if you raise the resistance while keeping the voltage constant, the current will go down.

Practical Uses of Ohm’s Law

Ohm’s Law isn’t just a classroom concept—it’s a practical tool that electrical engineers and designers rely on every day.

Whether you're building a new circuit, fixing a faulty one, or choosing the right components, this foundational law helps guide smart, effective decisions.

1. Circuit Analysis

Knowing how voltage, current, and resistance relate helps you break down and understand both simple and complex circuits. You can:

• Calculate unknowns: If you have any two of the three values—voltage, current, or resistance—you can easily find the third.
• Check circuit performance: Comparing measured values with calculated ones helps confirm if a circuit is working as expected.
• Estimate power usage: With the formula P = V × I, you can figure out how much power a device uses or supplies.

2. Choosing the Right Components

Proper component selection is key for reliability, safety, and performance. Ohm’s Law helps you:

• Pick the right resistor values: When you need to reduce voltage to protect delicate parts, you can calculate exactly how much resistance is needed.
• Determine power ratings: Knowing the voltage and current helps you choose components that can safely handle the power load.
• Avoid overheating and damage: Excessive voltage or current can destroy components. Ohm’s Law helps ensure you stay within safe limits.

3. Troubleshooting and Finding Faults

Ohm’s Law is a go-to method when something isn’t working right in a circuit. Measuring voltage and current can uncover:

• Short circuits: If current is too high, it could mean resistance has dropped due to a short.
• Open circuits: If voltage is present but no current flows, there might be a broken wire or bad connection.
• Component wear and tear: Over time, resistors and other parts can drift out of spec. Measuring resistance helps spot failing components.

4. Power Distribution and Load Balancing

In power systems, Ohm’s Law helps ensure safe, efficient operation without overloading anything. By calculating current flow, you can:

• Design balanced power systems that distribute load evenly
• Select the right wire sizes to carry current safely without excess voltage drop
• Improve energy efficiency in both industrial and consumer applications

5. Testing and Measurement

When using tools like multimeters or oscilloscopes, Ohm’s Law helps connect theory with real-world performance. It allows you to:

• Verify resistance values on live circuits
• Track changes in electrical behavior under different conditions
• Confirm your calculations with actual measured results

By applying Ohm’s Law in these areas, you can design more reliable circuits, solve problems faster, and build safer, more efficient electrical systems.

Ohm’s Law in Series and Parallel Circuits

To fully apply Ohm’s Law, it’s important to understand how it works in different circuit configurations—specifically, series and parallel circuits.

Series Circuits

In a series circuit, all components are connected one after another along a single path. This means the same current flows through every part of the circuit.

The total resistance in a series circuit is simply the sum of all individual resistances:

Rₜₒₜₐₗ = R₁ + R₂ + R₃ + ... + Rₙ

You can use Ohm’s Law to calculate the voltage drop across each component. Add up all these drops, and you’ll get the total voltage applied to the circuit.

Parallel Circuits

In a parallel circuit, components are connected across the same two points, creating multiple paths for current to flow.

The total resistance in a parallel setup is found using the reciprocal formula:

1 / Rₜₒₜₐₗ = 1 / R₁ + 1 / R₂ + 1 / R₃ + ... + 1 / Rₙ

In this arrangement, the voltage across each branch remains the same, but the current can vary across each path depending on the resistance.

Tools for Testing Ohm’s Law

To accurately measure voltage, current, and resistance—and confirm that a circuit behaves according to Ohm’s Law—you’ll need the right tools:

• Digital Multimeter (DMM): This all-in-one device measures voltage, current, and resistance directly. It’s the easiest and most accurate tool for verifying Ohm’s Law in basic circuits.
• Ammeter: Designed specifically to measure current, this tool is especially useful for checking current flow in DC circuits.
• Power Analyzer: A more advanced instrument that measures voltage, current, resistance, and power. It’s ideal for both AC and DC systems.
• Oscilloscope with a Current Probe: Useful when you want to see real-time waveforms of voltage and current, especially in AC circuits or during transient events.
• Shunt Resistor + Oscilloscope: For measuring current indirectly, place a known low-value resistor (shunt) in series with the circuit. Measure the voltage across it and calculate current using I = V / R.

How to Test Ohm’s Law in Practice

1. Build the Circuit

• Connect a known resistor to a variable DC power supply.
• Use precision resistors (with 1% tolerance or better) for accurate, consistent readings.

2. Measure Voltage

• Use a digital multimeter to check the voltage across the resistor.
• If using an oscilloscope, connect probes across both ends of the resistor to view the voltage waveform.

3. Measure Current

• Place a multimeter or ammeter in series with the circuit to get a direct current reading.
• If using an oscilloscope, place a shunt resistor in series, measure the voltage drop across it, and calculate current using the formula: I = Vshunt / Rshunt
• For waveform analysis, use a current probe with the oscilloscope to view current in real time.

4. Adjust and Observe

• Slowly increase or decrease the input voltage. Record the current at each voltage level.
• Plot voltage versus current on a graph. If the circuit obeys Ohm’s Law, the plot will be a straight line. The slope of this line represents resistance: R = V / I

Limitations of Ohm’s Law

While Ohm’s Law is a key principle in electrical engineering, it doesn’t apply in every situation. Several real-world factors can limit its accuracy or usefulness.

1. Non-Ohmic Materials

Some components—like diodes, transistors, and vacuum tubes—don’t follow a simple linear relationship between voltage and current. Unlike standard resistors, their resistance changes depending on the voltage, current, or other conditions.

Because of this, Ohm’s Law can’t be directly applied to these devices. Instead, you need to use more advanced models, such as the diode equation or the transistor operating regions, to describe their behavior accurately.

2. Temperature Effects

Many materials change resistance as temperature changes. For instance:

• Metals typically have a positive temperature coefficient, meaning resistance increases as the temperature goes up.
• Semiconductors and thermistors often have a negative temperature coefficient, meaning their resistance decreases with heat.

In environments where temperature varies significantly, Ohm’s Law may not give reliable results unless temperature effects are taken into account.

3. High-Frequency AC Circuits

In AC circuits—especially at high frequencies—resistance isn’t the only factor that influences current flow. Inductors and capacitors introduce reactance, which combines with resistance to form impedance (Z).

In these situations, Ohm’s Law must be adapted to:
V = I × Z,

where Z includes both resistance and reactance.

At higher frequencies, voltage and current may also shift out of phase, making the analysis more complex and requiring tools like complex impedance and phasor diagrams.

Key Relationships in Ohm’s Law

The following table outlines the essential formulas and units used to calculate electrical quantities using Ohm’s Law:

These relationships allow you to calculate any missing value if you know the other two. They’re the foundation for analyzing and designing electrical circuits.

Conclusion

Ohm’s Law plays a vital role in the analysis, design, and troubleshooting of electrical circuits. By understanding how voltage, current, and resistance are connected, you can choose the right components, identify issues, and improve overall system efficiency.

Whether you're confirming circuit performance or managing power distribution, having the right measurement tools is key.

For accurate, dependable testing, consider using high-quality instruments. Explore JMBom’s Premium Used Equipment Store for certified pre-owned oscilloscopes, spectrum analyzers, multimeters, and function generators—precision tools at a more affordable price.

Frequently Ask Questions

What Are the 3 Ohm’s Law Formulas?

Ohm’s Law can be expressed in three simple equations:

1. Voltage (V) = Current (I) × Resistance (R)
2. Resistance (R) = Voltage (V) ÷ Current (I)
3. Current (I) = Voltage (V) ÷ Resistance (R)

These formulas help you solve for any one value when the other two are known.

What’s the Simplest Way to Understand Ohm’s Law?

Think of Ohm’s Law as:
V = I × R

• V is voltage (the push)
• I is current (the flow)
• R is resistance (the opposition to flow)

If you know how much voltage your battery provides and how much resistance is in the circuit, you can figure out how much current will flow.

What Are the Three Core Ideas Behind Ohm’s Law?

Ohm’s Law is based on the relationship between:

• Voltage: The electrical pressure or force pushing the current
• Current: The flow of electric charge (measured in amps)
• Resistance: The opposition to current (measured in ohms)

The law shows how these three interact: more resistance means less current, more voltage means more current (if resistance stays the same).

How Do You Understand What an “Ohm” Is?

One Ohm (Ω) is the amount of resistance that allows 1 volt to push 1 ampere of current through a conductor.

So:
1 Ω = 1 V / 1 A

This unit is symbolized by the Greek letter Ω (omega) and represents how much a material resists the flow of electricity.

How Can You Calculate Resistance?

There are two common ways:

1. From voltage and current: R = V ÷ I
2. From power and current: R = P ÷ I²

Both methods let you find the resistance depending on which values you already have.
